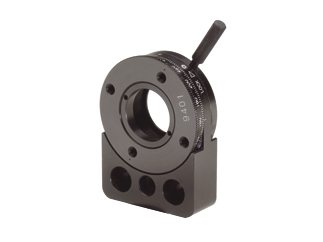

Rotary Mount, 1 inch Waveplates or Polarizers, M4 Thread

Model: 9401-M

$185.00

In Stock

Compare

Add to List

Product Series Overview

In-Line Stackable Optic Rotation Mounts

The 9401-M Metric Rotary Mount is perfect for mounting 1.0 inch diameter wave plates or polarizers. This affordable patented rotary stage gives you 360° rotation and 0.1° resolution with a built-in vernier scale. A removable lever lets you easily make both coarse and fine adjustments. To prevent accidental misalignment, simply remove the lever from the stage. The mount can be installed on an optical post or pedestal with its M4 thread and includes one retaining ring with 1.040-32 thread.

Specifications

Technical Specs

Optic Diameter

25.4 mm
Angular Range

360°
Drive Type

Lever
Sensitivity

0.1°
Clear Aperture

20.6 mm

Thread Type

M4
Material

Aluminum
Retaining Ring Thread

1.040-32

Optic Diameter

25.4 mm
Angular Range

360°
Drive Type

Lever
Sensitivity

0.1°
Clear Aperture

20.6 mm

Thread Type

M4
Material

Aluminum
Retaining Ring Thread

1.040-32

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9401b-Drawing (109.9 kB, PDF)
20029401 (109.7 kB, PDF)
