Linear Polarizer, Polarcor, 10,000:1, 960-1160 nm, 25.4 mm

Polarcor Dichroic Glass Linear Polarizers

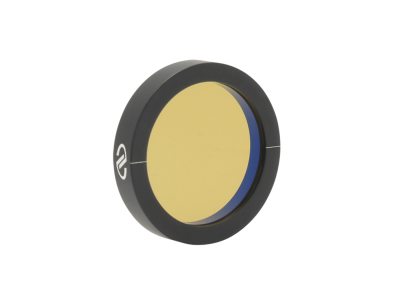

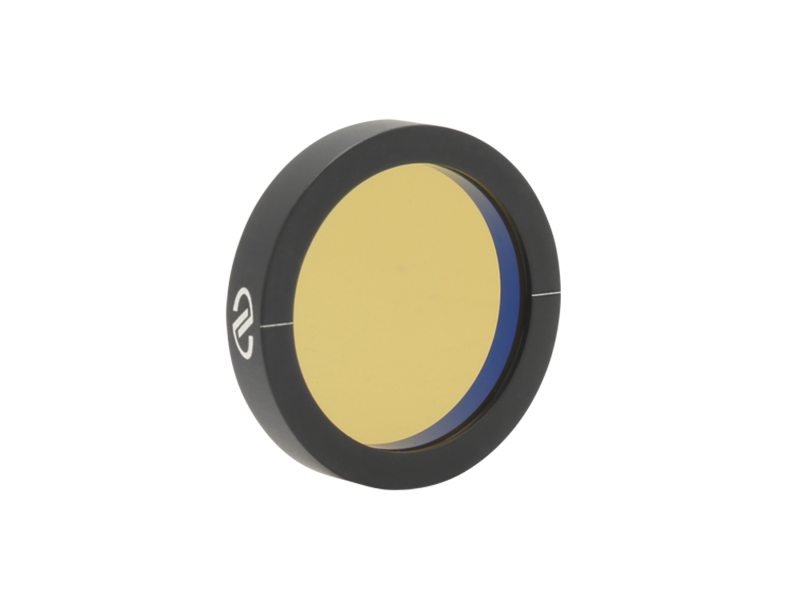

The 10P309AR.16 Polarcor™ Linear Polarizer is a 1 inch (25.4 mm) diameter linear polarizer with an 20.8 mm clear aperture offering 90% principle transmission in the 960 to 1160 nm wavelength range. It features broader bandwidth, higher transmission, higher temperature resistance, better durability, and higher contrast than dichroic sheet or wire grid polarizers. All Polarcor polarizers are broadband antireflection coated to increase transmission of polarized light.

Specifications

Technical Specs

Diameter
25.4 mm
Wavelength Range
960-1160 nm
Material
Polarcor
Polarizing Material
Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm
Extinction Ratio
10000:1
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Efficiency
T_p/T_s >10,000:1; k₁/k₂ >10,000:1 in the specified wavelength range
Clear Aperture
20.8 mm
Diameter Tolerance
±0.1 mm

Transmitted Beam Deviation
≤2.6 arc min

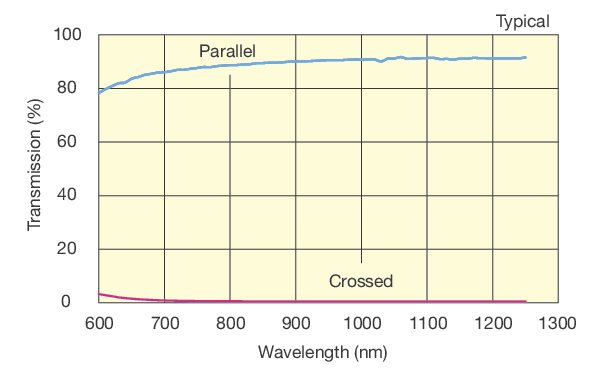

Principal Transmission
k₁ >90%
Acceptance Angle
0-30°
Wedge
≤20 arc sec
Thickness
0.5 mm
Wavefront Distortion
≤ λ/2 at 632.8 nm over the clear aperture
Maximum Temperature
400°C
Cleaning
See How to Clean Optics

Diameter
25.4 mm
Wavelength Range
960-1160 nm
Material
Polarcor
Polarizing Material
Borosilicate glass with aligned silver particles, n=1.523 at 589.3 nm
Extinction Ratio
10000:1
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Efficiency
T_p/T_s >10,000:1; k₁/k₂ >10,000:1 in the specified wavelength range
Clear Aperture
20.8 mm
Diameter Tolerance
±0.1 mm

Transmitted Beam Deviation
≤2.6 arc min
Principal Transmission
k₁ >90%
Acceptance Angle
0-30°
Wedge
≤20 arc sec
Thickness
0.5 mm
Wavefront Distortion
≤ λ/2 at 632.8 nm over the clear aperture
Maximum Temperature
400°C
Cleaning
See How to Clean Optics

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

POLARCOR-S(69 kB, PDF)

Other

10P309AR.16 RoHS Certificate(264.5 kB, PDF)
AR.16 Raw Data.xlsx(100.4 kB, XLSX)
