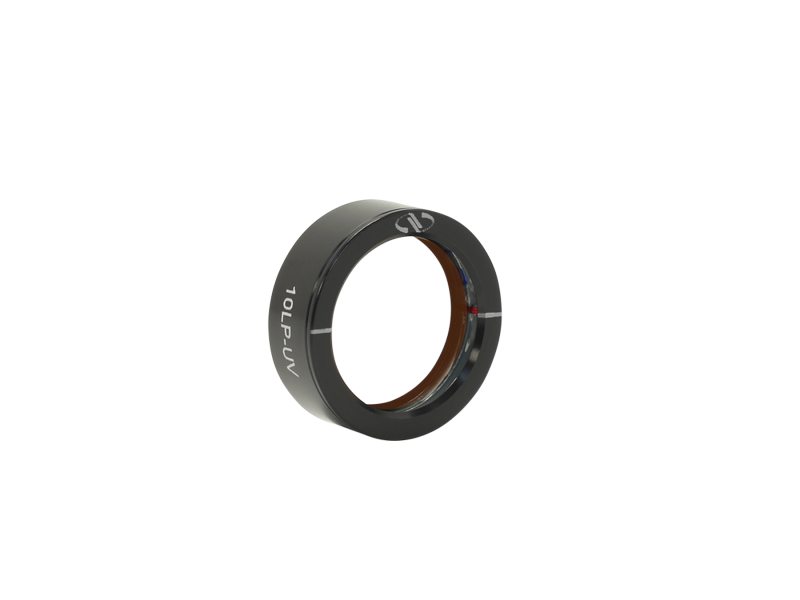

Precision Linear Polarizer, 25.4 mm, 17.8 mm Clear, 310-400 nm

Technical Specs

  • Diameter
    25.4 mm
  • Wavelength Range
    310-400 nm
  • Material
    UV Grade Fused Silica
  • Polarizing Material
    Polymer film
  • Extinction Ratio
    150:1
  • Damage Threshold
    1 W/cm2 CW, 0.2 J/cm2 with 20 nsec pulses, visible, typical
  • Reflectivity
    Ravg <2.0 %, 300-450 nm
  • Surface Quality
    40-20 scratch-dig
  • Clear Aperture
    17.8 mm
  • Diameter Tolerance
    ±0.13 mm
  • Transmitted Beam Deviation
    ≤2 arc min
  • Angle of Incidence
    ±10°
  • Wavefront Distortion
    ≤ λ/2 at 632.8 nm over the clear aperture

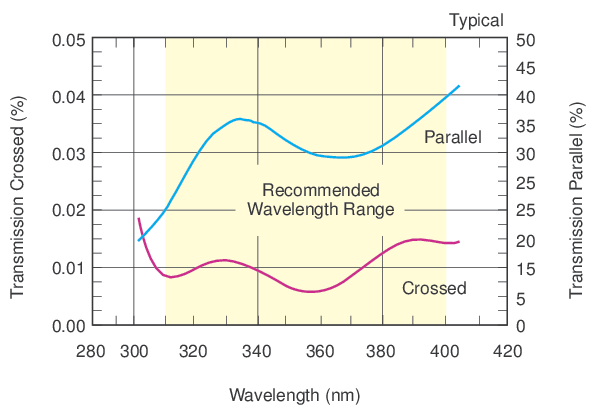

  • Unpolarized Transmission, Parallel Pair
    H0 >6%
  • Unpolarized Transmission, Single
    TT >17%
