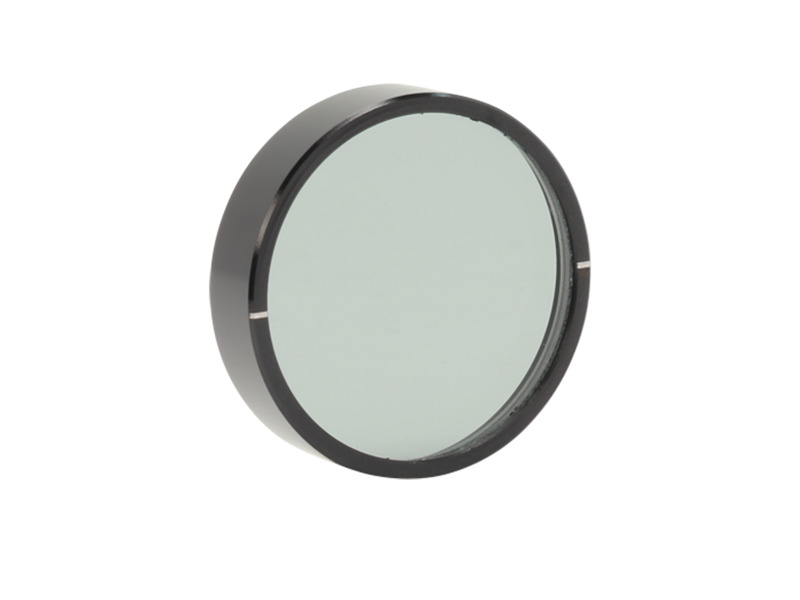

Linear Polarizer, Polarizer Sheet, 4000:1, 450-750 nm, 25.4 mm

The 5511 General Purpose Sheet Polarizer is perfect for those in-between times when you need a polarizer with a large aperture and acceptance angle, but you don't need the high extinction ratio (or the expense) of a calcite polarizer. The laminated structure of these polarizers makes them durable and perfect for low-power applications. The convenient 1.0 inch outer diameters of the holders fit in standard 1.0 inch mounts, including our rotary stages. Wavelength range is 450-750 nm.

Specifications

Technical Specs

Diameter
25.4 mm
Wavelength Range
450-750 nm
Material
B270
Polarizing Material
Polarizer Film AP32-015T
Extinction Ratio
4000:1
Damage Threshold
10 W/cm² (cw), 75 mJ/cm² (20-ns pulse)
Surface Quality
60-40 scratch-dig

Surface Flatness
≤4λ at 633 nm
Clear Aperture
22.6 mm
Transmitted Beam Deviation
0.3 mrad
Unpolarized Transmission, Single
0.32

Diameter
25.4 mm
Wavelength Range
450-750 nm
Material
B270
Polarizing Material
Polarizer Film AP32-015T
Extinction Ratio
4000:1
Damage Threshold
10 W/cm² (cw), 75 mJ/cm² (20-ns pulse)
Surface Quality
60-40 scratch-dig

Surface Flatness
≤4λ at 633 nm
Clear Aperture
22.6 mm
Transmitted Beam Deviation
0.3 mrad
Unpolarized Transmission, Single
0.32
