Compare Model Drawings, CAD & Specs Availability Price
LPXY-05H
Lens Positioner, 0.5 in. Diameter, XY, 100 TPI, 8-32 THD
$164
Contact Us
 LPXY-05H Lens Positioner, 0.5 in. Diameter, XY, 100 TPI, 8-32 THD
Contact Us
 $164
M-LPXY-05H
Lens Positioner, 0.5 in. Diameter, XY, 100 TPI, M4 THD
$164
Contact Us
 M-LPXY-05H Lens Positioner, 0.5 in. Diameter, XY, 100 TPI, M4 THD
Contact Us
 $164
LPXYZ-05H
Lens Positioner, 0.5 in. Diameter, XYZ, 100 TPI, 8-32 THD
$211
In Stock
 LPXYZ-05H Lens Positioner, 0.5 in. Diameter, XYZ, 100 TPI, 8-32 THD
In Stock
 $211
M-LPXYZ-05H
Lens Positioner, 0.5 in. Diameter, XYZ, 100 TPI, M4 THD
$211
In Stock
 M-LPXYZ-05H Lens Positioner, 0.5 in. Diameter, XYZ, 100 TPI, M4 THD
In Stock
 $211
LPXYR-05H
Lens Positioner, 0.5 in. Diameter, XYθZ, 100 TPI, 8-32 THD
$215
In Stock
 LPXYR-05H Lens Positioner, 0.5 in. Diameter, XYθZ, 100 TPI, 8-32 THD
In Stock
 $215
M-LPXYR-05H
Lens Positioner, 0.5 in. Diameter, XYθZ, 100 TPI, M4 THD
$215
In Stock
 M-LPXYR-05H Lens Positioner, 0.5 in. Diameter, XYθZ, 100 TPI, M4 THD
In Stock
 $215
LP5X-05H
Lens Positioner, 0.5 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR
$301
In Stock
 LP5X-05H Lens Positioner, 0.5 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR
In Stock
 $301
LP6X-05H
Lens Positioner, 0.5 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR
$338
In Stock
 LP6X-05H Lens Positioner, 0.5 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR
In Stock
 $338
LPXY-1H
Lens Positioner, 1.0 in. Diameter, XY, 100 TPI, 8-32 THD
$165
In Stock
 LPXY-1H Lens Positioner, 1.0 in. Diameter, XY, 100 TPI, 8-32 THD
In Stock
 $165
M-LPXY-1H
Lens Positioner, 1.0 in. Diameter, XY, 100 TPI, M4 THD
$165
In Stock
 M-LPXY-1H Lens Positioner, 1.0 in. Diameter, XY, 100 TPI, M4 THD
In Stock
 $165
LPXYZ-1H
Lens Positioner, 1.0 in. Diameter, XYZ, 100 TPI, 8-32 THD
$247
Contact Us
 LPXYZ-1H Lens Positioner, 1.0 in. Diameter, XYZ, 100 TPI, 8-32 THD
Contact Us
 $247
M-LPXYZ-1H
Lens Positioner, 1.0 in. Diameter, XYZ, 100 TPI, M4 THD
$247
In Stock
 M-LPXYZ-1H Lens Positioner, 1.0 in. Diameter, XYZ, 100 TPI, M4 THD
In Stock
 $247
LPXYR-1H
Lens Positioner, 1.0 in. Diameter, XYθZ, 100 TPI, 8-32 THD
$253
In Stock
 LPXYR-1H Lens Positioner, 1.0 in. Diameter, XYθZ, 100 TPI, 8-32 THD
In Stock
 $253
M-LPXYR-1H
Lens Positioner, 1.0 in. Diameter, XYθZ, 100 TPI, M4 THD
$253
In Stock
 M-LPXYR-1H Lens Positioner, 1.0 in. Diameter, XYθZ, 100 TPI, M4 THD
In Stock
 $253
LP5X-1H
Lens Positioner, 1.0 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR
$299
In Stock
 LP5X-1H Lens Positioner, 1.0 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR
In Stock
 $299
LP6X-1H
Lens Positioner, 1.0 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR
$338
3 Weeks
 LP6X-1H Lens Positioner, 1.0 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR
3 Weeks
 $338
LPXY-2H
Lens Positioner, 2.0 in. Diameter, XY, 100 TPI, 8-32 THD
$188
3 Weeks
 LPXY-2H Lens Positioner, 2.0 in. Diameter, XY, 100 TPI, 8-32 THD
3 Weeks
 $188
M-LPXY-2H
Lens Positioner, 2.0 in. Diameter, XY, 100 TPI, M4 THD
$188
In Stock
 M-LPXY-2H Lens Positioner, 2.0 in. Diameter, XY, 100 TPI, M4 THD
In Stock
 $188
LPXYR-2H
Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, 8-32 THD
$313
In Stock
 LPXYR-2H Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, 8-32 THD
In Stock
 $313
M-LPXYR-2H
Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, M4 THD
$313
In Stock
 M-LPXYR-2H Lens Positioner, 2.0 in. Diameter, XYθZ, 100 TPI, M4 THD
In Stock
 $313
LP5X-2H
Lens Positioner, 2.0 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR
$362
In Stock
 LP5X-2H Lens Positioner, 2.0 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR
In Stock
 $362
LP6X-2H
Lens Positioner, 2.0 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR
$578
In Stock
 LP6X-2H Lens Positioner, 2.0 in. Diameter, XYZθXθYθZ, 100 TPI, 8-32 (M4) CLR
In Stock
 $578

Features

Two, Three, Five or Six Axes of Positioning

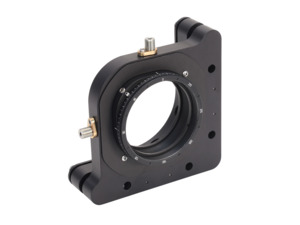

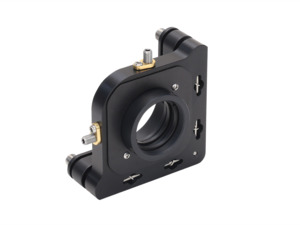

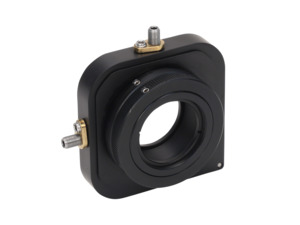

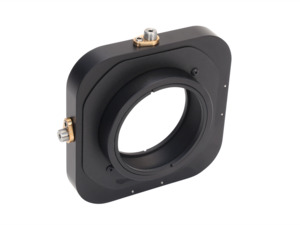

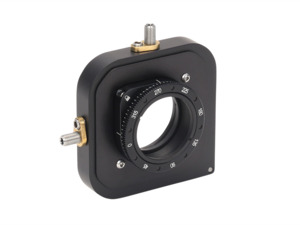

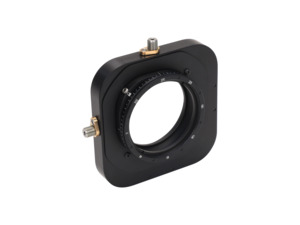

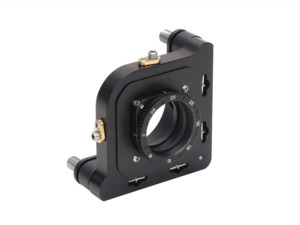

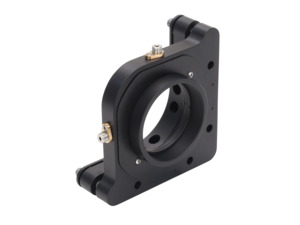

Our new LP Series Lens Positioners provide an economical solution for applications requiring two (XY), three (XYZ or XYθZ), five (XYZ θXθY), or six (XYZ θXθYθZ) axes of precision adjustment. They all feature

  • Multi-axis precision adjustment in a space-saving geometry
  • Hex-key adjuster to prevent unintended adjustment
  • All axes lockable for added long-term stability
  • Keying pin holes for OEM applications
  • Dual mounting holes for left- or right-handed configurations

Lockable Hex-Key Adjusters

The LP Series Lens Positioners use hex-key adjusters to save space and prevent unintended adjustments. Independent locks for each axis securely lock the adjustment screws, maintaining stable optical alignment. The adjuster and its lock feature the same sized hex oriented in the same direction, therefore can be conveniently accessed and actuated by the same hex tool (shown here is hex adjustment knob HX.078-2M-PK).

Alignment Pin Holes

Designed with OEM applications in mind, these lens positioners include alignment pin holes adjacent to mounting holes. These dowel pin holes enable keying of the position and orientation for repeatable system integration and to prevent clocking effects. (Note: Dowel pins are not included with the mount.)

Compatible with Lens Tube System

Besides holding 0.5, 1.0, or 2.0 in. diameter optic with included retaining rings, the LP Series Lens Positioners are also directly compatible with optomechanical components with SM05 (0.535"-40), SM1 (1.035"-40), or SM2 (2.035"-40) threads. Shown are the LP5X positioners attaching LT Series Lens Tubes.

Compatible with Beamsplitters Holders

New BSP025 and BSP05 beamsplitter holders can directly thread into LP-1H positioners to hold 0.25 and 0.5 in. cube beamsplitters. To mount a 1.0 in. beamsplitter, two adapters LT20-LX and LT-20-BS1 are needed to attach the CH-1 holder to an LP-2H positioner.

Compatible with Microscope Objectives

With LT10-RMS-N RMS to SM1 thread adapter, the LP-1H lens positioners can hold any microscope objective lens with standard RMS (0.800"-36) thread.
