Objective Lens & Pinhole Precision XY Positioners

Products
Specifications
Features
Resources
Contact Us

Overview

The SB18YZ Optic Mount, with its RMS threading, is ideally suited for precisely positioning any RMS-threaded optical element in a plane perpendicular to the optical axis, and is a very popular choice for positioning in spatial filters. The mount accepts any M20.25/RMS-threaded pinhole, microscope objective or lens.

Ideal for pinhole or objective positioning in spatial filters
RMS mounting threads
Standard differential or locking drives
Compatible with X26 optical rails

See All Features

Products

Show entries

Search:

Compare	Model	Adjustment Type	Thread Type	Availability	Price	Brand
SB18YZBD XY Optic Positioner, Precision, BD Differential Micrometers $1,492 In Stock	SB18YZBD XY Optic Positioner, Precision, BD Differential Micrometers	BD Differential Micrometer	RMS	In Stock	$1,492	Newport
SB18YZBHC XY Optic Positioner, Precision, BHC Lockable Adjustment Screws $870 In Stock	SB18YZBHC XY Optic Positioner, Precision, BHC Lockable Adjustment Screws	BHC Lockable Adjustment Screws	RMS	In Stock	$870	Newport
SB18YZBM XY Optic Positioner, Precision, BM Micrometers $1,088 In Stock	SB18YZBM XY Optic Positioner, Precision, BM Micrometers	BM Series Micrometers	RMS	In Stock	$1,088	Newport
SB18YZN XY Optic Positioner, Precision, Actuators Not Included $582 In Stock	SB18YZN XY Optic Positioner, Precision, Actuators Not Included	Actuators Not Included	RMS	In Stock	$582	Newport

Showing 1 to 4 of 4 entries

Previous1Next

Specifications

Search:

Models	SB18YZBD Model: SB18YZBD XY Optic Positioner, Precision, BD Differential Micrometers $1,492 In Stock See Full Product Details Product Series Overview Objective Lens Precision XY Positioners	SB18YZBHC Model: SB18YZBHC XY Optic Positioner, Precision, BHC Lockable Adjustment Screws $870 In Stock See Full Product Details Product Series Overview Objective Lens Precision XY Positioners	SB18YZBM Model: SB18YZBM XY Optic Positioner, Precision, BM Micrometers $1,088 In Stock See Full Product Details Product Series Overview Objective Lens Precision XY Positioners	SB18YZN Model: SB18YZN XY Optic Positioner, Precision, Actuators Not Included $582 In Stock See Full Product Details Product Series Overview Objective Lens Precision XY Positioners
Type	Objective Lens Mount	Objective Lens Mount	Objective Lens Mount	Objective Lens Mount
Objective Lens Thread	RMS	RMS	RMS	RMS
Thread Type	RMS	RMS	RMS	RMS
Use	Objective Lenses & Pinholes	Microscope objectives & pinholes	Microscope objectives & pinholes	Microscope objectives & pinholes
Adjustments	XY	XY	XY	XY
Adjustment Type	BD Differential Micrometer	BHC Lockable Adjustment Screws	BM Series Micrometers	Actuators Not Included
Sensitivity	0.1 µm	1.4 µm	1 µm
Travel, X	±2 mm	±2 mm	±2 mm
Travel, Y	±2 mm	±2 mm	±2 mm

Showing 1 to 9 of 9 entries

Features

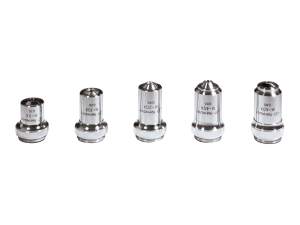

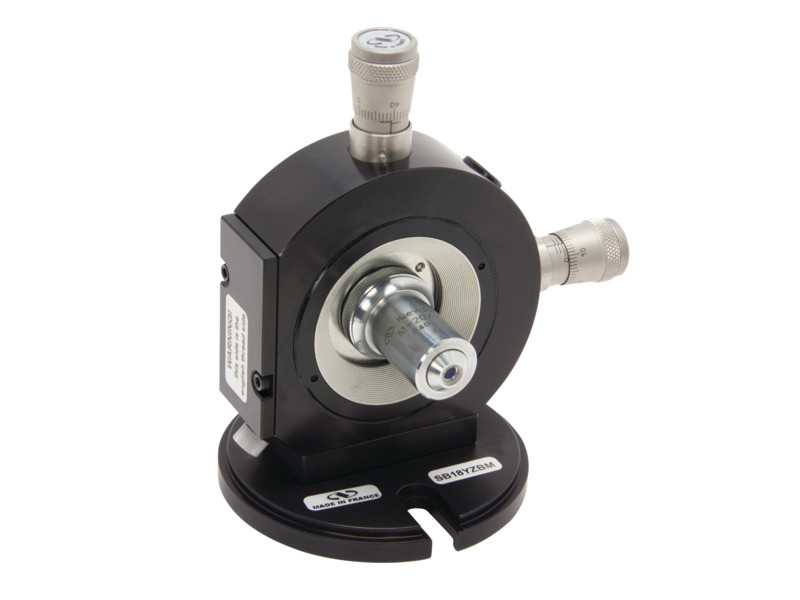

RMS Mounting Thread

The RMS thread on the SB18YZ conveniently holds RMS-threaded microscope objectives or pinholes.

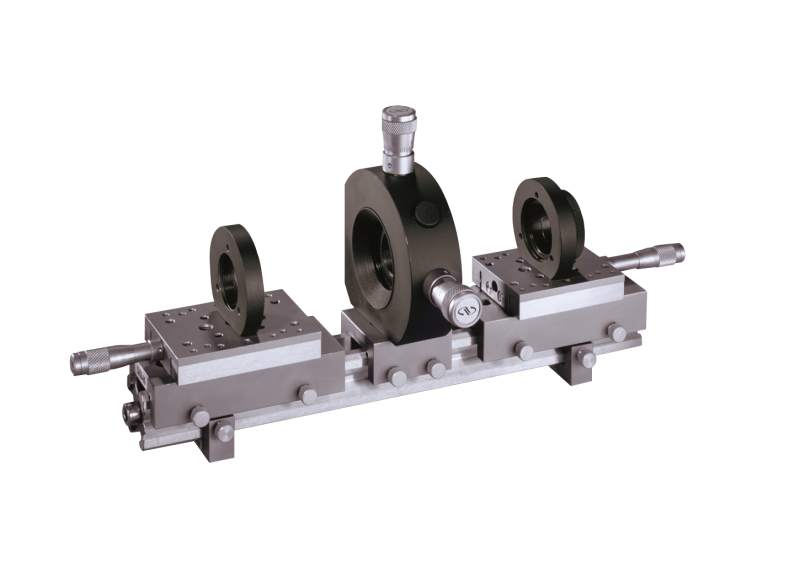

Ideally Suited for Spatial Filters

A spatial filter can be constructed by the SB18YZ Precision XY Positioner with PNH pinhole, UMR linear stages, X26 series four-sided optical rail, rail carriers and rail mounts.

Choice of Actuators

The SB18YZ Optic Mount is available with ±2 mm travel Hex Screws, Micrometers, or Differential Micrometers. BM Micrometer drives deliver 1 µm sensitivity. Short-focal-length pinhole focusing applications benefit from the 0.1 µm sensitivity of BD Differential Micrometers. BHC Lockable Adjustment Screws fix the optic in position to prevent inadvertent misadjustment.

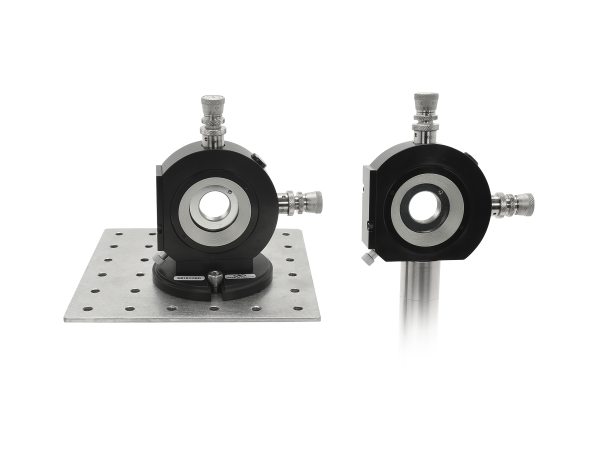

Table or Post Mounting

The Objective Lens & Pinhole Precision Positioners can directly be mounted to optical tables using the slotted base, which can be removed if space is limited, or to an optical post. To mount to an optical post, the base and the riser need to be removed to expose a 1/4-20 (M6) threaded hole at the bottom of the mount.

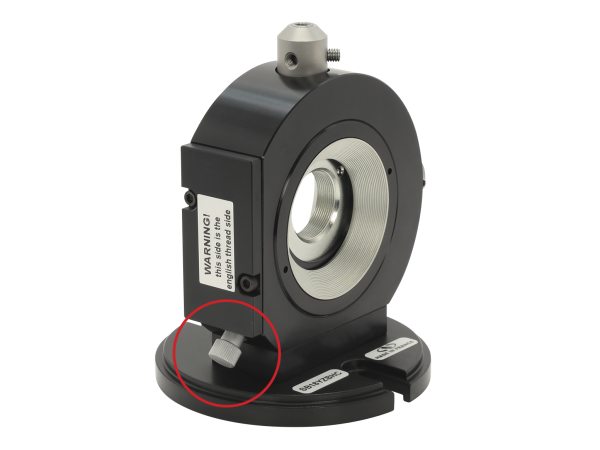

Locking Actuators

For long-term stability, all Newport’s Objective Lens & Pinhole Precision XY Positioners feature lockable actuators. To lock the actuators, simply tighten the knob at the corner of the mount to prevent unintended adjustments.

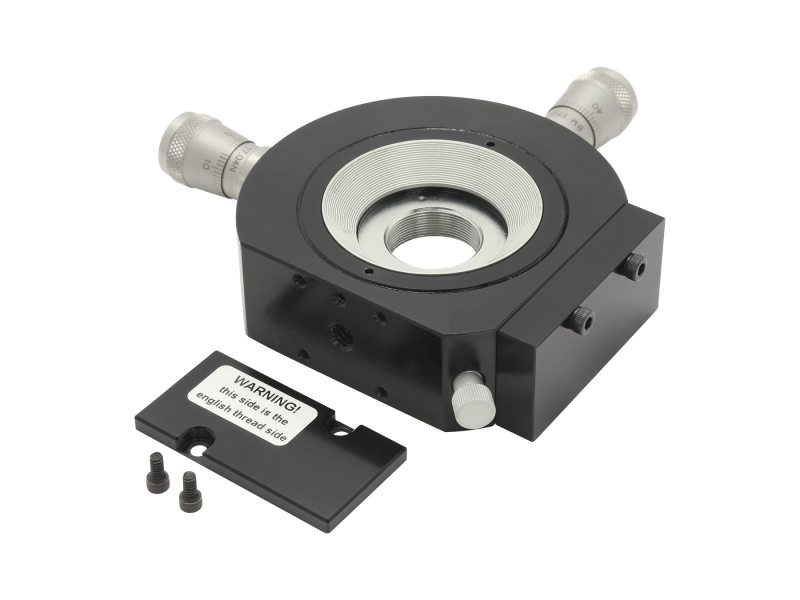

Imperial and Metric Mounting Holes

The Objective Lens & Pinhole Precision XY Positioners are compatible with both imperial and metric systems. The bottom of the mount is equipped with a central M6 threaded hole and four M3 threaded holes in 20 mm square. Simply removing the plate on the side of the mount will grant access to 1/4-20 and 4-40 threaded holes in similar pattern.
