Compare Model Drawings, CAD & Specs Type Thread Type Optic Diameter Optical Axis Height Mounting Threads Availability Price
SJ25.4
$444
SJ25.4 Kinematic Mirror Mount 25.4 mm 19.5 or 32.5 mm 4-40 & 1/4-20 $444
M-SJ25.4
$444
In Stock
 M-SJ25.4 Kinematic Mirror Mount 25.4 mm 19.5 or 32.5 mm M3 & M6
In Stock
 $444
CB26.18
$199
In Stock
 CB26.18 Lens Barrel Holder M20.25 RMS 40 mm Direct Rail Mount
In Stock
 $199
CB26.25.4
$199
In Stock
 CB26.25.4 Lens Barrel Holder M30 x 0.75 40 mm Direct Rail Mount
In Stock
 $199
SB19.18
$230
In Stock
 SB19.18 Objective Lens Mount 0.800-36 19.5 mm 4-40 & 1/4-20
In Stock
 $230
M-SB19.18
$230
M-SB19.18 Objective Lens Mount M20.25 RMS 19.5 mm M3 & M6 $230
SB19.25.4
$230
SB19.25.4 Lens Mount M30 x 0.75 19.5 mm 4-40 & 1/4-20 $230
M-SB19.25.4
$230
In Stock
 M-SB19.25.4 Lens Mount M30 x 0.75 19.5 mm M3 & M6
In Stock
 $230
SB32.18
$226
Contact Us
 SB32.18 Objective Lens Mount 0.800-36 32.5 mm 4-40 & 1/4-20
Contact Us
 $226
SB32.25.4
$245
Contact Us
 SB32.25.4 Lens Mount M30 x 0.75 32.5 mm 4-40 & 1/4-20
Contact Us
 $245
M-SB32.25.4
$245
M-SB32.25.4 Lens Mount M30 x 0.75 32.5 mm M3 & M6 $245
SB32.50
$313
Contact Us
 SB32.50 Lens Mount M55 x 0.75 32.5 mm 4-40 & 1/4-20
Contact Us
 $313
M-SB32.50
$313
In Stock
 M-SB32.50 Lens Mount M55 x 0.75 32.5 mm M3 & M6
In Stock
 $313
B6.35
$102
Contact Us
 B6.35 Lens Mount Barrel M20.25 RMS 6.35 mm
Contact Us
 $102
B12.7
$111
In Stock
 B12.7 Lens Mount Barrel M20.25 RMS 12.7 mm
In Stock
 $111
B18-15.5
$111
In Stock
 B18-15.5 Lens Mount Barrel M20.25 RMS 18 mm
In Stock
 $111
B18-26
$126
In Stock
 B18-26 Long Lens Mount Barrel M20.25 RMS 18 mm
In Stock
 $126
B20-RMS
$167
In Stock
 B20-RMS Focusing Lens Mount Barrel M20.25 RMS 20 mm
In Stock
 $167
B25.4-F
$93
In Stock
 B25.4-F Lens Mount Barrel M20.25 RMS 25.4 mm
In Stock
 $93
B25.4
$134
In Stock
 B25.4 Lens Mount Barrel M30 x 0.75 25.4 mm
In Stock
 $134
B25.4-RT
$167
Contact Us
 B25.4-RT Rotary Lens Mount Barrel M30 x 0.75 25.4 mm
Contact Us
 $167
B38.1
$152
Contact Us
 B38.1 Lens Mount Barrel M45 x 0.75 38.1 mm
Contact Us
 $152
B50
$185
In Stock
 B50 Lens Mount Barrel M55 x 0.75 50 mm
In Stock
 $185
B50.8
$218
In Stock
 B50.8 Lens Mount Barrel M55 x 0.75 50.8 mm
In Stock
 $218
B76.2
$218
In Stock
 B76.2 Lens Mount Barrel M85 x 0.75 76.2 mm
In Stock
 $218
TSJ
$230
In Stock
 TSJ Rotating Base 4-40 & 1/4-20
In Stock
 $230
M-TSJ
$230
M-TSJ Rotating Base M3 & M6 $230

Features

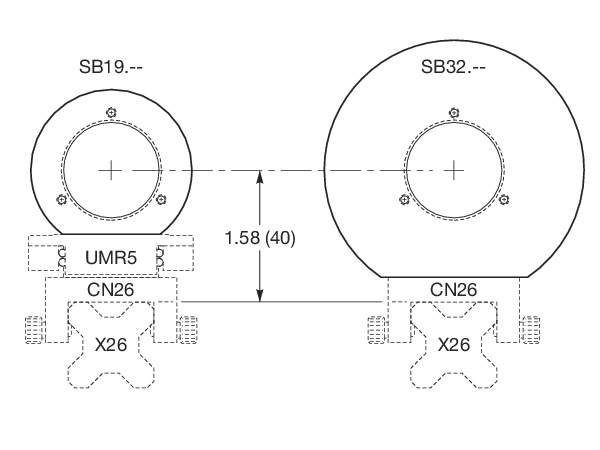

SB Series Lens Barrel Holders

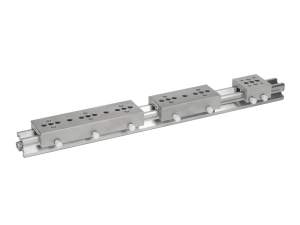

SB Series Lens Barrel Holders are available to mount all sizes of B Series Lens Mount Barrels or mirrors on a post or in the X26 rail system. SB19 is compatible with B25.4 . The standard optical axis height for SB19 is 19.5 mm. These holders should be mounted to UMR5 Series Linear Stages on top of CN26 Carriers to maintain the normal 40 mm optical axis height of the X26 rail system. The SB32 accepts the 18 to 50.8 mm size barrels. It can be directly fixed to the CN26 Carriers and will have a 40 mm center height above the rail. SB19 and SB32 are delivered with three screws, three washers, and a retaining ring that permits direct assembly of mirrors and other optics.

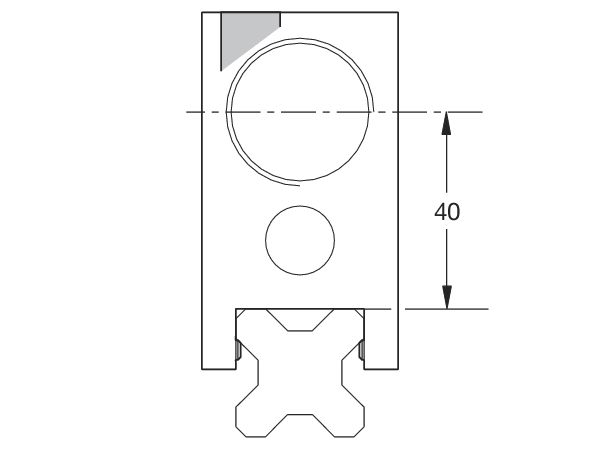

CB Series Lens Barrel Holders

CB Series Lens Barrel Holders provide a means of holding B Series Lens Mount Barrels for up to 50.8 mm diameter lenses on the X26 rail system at an optical axis height of 40 mm above the rail. The CB26 with smaller thread diameter have a 14 mm diameter hole to enable the micrometer on a linear stage to pass through, allowing components to be mounted closer together.

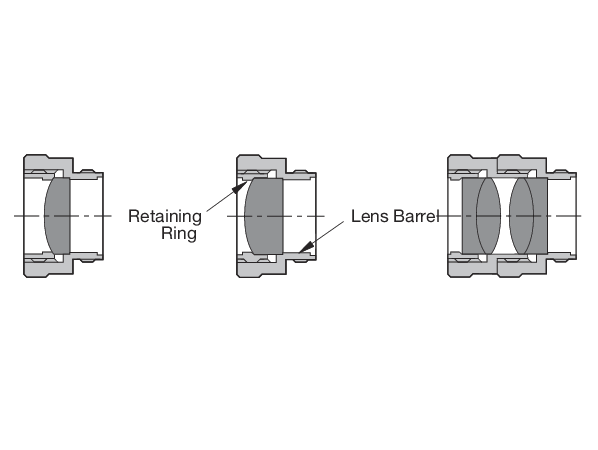

B Series Lens Mount Barrel

The B Series Lens Mount Barrel can be used to create optical systems by mounting it to X26 Rails and Carriers via SB or CB Series Lens Barrel Holders. The lens barrels consist of a threaded body for mounting into the holders, and a retaining ring for mounting the optic. When screwed together, the lens is securely held in place. For thick lenses, the retaining ring is reversible. Two or more lens barrels can be threaded end-to-end to construct simple optical systems.

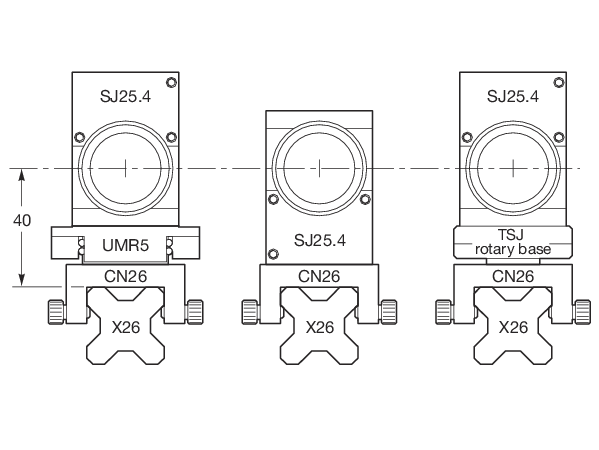

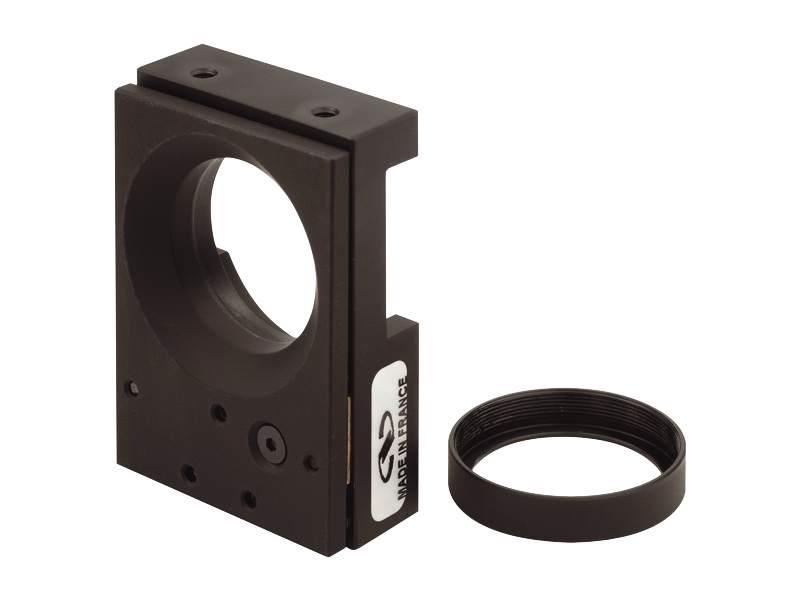

SJ Series Mirror Mounts

Our SJ Series Kinematic Mirror Mount are designed for use with the X26 optical rail system. The mount provides accurate positioning of 1 inch (25.4 mm) diameter mirrors or beamsplitters with a thickness of 0.157 to 0.315 inch (4 to 8 mm). A large clear aperture at 45° is useful for beamsplitting applications. Precision adjustment screws provide ±1° tip/tilt for the alignment of mirrors. The addition of the optional TSJ Rotating Base allows coarse 360° positioning of the mount.

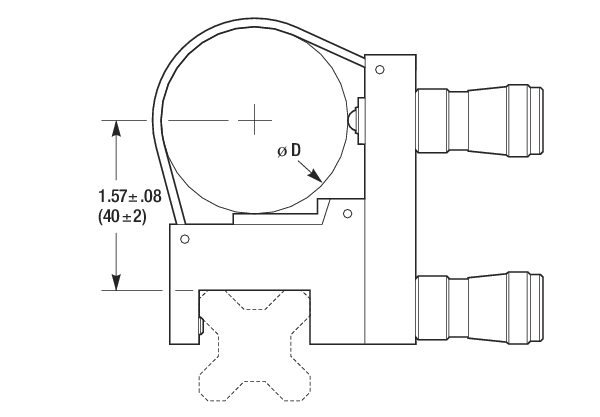

CT Series Cylindrical Laser Mounts

CT26 cylindrical mounts are used to accurately position cylindrical lasers on the X26 rail system. Two mounts are recommended for each tube to enable 0.16 in. (4 mm) of stable XY and tip/tilt adjustment. These mounts are very useful for laboratory applications and remain highly rigid and stable for a long period of time. The laser is held firmly against a reference block by a spring that wraps around the tube. The beam height is 40 mm, common with the X26 rail system. Lateral sensitivity is on the order of the BM actuator sensitivity.
