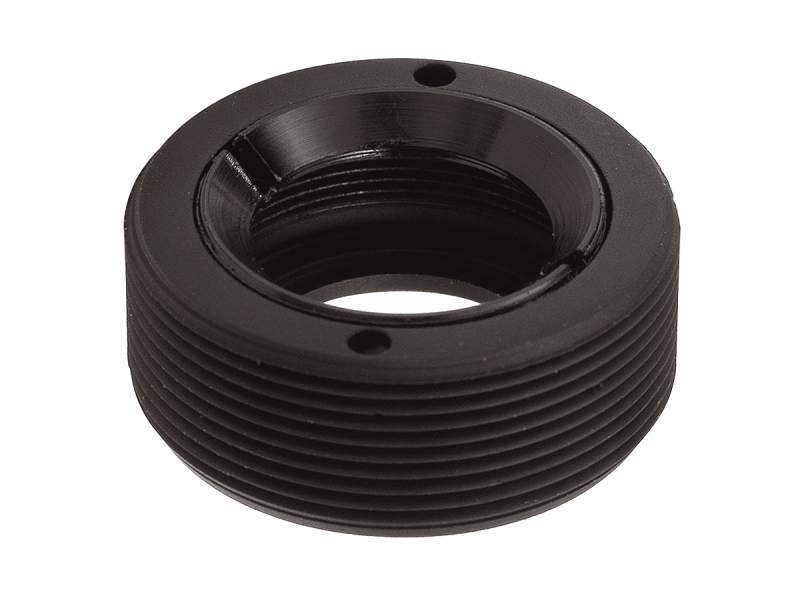

Lens Mount Barrel, 12.7 mm, M20.25 RMS Lens Mounts
Lens Mount Barrel, 12.7 mm, M20.25 RMS Lens Mounts
Model: B12.7
In Stock
Product Series Overview
26 mm Optical Rail MountsThe B12.7 Lens Mount Barrel can be used to create optical systems by mounting it to X26 Rails and Carriers via SB or CB Series Lens Barrel Holders. The lens barrels consist of a M20.25 RMS threaded body for mounting into B18 Series Lens Mount Barrels, and a retaining ring for 12.7 mm diameter lenses. When screwed together, the lens is securely held in place. For thick lenses, the retaining ring is reversible. Two or more lens barrels can be threaded end-to-end to construct simple optical systems. Several accessories are provided to assist in creating optical systems.
Resources & Downloads
2D Product Drawings
B Barrels Small-S(73.2 kB, PDF)
Other
B12.7_RoHS2021.pdf(286.1 kB, PDF)
