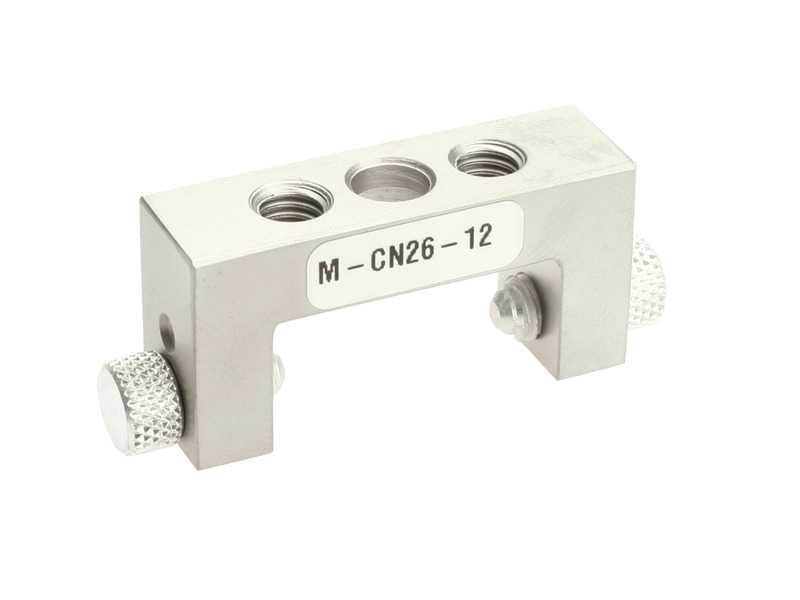

Optical Rail Carrier, 12 mm Length, M6 Thread, X26 Series

Optical Rail Carrier, 12 mm Length, M6 Thread, X26 Series

Model: M-CN26-12

$74

In Stock

Compare

Add to List

Product Series Overview

26 mm Optical Rail Carriers

The M-CN26-12 Metric Rail Carrier mounts to all four sides of a X26 Rail. It is 12 mm long with M6 holes. It can be used as an index block or rail foot.

Specifications

Technical Specs

Type

Carrier
Material

Steel
Height

20.5 mm

Length

12 mm
Width

40 mm

Type

Carrier
Material

Steel
Height

20.5 mm

Length

12 mm
Width

40 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

CN26-12-S (82.2 kB, PDF)
