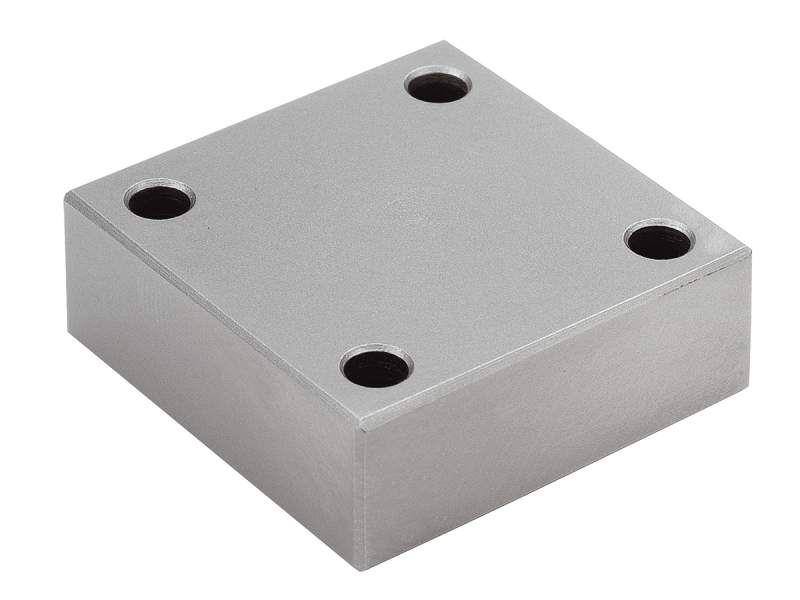

Spacer Block, For CN26C 90° Rail Carrier

Spacer Block, For CN26C 90° Rail Carrier

Model: RH-40

$41

Show

Compare

Add to List

Product Series Overview

26 mm Optical Rail Carriers

The RH-40 Spacer Block works with the CN26C 90° Carrier on an X26 Optical Rail.

Specifications

Technical Specs

Type

Spacer Block for 90° Carrier
Material

Steel
Height

10.5 mm

Length

28 mm
Width

28 mm

Type

Spacer Block for 90° Carrier
Material

Steel
Height

10.5 mm

Length

28 mm
Width

28 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

RH-40-S (73 kB, PDF)
