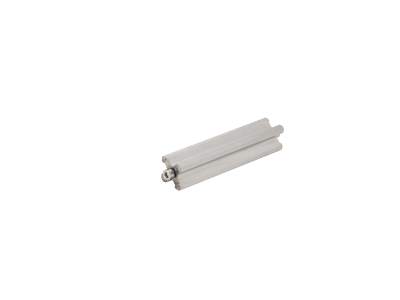

Optical Rail, Stainless Steel, 128 mm Length, 26 mm Width, M6

Model: X26-128

$210

In Stock

Compare

Add to List

Product Series Overview

26 mm Steel Four-Sided Optical Rails

The X26-128 Stainless Steel Optical Rail is an excellent choice for construction of precision optical systems such as spatial filters, interferometers, collimators, and microscopes. This 128 mm length rail with an M6 hole on each end can be fixed to optical tables by using CN26-12 Carriers upside down as rail feet. Carriers can easily be fixed to any of the four sides of the symmetrical cross-shaped rail providing four parallel work surfaces. Dovetail construction enables fast, easy mounting and secure clamping of carriers at any point along the rail without removing other components. Compatible optical mounts, which include SL Series Gimbal Optical Mounts, SB Series Optic and Lens Barrel Mounts, and SB18YZ Series Lens Positioners, are provided a common optical axis height of 40 mm above the rail surface.

Specifications

Technical Specs

Type

Four Sided Optical Rail
Rail Length

128 mm
Material

Stainless Steel
Height

26 mm

Length

128 mm
Width

26 mm

Type

Four Sided Optical Rail
Rail Length

128 mm
Material

Stainless Steel
Height

26 mm

Length

128 mm
Width

26 mm
