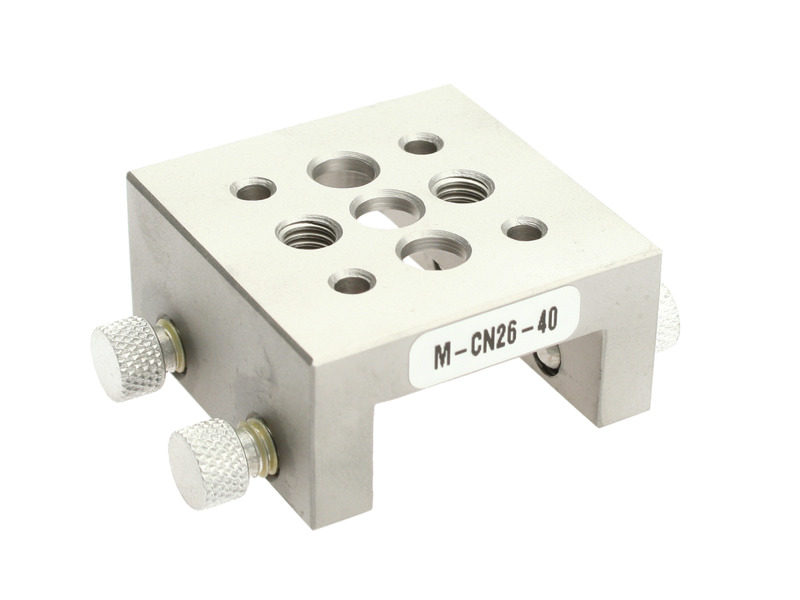

Optical Rail Carrier, 40 mm Length, M6 Thread, X26 Series

Optical Rail Carrier, 40 mm Length, M6 Thread, X26 Series

Model: M-CN26-40

$133

In Stock

Compare

Add to List

Product Series Overview

26 mm Optical Rail Carriers

The M-CN26-40 Metric Rail Carrier mounts to all four sides of a X26 Rail. It is 40 mm long with M6 holes.

Specifications

Technical Specs

Type

Carrier
Material

Steel
Height

20.5 mm

Length

40 mm
Width

40 mm

Type

Carrier
Material

Steel
Height

20.5 mm

Length

40 mm
Width

40 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

CN26-40 DWG-S (89.4 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL		In Stock	$19.40
		BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL		In Stock	$35
		M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC		In Stock	$38
		RH-40 Spacer Block, For CN26C 90° Rail Carrier	UNIVERSAL		Show	$41
		M-SK-M6A Black Oxide Screw Kit, M6, Assortment, Qty 261	UNIVERSAL		In Stock	$72

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-CN26-140 Optical Rail Carrier, 140 mm Length, M6 Thread, X26 Series	METRIC		In Stock	$372
		CPT26.12 Optical Post Carrier, SP Series Post, X26 Series Rail	UNIVERSAL		Show	$103
		M-CN26-12 Optical Rail Carrier, 12 mm Length, M6 Thread, X26 Series	METRIC		In Stock	$74
		CN26-40 Optical Rail Carrier, 40 mm Length, 1/4-20 Thread, X26 Series	IMPERIAL		In Stock	$133
		M-CN26-90 Optical Rail Carrier, 90 mm Length, M6 Thread, X26 Series	METRIC		In Stock	$196

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		X26-192 Optical Rail, Stainless Steel, 192 mm Length, 26 mm Width, M6	UNIVERSAL		In Stock	$266
		X26-256 Optical Rail, Stainless Steel, 256 mm Length, 26 mm Width, M6	UNIVERSAL		In Stock	$363
		X26-512 Optical Rail, Stainless Steel, 512 mm Length, 26 mm Width, M6	UNIVERSAL		In Stock	$539
		X26-128 Optical Rail, Stainless Steel, 128 mm Length, 26 mm Width, M6	UNIVERSAL		In Stock	$210
		X26-384 Optical Rail, Stainless Steel, 384 mm Length, 26 mm Width, M6	UNIVERSAL		In Stock	$461
