Micrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load
Micrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load
Model: BM11.16
Product Series Overview

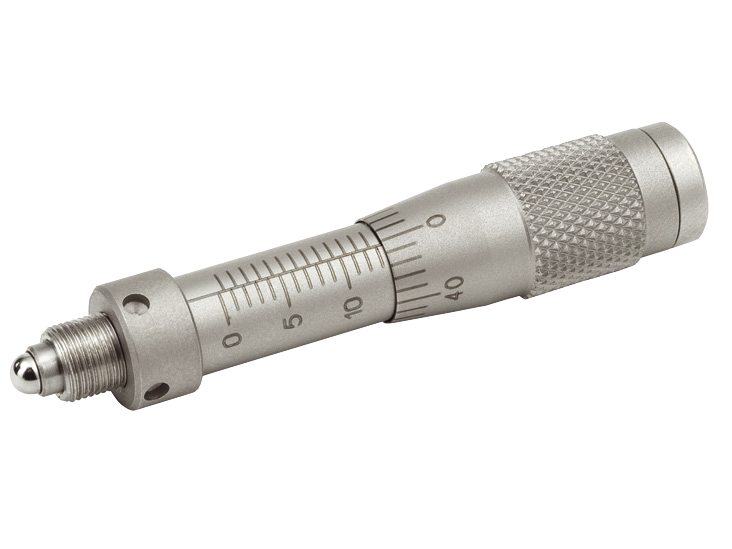

BM Thread-Mount Micrometer HeadsThe BM11.16 Micrometer features micron-scale resolution and very smooth motion for precision positioning applications. It has a 16 mm travel range and with axial load capacity of 40 N. BM micrometers, which mount via their threaded bezel and are held in place with a threaded collar, are the standard choice of actuator on UMR and MVN Series Stages and on SL Series Mirror Mounts.
Not Just for UMR & MVN Series Stages
Although these micrometers are the standard choice of actuator on UMR and MVN series Stages, their threaded bezel allows them to be used in a variety of applications where precise positioning is required.
Threaded Lock Collar Advantages
The threaded collar found on all BM Series micrometers not only allows easy front-side installation, it also allows the user to fine tune the distance between the micrometer's tip and the contact point.
Compatible Newport Stages & Mounts
BM Series Micrometers are compatible with the following manual stages and mounts.
- UMR3 Series
- UMR5 Series
- UMR8 Series
- UMR12 Series
- MVN Series
- TGN Series
- SL Series
- SL-A Series
Resources & Downloads
2D Product Drawings
BM Series DWG-S(101.2 kB, PDF)
Other
BM11.16 RoHS Certificate(282.9 kB, PDF) REACH Supplier Statement - BM Micrometer.pdf(513.4 kB, PDF)
