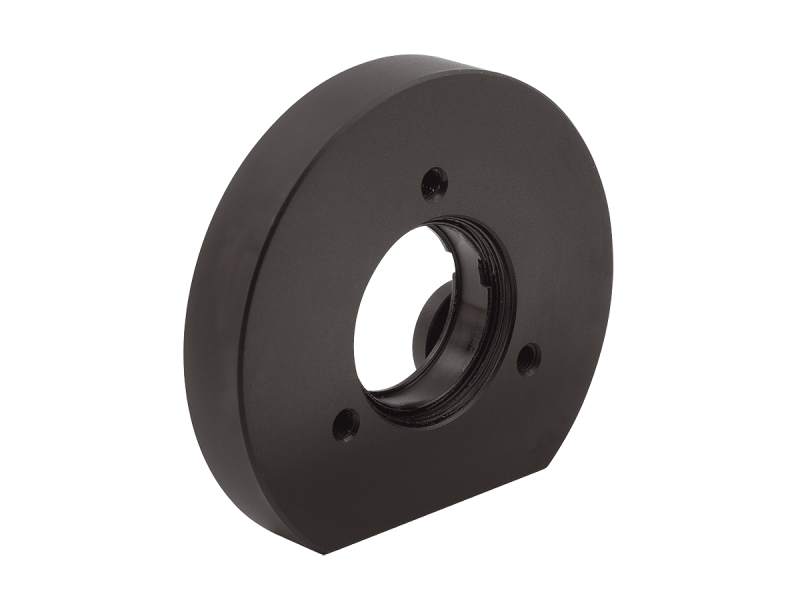

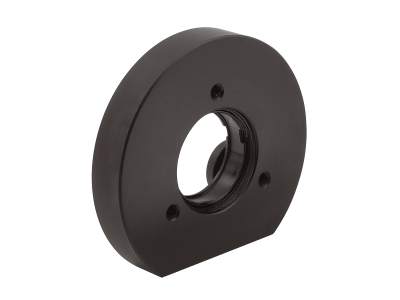

Objective Lens Mount, 0.800-36, 19.5 mm Optical Axis Height, 4-40 & 1/4-20

Model: SB19.18

$236

In Stock

Compare

Add to List

Product Series Overview

26 mm Optical Rail Mounts

The SB19.18 Lens Barrel Holder is available to mount B18 Series (18 mm) Lens Barrels or mirrors on a post or in the X26 rail system. The standard optical axis height for SB19 is 19.5 mm. These holders should be mounted to UMR5 Series Linear Stages on top of CN26 Carriers to maintain the normal 40 mm optical axis height of the X26 rail system. The SB19.18 is delivered with three screws, three washers, and a retaining ring that permits direct assembly of mirrors and other optics. It has 0.800-36 thread.

Specifications

Technical Specs

Type

Objective Lens Mount
Thread Type

0.800-36
Optical Axis Height

19.5 mm

Mounting Threads

4-40 & 1/4-20

Type

Objective Lens Mount
Thread Type

0.800-36
Optical Axis Height

19.5 mm

Mounting Threads

4-40 & 1/4-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SBSERIES DWG-S (105.7 kB, PDF)
SBMOUNTS.ONR-S (100.1 kB, PDF)
