  6. CB26.25.4

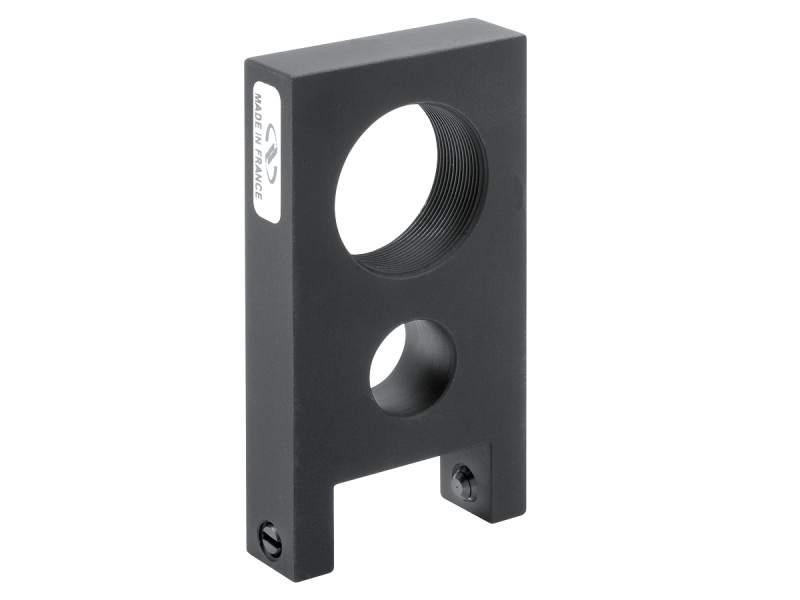

Lens Barrel Holder, M30 x 0.75, 40 mm Optical Axis Height

26 mm Optical Rail Mounts

Specifications

  • Type
    Lens Barrel Holder
  • Thread Type
    M30 x 0.75
  • Optical Axis Height
    40 mm
  • Mounting Threads
    Direct Rail Mount

Resources & Downloads

3D Product Models
2D Product Drawings
