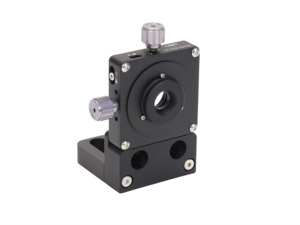

Precision Multi-Axis Lens Positioners New LP-05BPrecision Lens Positioner, 0.5 in., 100 TPI XYθXθY, 80 TPI Z
In Stock
$764

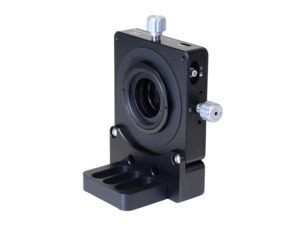

Precision Multi-Axis Lens Positioners New LP-05B-XYPrecision Lens Positioner, 0.5 in. Diameter, 100 TPI XY
In Stock
$465

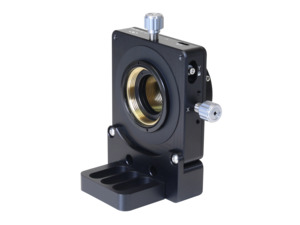

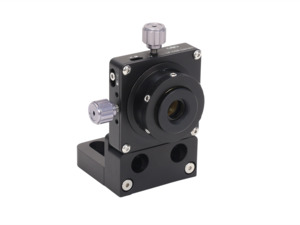

Precision Multi-Axis Lens Positioners New LP-05B-XYZPrecision Lens Positioner, 0.5 in., 100 TPI XY, 80 TPI Z
In Stock
$555

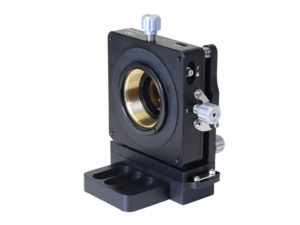

Precision Multi-Axis Lens Positioners New LP-1BPrecision Lens Positioner, 1.0 in., 100 TPI XYθXθY, 80 TPI Z
3 Weeks
$1,043
Precision Multi-Axis Lens Positioners New LP-1B-XYPrecision Lens Positioner, 1.0 in. Diameter, 100 TPI XY
In Stock
$612
Precision Multi-Axis Lens Positioners New LP-1B-XYZPrecision Lens Positioner, 1.0 in., 100 TPI XY, 80 TPI Z
Contact Us
$736

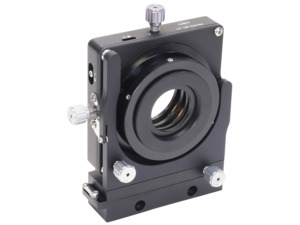

Precision Multi-Axis Lens Positioners New LP-2BPrecision Lens Positioner, 2.0 in., 100 TPI XYθXθY, 80 TPI Z
In Stock
$1,110

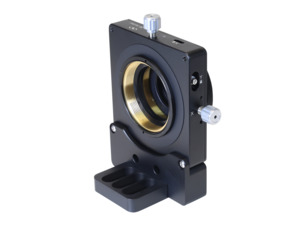

Precision Multi-Axis Lens Positioners New LP-2B-XYPrecision Lens Positioner, 2.0 in. Diameter, 100 TPI XY
In Stock
$716

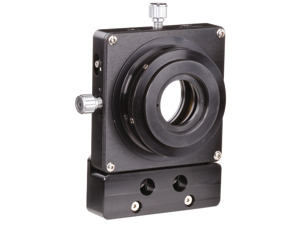

Precision Multi-Axis Lens Positioners New LP-2B-XYZPrecision Lens Positioner, 2.0 in., 100 TPI XY, 80 TPI Z
In Stock
$801
Notes:

For the previous LP-A versions, please click here

Compatibility

Optic Compatibility with Multi-axis Lens Positioners

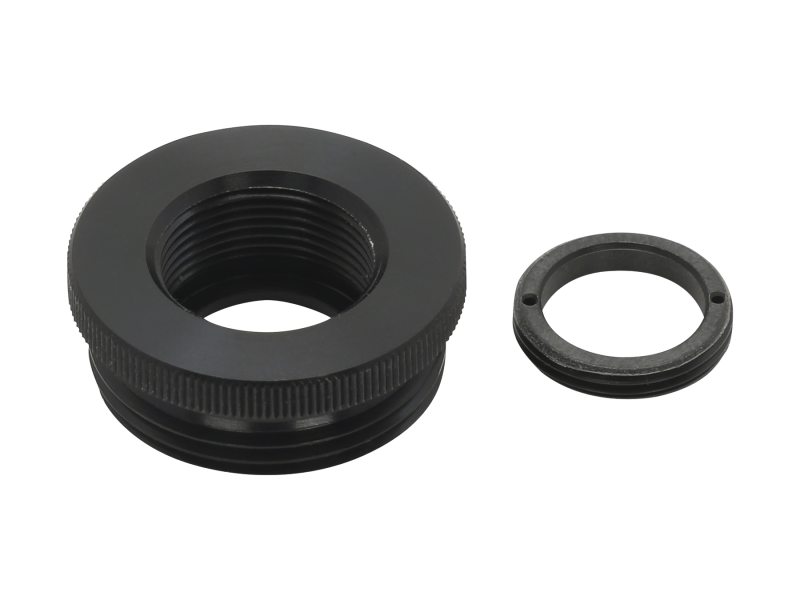

The threaded central aperture of these lens positioners accommodates optic retaining rings and a variety of optics holders for simple lenses, objective lenses, or other optics. Each unit is supplied with two non-marring Delrin retaining rings as well as an optic holder.

 Optic LP-05 A/B Series LP-1 A/B Series LP-2 A/B Series
0.25 in. Diameter Requires  Optic Holder  N/A N/A
0.5 in. Diameter Included  Optic Holder N/A N/A
0.75 in. Diameter Requires  Optic Holder  N/A N/A
1.0 in. Diameter N/A  Included Optic Holder N/A
1.5 in. Diameter N/A N/A Included Optic Holder
2.0 in. Diameter N/A N/A Included  Retaining Ring
0.5 in. Cube N/A Requires Cube Holder N/A
1.0 in. Cube N/A N/A Requires Cube Holder
Objective Lens Requires Objective Holder Requires Objective Holder N/A
C-Mount Lens N/A Requires Thread Adapter Requires Thread Adapter
1.0 in. Lens Tube N/A Requires or Thread Adapter N/A
Cylindrical Lens N/A N/A Requires Lens Holder
Pinholes

0.875-20 Threaded Pinholes

 N/A N/A
Blank Machinable Insert Requires Insert Requires Insert Requires  Insert



Features

Two, Three or Five Axes of Positioning

  • Two-axis XY models have orthogonal transverse adjustments.
  • Three-axis XYZ models add translation along the optical Z-axis. Pure Z-axis motion without rotation of the lens is achieved through turning the knurled ring with precision 80 TPI threads.
  • Five-axis XYZ θXθY models provide smooth XYZ translation plus true gimbaling about two orthogonal, coplanar axes. Five independent degrees of freedom allow you to accurately position an optic in any plane along any axis.

True Gimbal Adjustments

LP-A Five-axis XYZ θXθY models provides smooth XYZ translation plus true gimbaling about two orthogonal, coplanar axes. These five independent degrees of freedom allow you to accurately position an optic in any plane along any axis.

Adapters for Cube Beam Splitters

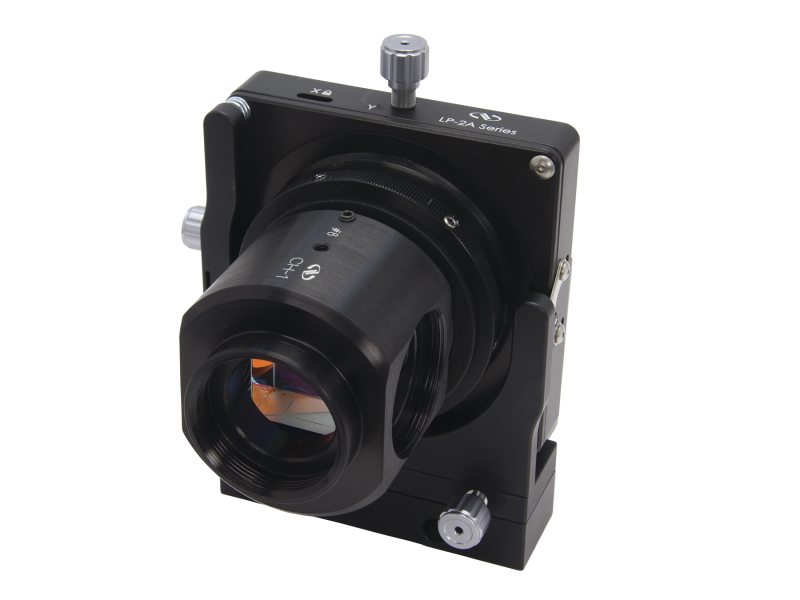

The CH-0.5 and CH-1 can be used to adapt 0.5 in. and 1.0 in. cube beamsplitters to the LP-1B and LP-2B series lens mounts, respectively. The holder simply threads into the matching threaded hole in the lens mount, which can align the cube in x, y, z, and pitch and yaw coordinates. Roll can be set manually using the lock ring on the CH-1.

Adapters for Connecting 1.0 in. Lens Tubes

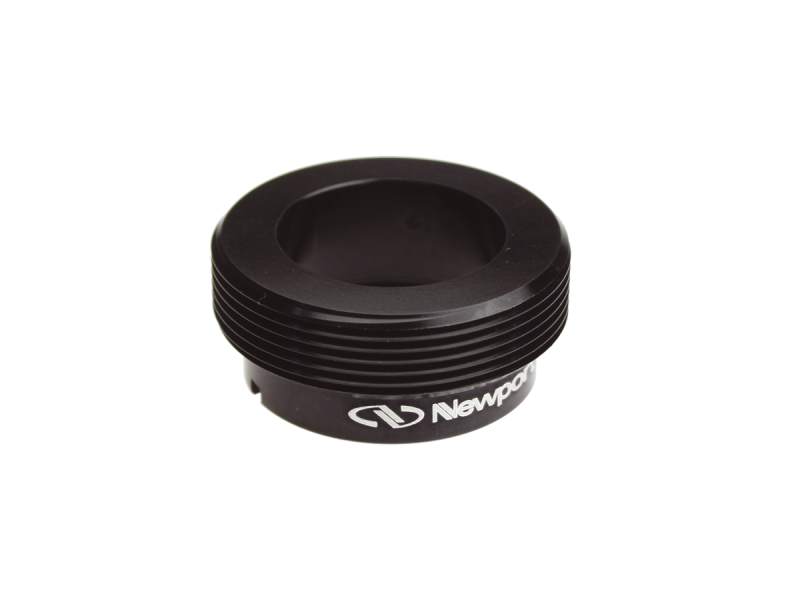

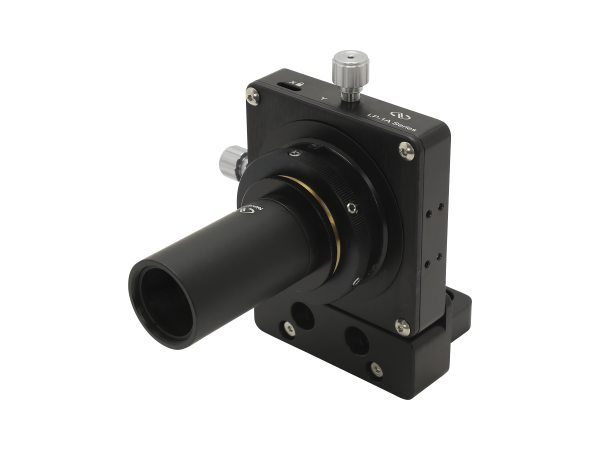

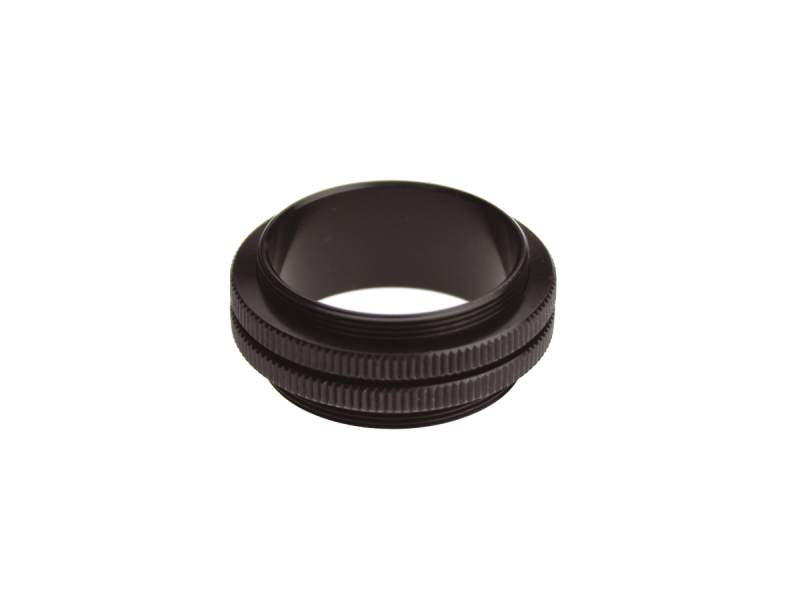

Two adapters are available to adapt LT10 Series Lens Tubes to LP-1B Series Lens Positioners. The adapter features internal 1.035-40 and external 1.063-20 threads and needs to be used with the LPLH-1T optic holder in place. Alternative option is to use the adapter which features internal 1.035-40 and external 1.438-20 threads and directly threads into the lens positioners with LPLH-1T optic holder removed.

Independent Non-influencing Locks

Independent locks for each axis of translation and rotation securely lock the mechanism, not just the actuator screws, maintaining stable optical alignment. Engaging or disengaging each lock has negligible influence on the other axes.

Adapters for Connecting Cage System

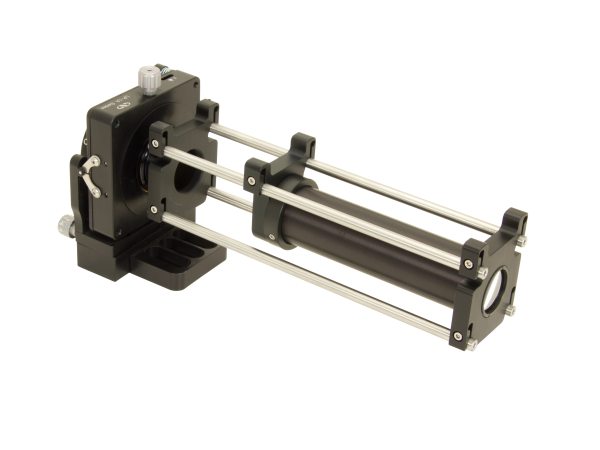

Use  and  adapters together to connect LP-1B lens positioners to OpticsCage+™ optical cage system. Alternative solution is  with  when LPLH-1T optic holder is installed.

Table or Post Mounting

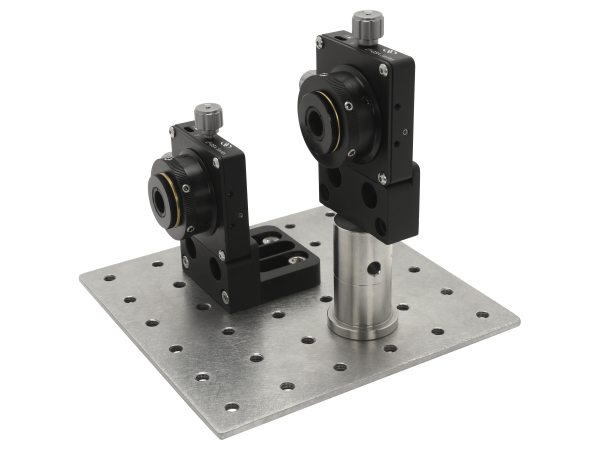

The LP Series Lens Positioners can be mounted to optical tables directly with the slotted base, or to an optical post using the threaded holes (8-32 and M4 for LP-05A, 1/4-20 and M6 for LP-1B and LP-2B) at the bottom.

Modular Slotted Base and Riser

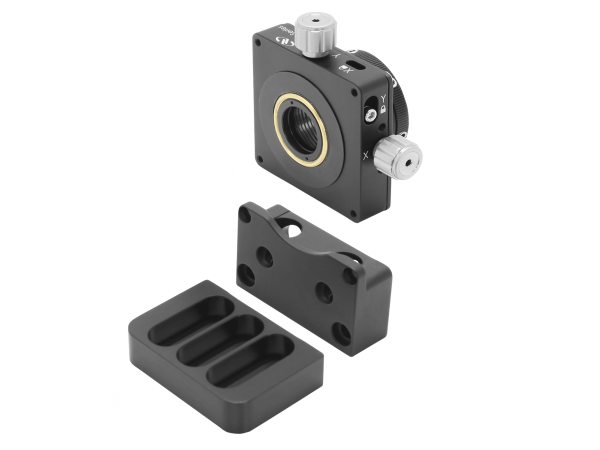

When the space to mount a lens positioner within an optical system is limited, the slotted base of all LP Series Lens Positioners can be removed to reduce their footprint. For OEM systems with a lower optical axis height, the riser piece of the two-axis XY models and three-axis XYZ models can also be removed, with the smaller tapped holes on the back side of the lens positioner accessible for mounting. (Note that the riser piece of the five-axis models is not removable.)
