Optic Holder, 1.0 inch Diameter, 1.438-20 Thread, For LP-1A Series
Optic Holder, 1.0 inch Diameter, 1.438-20 Thread, For LP-1A Series
Model: LPLH-1T
Product Series Overview

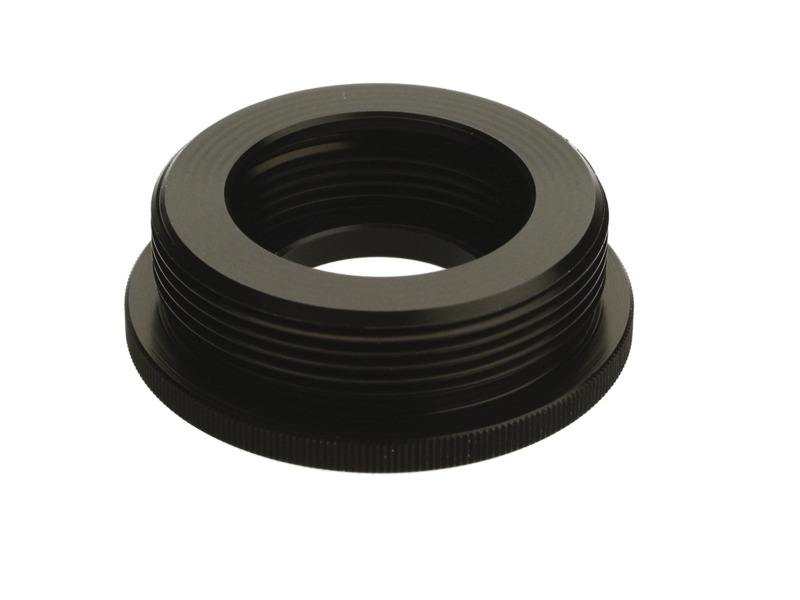

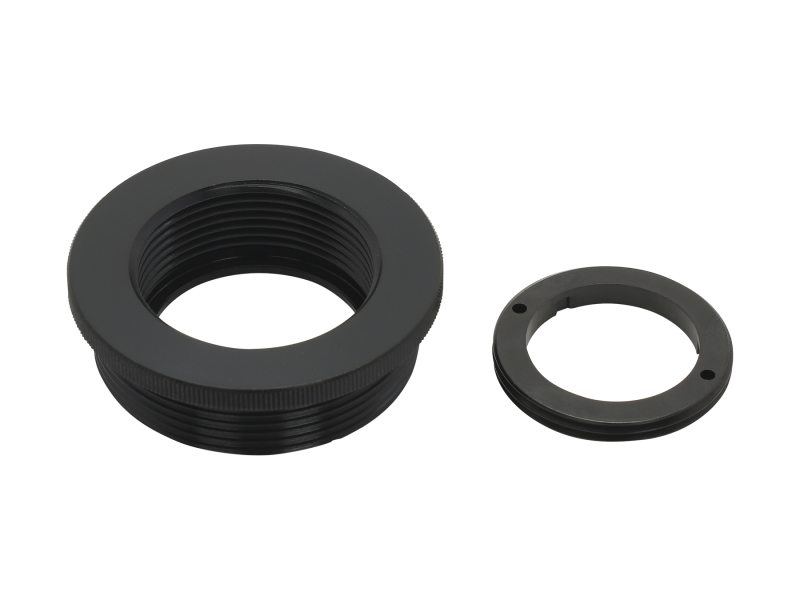

Precision Multi-Axis Lens PositionersThe LPLH-1T Optic Holder is useful for precision positioning 1.0 inch (25.4 mm) diameter optics. It features 1.438-20 threads for use in LP-1A Series multi-axis lens positioners. It includes a reataing ring to secure the 1 in. optic.
Resources & Downloads
2D Product Drawings
LPLH-751-5TA-S(126.7 kB, PDF)
Other
LPLH-1T RoHS Certificate(277.3 kB, PDF) LPLH-1T_RoHS2021.pdf(679.3 kB, PDF)
