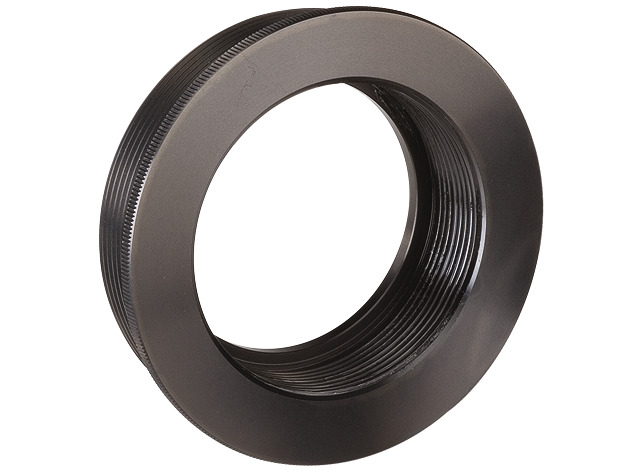

Optic Holder, 1.5 in. Diameter, 2.063-20 Thread, For LP-2A Series

Optic Holder, 1.5 in. Diameter, 2.063-20 Thread, For LP-2A Series

Model: LPLH-1.5T

$97.00

In Stock

Compare

Add to List

Product Series Overview

Precision Multi-Axis Lens Positioners

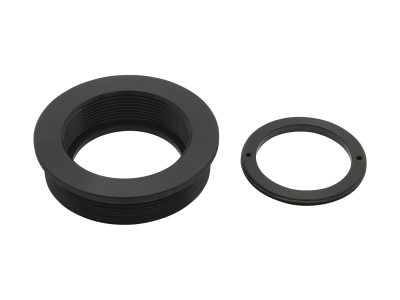

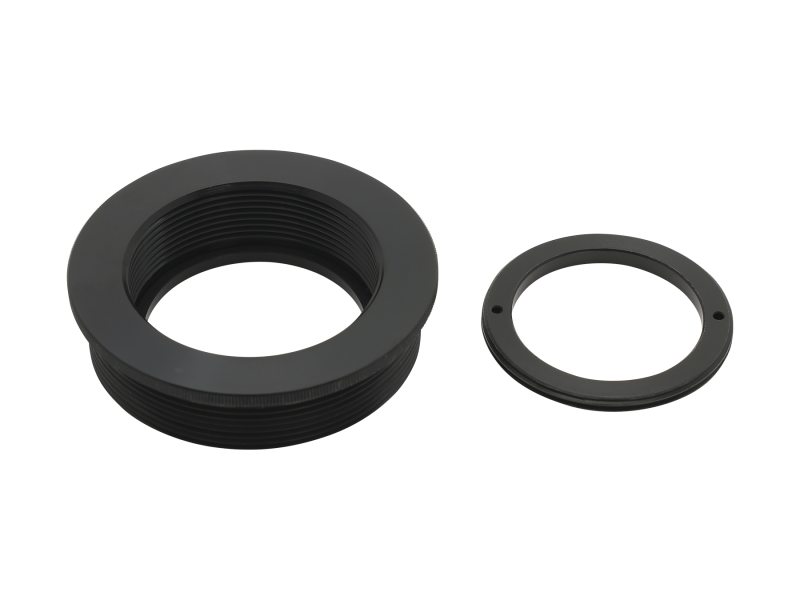

The LPLH-1.5T Optic Holder is useful for precision positioning 1 1/2 inch (38.1 mm) diameter optics. It features 2.063-20 threads for use in LP-2A Series multi-axis lens positioners. It includes a reataing ring to secure the 1.5 in. optic.

Specifications

Technical Specs

Type

Optic Holder
Optic Diameter

38.1 mm
Use

LP-2A Lens Positioners

Retaining Ring

LP-2-RR

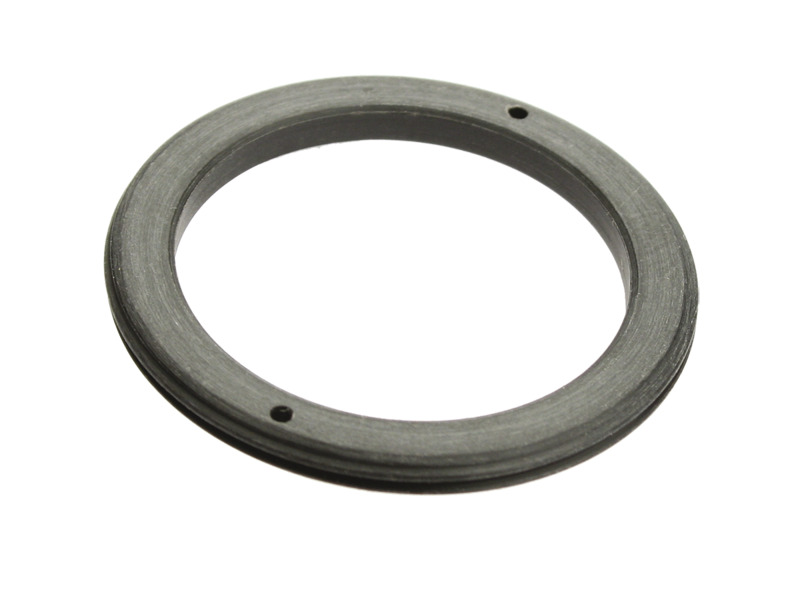

Model: LP-2-RR

Retaining Ring, 30.0 mm ID, 1.563-20 Thread

$7.60

In Stock

See Full Product Details

Product Series Overview

Adaptors and Retaining Rings

(Included)
Retaining Ring Thread

1.563-20

Type

Optic Holder
Optic Diameter

38.1 mm
Use

LP-2A Lens Positioners

Retaining Ring

LP-2-RR

Model: LP-2-RR

Retaining Ring, 30.0 mm ID, 1.563-20 Thread

$7.60

In Stock

See Full Product Details

Product Series Overview

Adaptors and Retaining Rings

(Included)
Retaining Ring Thread

1.563-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LPLH-751-5TA-S (126.7 kB, PDF)

Other

LPLH-1.5T RoHS Certificate (278.4 kB, PDF)
LPLH-1-5T_RoHS2021.pdf (681.9 kB, PDF)
