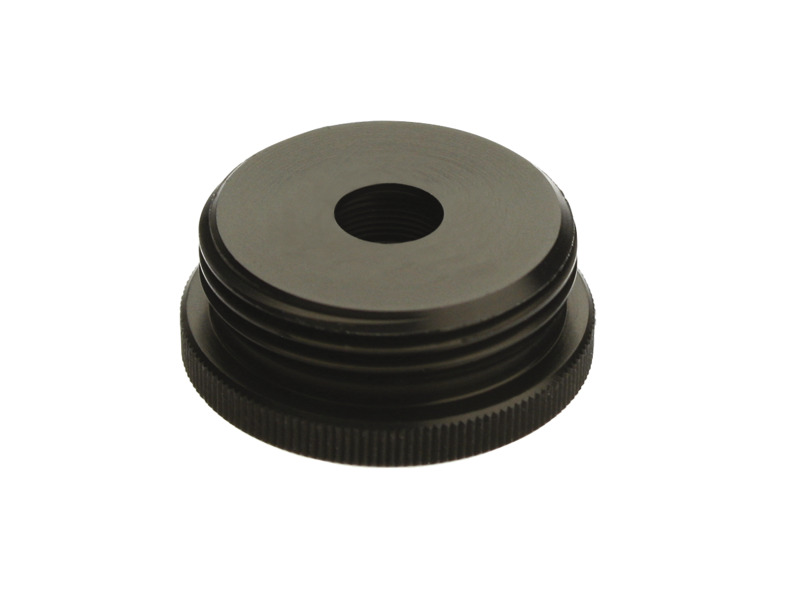

Optic Holder, 0.25 in. Diameter, 0.875-20 Thread, For LP-05A Series

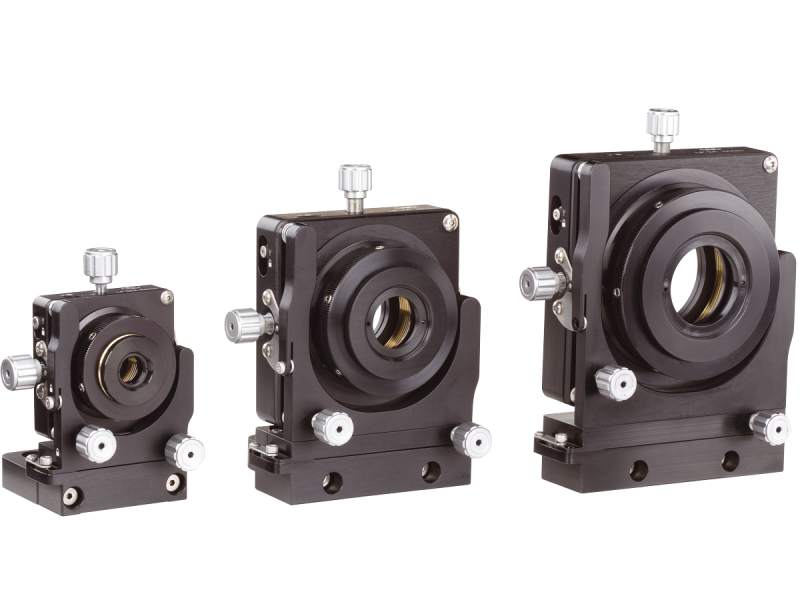

3 sizes of precision multi-axis lens positioners shown

Optic Holder, 0.25 in. Diameter, 0.875-20 Thread, For LP-05A Series

Model: LPLH-25T

$42

In Stock

Compare

Add to List

Product Series Overview

Precision Multi-Axis Lens Positioners

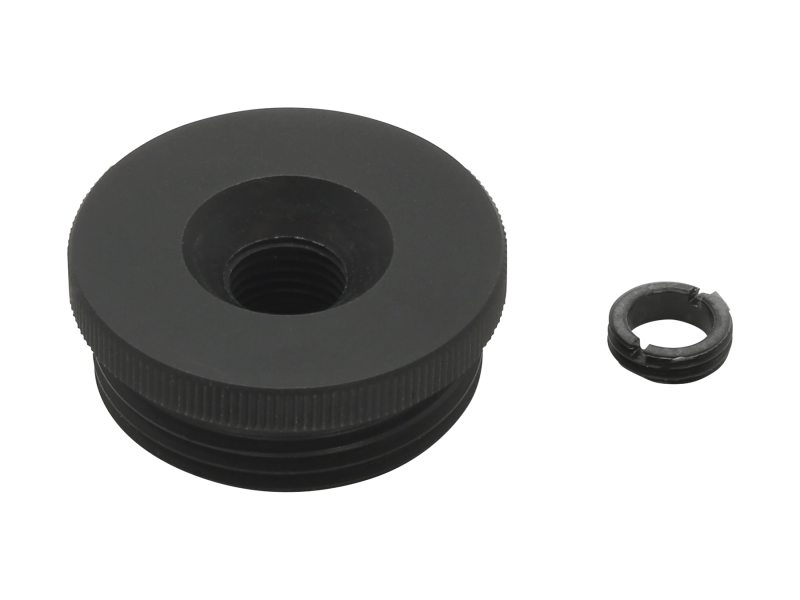

The LPLH-25T Optic Holder is useful for precision positioning 1/4 inch (6.35 mm) diameter optics. It features 0.875-20 threads for use in LP-05A Series multi-axis lens positioners. It includes a reataing ring to secure the 0.25 in. optic.

Specifications

Technical Specs

Type

Optic Holder
Optic Diameter

6.35 mm
Use

LP-05A Lens Positioners
Retaining Ring

MLH-0.25-RR (Included)

Retaining Ring Thread

0.281-32
Thread Type

0.875-20

Type

Optic Holder
Optic Diameter

6.35 mm
Use

LP-05A Lens Positioners
Retaining Ring

MLH-0.25-RR (Included)

Retaining Ring Thread

0.281-32
Thread Type

0.875-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LPLH-751-5TA-S (126.7 kB, PDF)

Other

LPLH-25T RoHS Certificate (278.6 kB, PDF)
LPLH-25T_RoHS2021.pdf (684.4 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SW-OM Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL		In Stock	$67

Similar

Description	Compatibility	Avail.	Price
LPLH-1T Optic Holder, 1.0 inch Diameter, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	In Stock	$36
LPLH-1.5T Optic Holder, 1.5 in. Diameter, 2.063-20 Thread, For LP-2A Series	UNIVERSAL	In Stock	$94

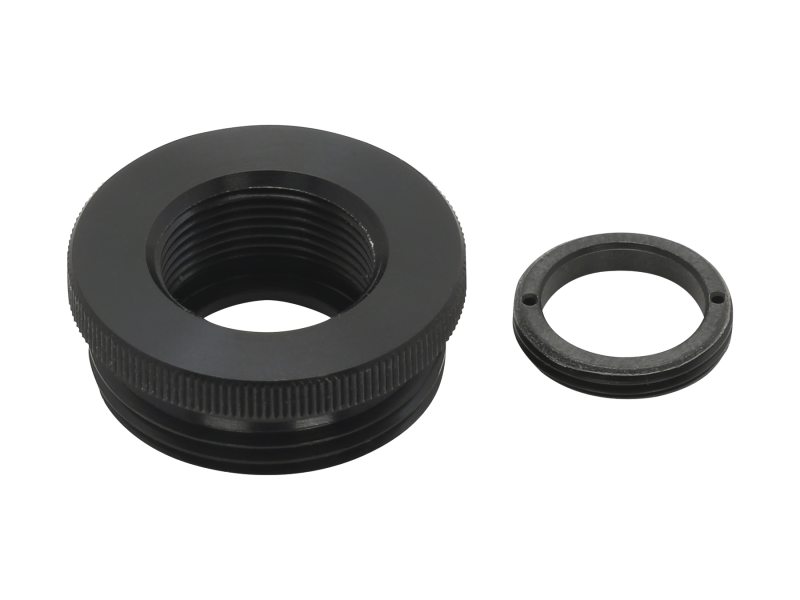

LPLH-50T Optic Holder, 0.5 in. Diameter, 0.875-20Thread, For LP-05A Series	UNIVERSAL	In Stock	$42
LPLH2-0 Blank Insert, Machinable, 2.063-20 Thread, For LP-2A Series	UNIVERSAL	In Stock	$49
LPLH-BB Blank Insert, Machinable, 0.875-20 Thread, For LP-05A Series	UNIVERSAL	In Stock	$29

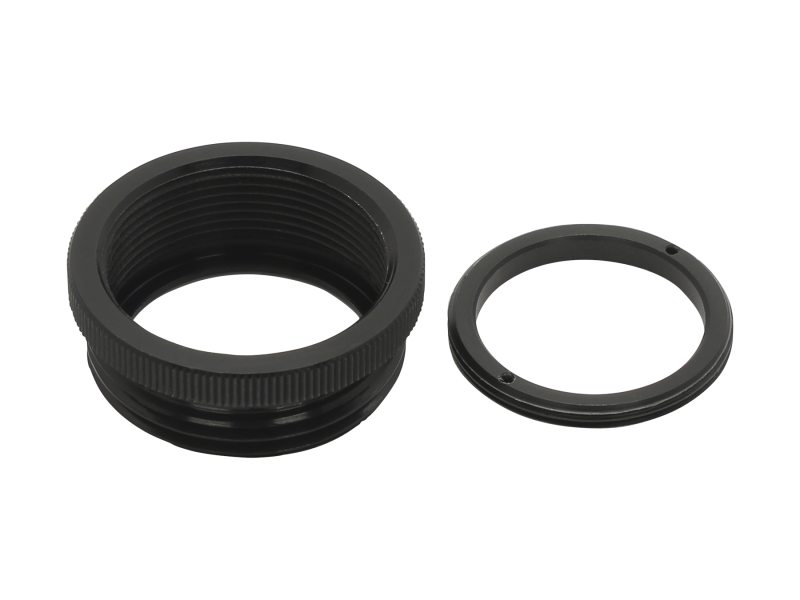

LPLH-75T Optic Holder, 0.75 in. Diameter, 0.875-20 Thread, For LP-05A Series	UNIVERSAL	In Stock	$36
LP1A-1-32 C-Mount Lens Holder, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	In Stock	$74
LPMH-1 Objective Lens Holder, RMS, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	In Stock	$35
LPLH-0 Blank Insert, Machinable, 1.438-20 Thread, For LP-1A Series	UNIVERSAL	In Stock	$30
LPMH-05 Objective Lens Holder, RMS, 0.875-20 Thread, For LP-05A Series	UNIVERSAL	In Stock	$36

Compatible

Description	Compatibility	Avail.	Price
LP-05A Precision Lens Positioner, 0.5 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL	In Stock	$727
LP-05A-XY Precision Lens Positioner, 0.5 in. Diameter, 100 TPI XY	UNIVERSAL	In Stock	$443
LP-05A-XYZ Precision Lens Positioner, 0.5 in., 100 TPI XY, 80 TPI Z	UNIVERSAL	In Stock	$528
MLH-0.5 Rotation Lens Mount Adaptor, 0.50 in. Diameter to 0.75 in. Mount	UNIVERSAL	In Stock	$34
