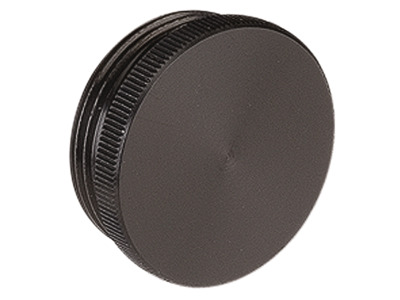

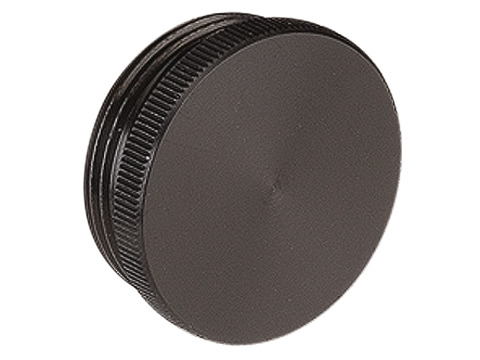

Blank Insert, Machinable, 1.438-20 Thread, For LP-1A Series

Blank Insert, Machinable, 1.438-20 Thread, For LP-1A Series

Model: LPLH-0

$31.00

In Stock

Compare

Add to List

Product Series Overview

Precision Multi-Axis Lens Positioners

The LPLH-0 Blank Insert is a solid aluminum machinable insert for you to custom machine to hold virtually any optical component. It features 1.438-20 threads for use with LP-1A Series multi-axis lens positioners.

Specifications

Technical Specs

Type

Lens Positioner

Type

Lens Positioner

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LPLH-0BB-25perc-S (88.3 kB, PDF)

Other

LPLH-0 RoHS Certificate (276.8 kB, PDF)
LPLH-0_RoHS2021.pdf (678.6 kB, PDF)

Related Products

Retaining Ring Spanner Wrench

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SW-OM Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL		In Stock	$69.00

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		LPLH2-0 Blank Insert, Machinable, 2.063-20 Thread, For LP-2A Series	UNIVERSAL		In Stock	$50.00
		LPLH-BB Blank Insert, Machinable, 0.875-20 Thread, For LP-05A Series	UNIVERSAL		In Stock	$30.00

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		LP-1A Precision Lens Positioner, 1.0 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL		In Stock	$1,023.00
		LFM-1A Lens Focusing Mount, 5 mm Travel, 35 mm Max Optic, 80 TPI	UNIVERSAL		In Stock	$370.00
		LP-1A-XY Precision Lens Positioner, 1.0 in. Diameter, 100 TPI XY	UNIVERSAL		In Stock	$600.00
		LP-1A-XYZ Precision Lens Positioner, 1.0 in., 100 TPI XY, 80 TPI Z	UNIVERSAL		In Stock	$722.00
