Blank Insert, Machinable, 0.875-20 Thread, For LP-05A Series
Blank Insert, Machinable, 0.875-20 Thread, For LP-05A Series
Model: LPLH-BB
Product Series Overview

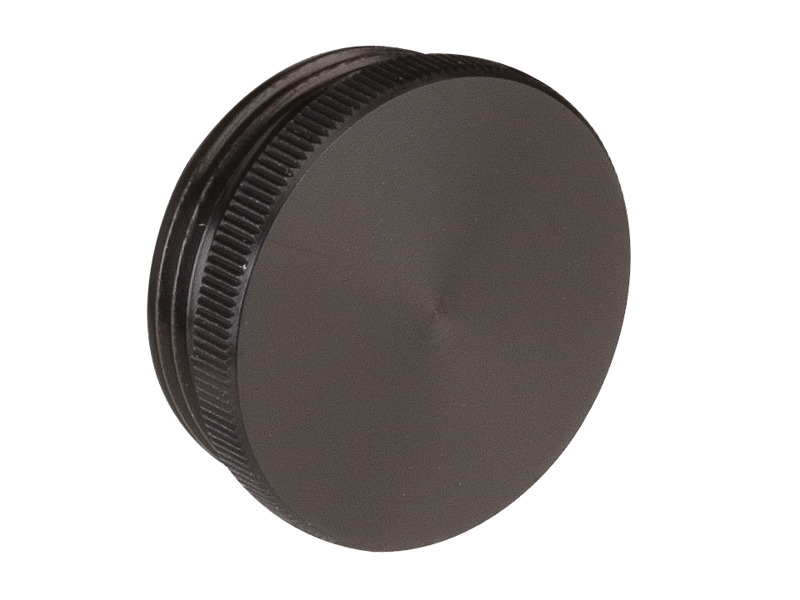

Precision Multi-Axis Lens PositionersThe LPLH-BB Blank Insert is a solid aluminum machinable insert for you to custom machine to hold virtually any optical component. It features 0.875-20 threads for use with LP-05A Series multi-axis lens positioners.
Resources & Downloads
2D Product Drawings
LPLH-0BB-25perc-S(88.3 kB, PDF)
Other
LPLH-BB RoHS Certificate(276.9 kB, PDF) LPLH-BB_RoHS2021.pdf(677.4 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LPLH-0Blank Insert, Machinable, 1.438-20 Thread, For LP-1A Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

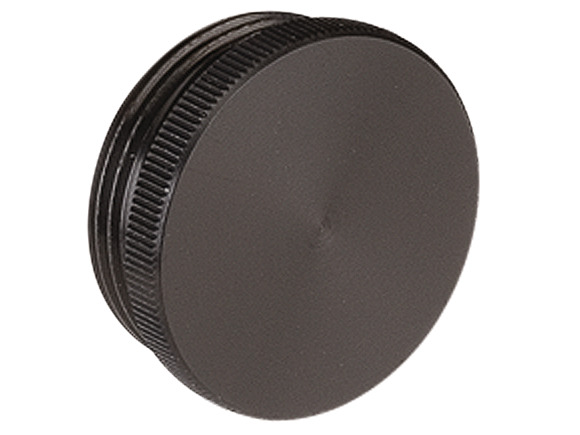

 | LPLH2-0Blank Insert, Machinable, 2.063-20 Thread, For LP-2A Series | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LP-05APrecision Lens Positioner, 0.5 in., 100 TPI XYθXθY, 80 TPI Z | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

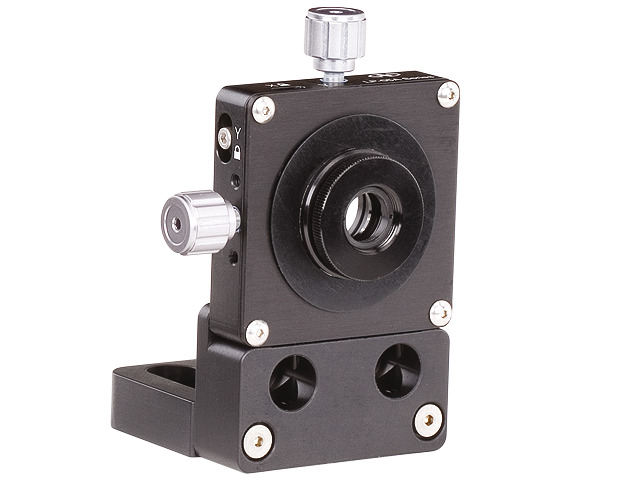

 | LP-05A-XYPrecision Lens Positioner, 0.5 in. Diameter, 100 TPI XY | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
