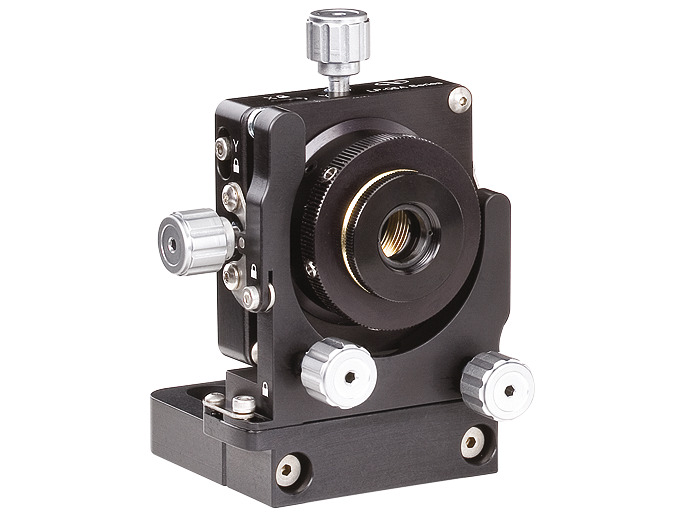

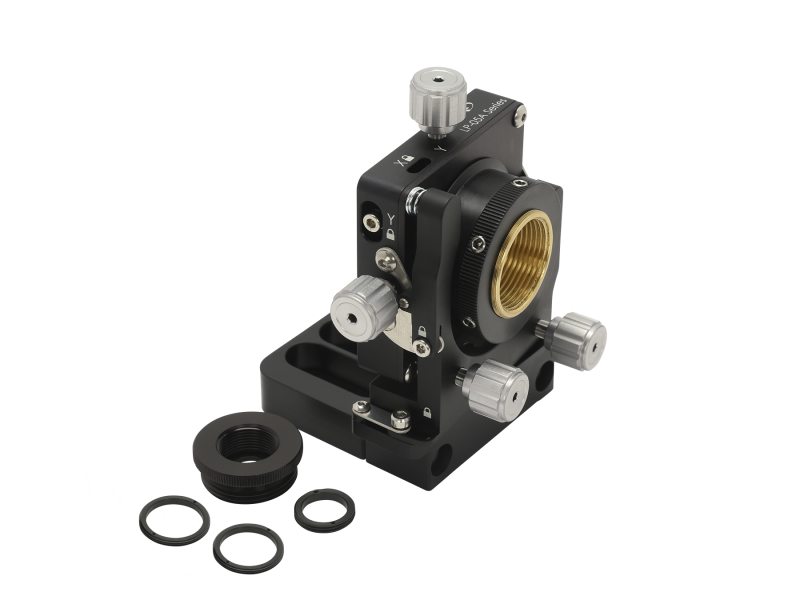

XYZ θXθY Lens Positioner, 0.5 in. (12.7 mm) Diameter

Model: LP-05A

XYZ θXθY Lens Positioner, 0.5 in. (12.7 mm) Diameter

Model: LP-05A

Technical Specs

  • Optic Diameter
    12.7 mm
  • Adjustments
    XYZ θXθY
  • Angular Range
    ±5°
  • Adjustment Screw Thread
    80 TPI: Z, 100 TPI: XY θXθY
  • Type
    Lens Positioner
  • Thread Type
    1/4-20 and M6
  • Optical Axis Height
    50.8 mm
  • Travel, Z
    ±3.2 mm
  • Travel, X
    ±1.6 mm
  • Travel, Y
    ±1.6 mm

Resources & Downloads

Other
2D / 3D CAD Software
Drawings And Cad

XYZ θXθY Lens Positioner, 0.5 in. (12.7 mm) Diameter

Model: LP-05A

$556
In Stock
