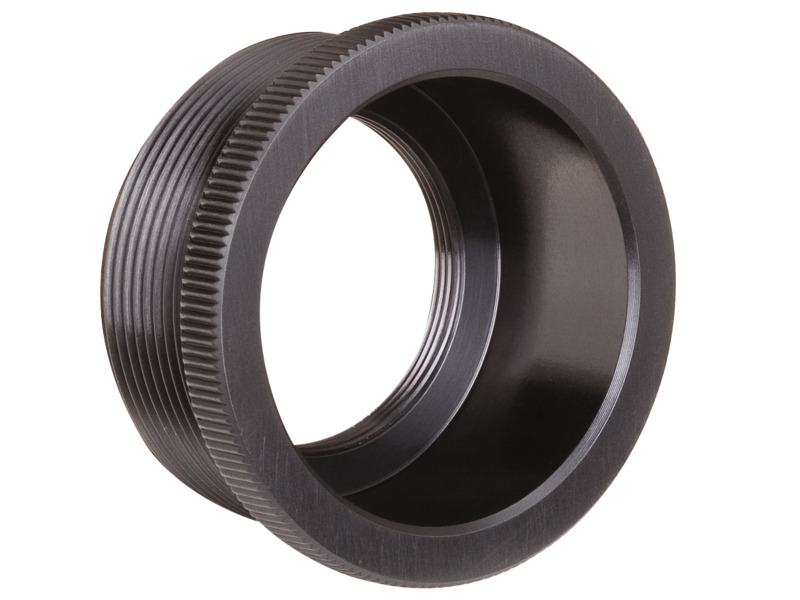

C-Mount Lens Holder, 1.438-20 Thread, For LP-1A Series

Precision Multi-Axis Lens Positioners

The LP1A-1-32 C-Mount Lens Holder has 1-32 threads mounting C mount lenses. It features 1.438-20 threads for use in LP-1A Series multi-axis lens positioners.

Specifications

Technical Specs

Type
C-Mount Lens Holder
Use
LP-1A Lens Positioners
C-Mount Thread
1-32

Thread Type
1.438-20

Type
C-Mount Lens Holder
Use
LP-1A Lens Positioners
C-Mount Thread
1-32

Thread Type
1.438-20

Resources & Downloads

2D Product Drawings

LPXA-1-32-S(177.3 kB, PDF)

Other

LP1A-1-32 RoHS Certificate(278.7 kB, PDF)
LP1A-1-32_RoHS2021.pdf(683.8 kB, PDF)
