XY Optic Positioner, Precision, BM Micrometers

Model: SB18YZBM

$1,056

In Stock

Compare

Add to List

Product Series Overview

Objective Lens Precision XY Positioners

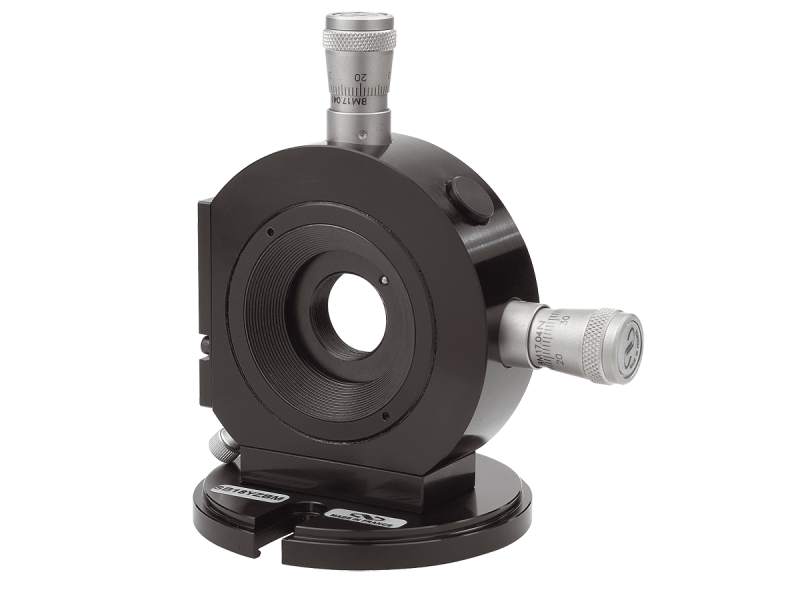

The SB18YZBM Optic Mount precisely positions any optical element in a plane perpendicular to the optical axis, and is a very popular choice for positioning in spatial filters. The mount accepts any M20.25 RMS-threaded pinhole, microscope objective or lens. XY travel is ±2 mm. A BM Micrometer drives deliver 1 µm sensitivity. Mounted on a CN26 carrier, SB18YZ mounts have a 40 mm axis height for compatibility with the X26 component family. For table mounting, SB18YZ mounts include a base plate similar to those found on our SL Series mounts.

Specifications

Technical Specs

Type

Objective Lens Mount
Use

Microscope objectives & pinholes
Adjustments

XY
Adjustment Type

BM Series Micrometers
Travel, X

±2 mm

Travel, Y

±2 mm
Sensitivity

1 µm
Objective Lens Thread

RMS
Thread Type

RMS

Type

Objective Lens Mount
Use

Microscope objectives & pinholes
Adjustments

XY
Adjustment Type

BM Series Micrometers
Travel, X

±2 mm

Travel, Y

±2 mm
Sensitivity

1 µm
Objective Lens Thread

RMS
Thread Type

RMS

Resources & Downloads

Related Products

Accessories

Description	Compatibility	Avail.	Price
LP-1A-XYZ Precision Lens Positioner, 1.0 in., 100 TPI XY, 80 TPI Z	UNIVERSAL	In Stock	$701
LP-05A-XY Precision Lens Positioner, 0.5 in. Diameter, 100 TPI XY	UNIVERSAL	In Stock	$443
LFM-1A Lens Focusing Mount, 5 mm Travel, 35 mm Max Optic, 80 TPI	UNIVERSAL	In Stock	$359
LPV-1 Compact Lens Positioner, XYZ θXθY, 1.0 in. Diameter, 100 TPI	UNIVERSAL	In Stock	$355
SW-OM Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL	In Stock	$67

Similar

Description	Compatibility	Avail.	Price
LP-1A-XY Precision Lens Positioner, 1.0 in. Diameter, 100 TPI XY	UNIVERSAL	In Stock	$583
LA1V-XY Compact Lens Positioner, XY, 1.0 in. Diameter, 100 TPI	UNIVERSAL	In Stock	$183
SB18YZBHC XY Optic Positioner, Precision, BHC Lockable Adjustment Screws	UNIVERSAL	In Stock	$845
LP-1A Precision Lens Positioner, 1.0 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL	In Stock	$993
SB18YZN XY Optic Positioner, Precision, Actuators Not Included	UNIVERSAL	In Stock	$565

Compatible

Description	Compatibility	Avail.	Price
B20-RMS Focusing Lens Mount Barrel, 20 mm, M20.25 RMS Lens Mounts	UNIVERSAL	Show	$172
B12.7 Lens Mount Barrel, 12.7 mm, M20.25 RMS Lens Mounts	UNIVERSAL	In Stock	$114
LT10-RMS-N Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 0.800-36 RMS Thread	UNIVERSAL	In Stock	$23
PL15 Laser Beam Dump, 30 W/cm² Max Power Density, RMS Thread	UNIVERSAL	Show	$186
LTA-HS Motorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread	UNIVERSAL	In Stock	$2,410
