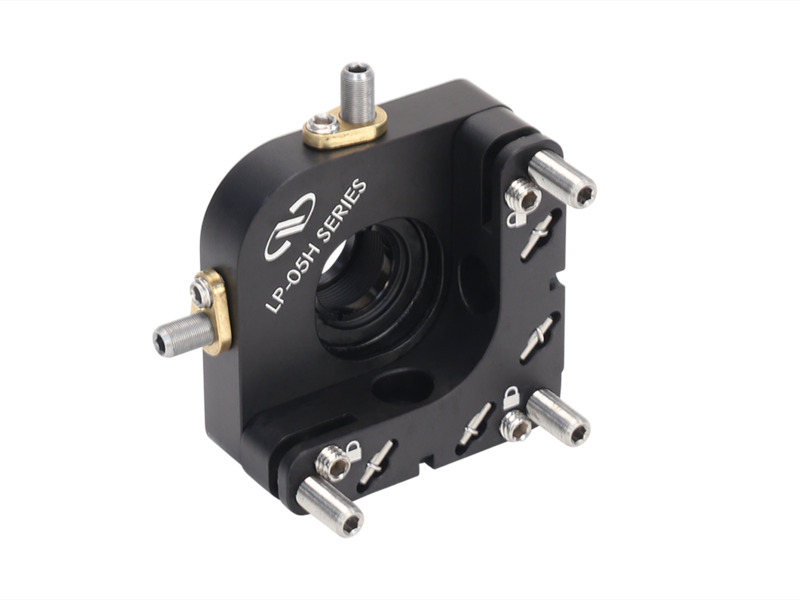

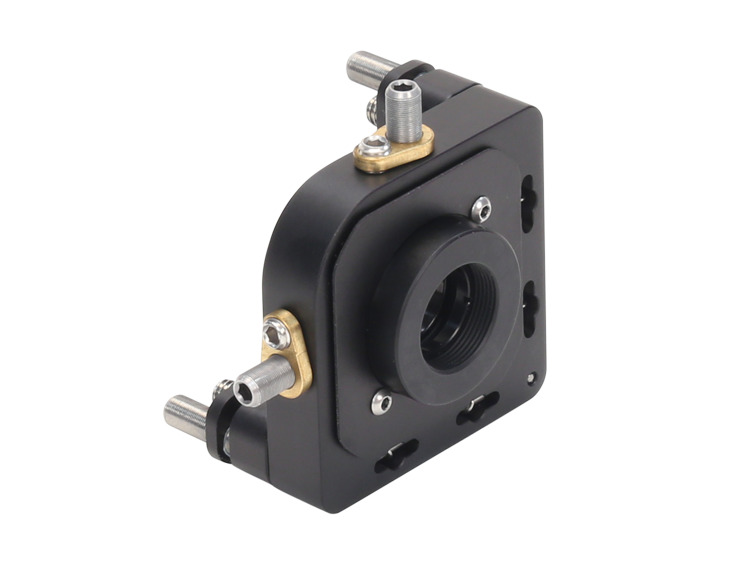

Lens Positioner, 0.5 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR
Lens Positioner, 0.5 in. Diameter, XYZθXθY, 100 TPI, 8-32 (M4) CLR
Model: LP5X-05H
Product Series Overview
Compact Multi-Axis Lens PositionersThe LP5X-05H Compact Lens Positioner provides an economical solution for applications requiring five (XYZθXθY) axes of adjustment within a limited space. Precise, 100 TPI hex-key adjusters allow smooth adjustment with increased sensitivity. Independent locks for each axis securely lock the adjustment screws, maintaining stable optical alignment. Each unit is supplied with two retaining rings to safely secure optical elements with an outer diameter of 0.5 inch (12.7 mm). The threaded central aperture can also accommodate a variety of optomechanical components with SM05 (0.535-40) thread. Post mounting is achieved by accessing the 8-32 (M4) counterbored holes in the mount body. Designed with OEM applications in mind, the lens positioner includes alignment pin holes to enable keying of the position and orientation by means of dowel pins for repeatable system integration and to prevent clocking effects.
Specifications
- TypeLens Positioner
- Optic Diameter12.7 mm
- 7.6 mm
- Optical Axis Height20.3 mm
- AdjustmentsXYZ θXθY
- Adjustment Screw Thread100 TPI
- Travel, XY±1.6 mm
- Travel, Z 0±3.0 mm
- Angular Range, θXθY±4°

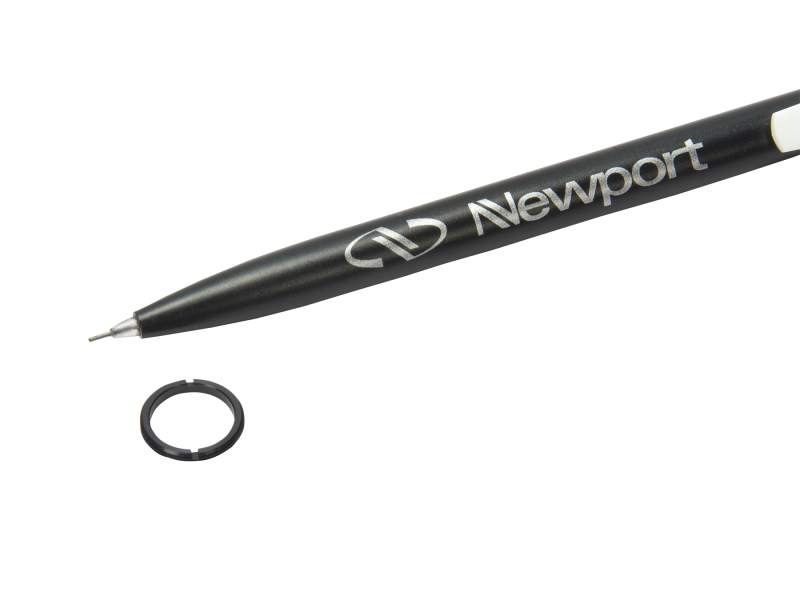

- Retaining Ring
(2 Included) - Retaining Ring Thread0.535-40
- Thread Type8-32 (M4) CLR
- MaterialAnodized Aluminum
Notes:
- Accomplished by turning all three tip/tilt adjusters equally in the same direction.
