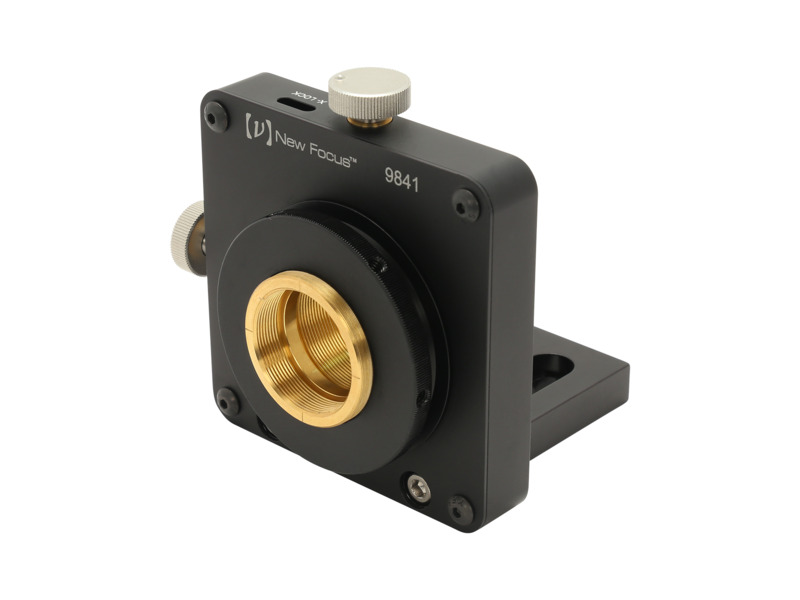

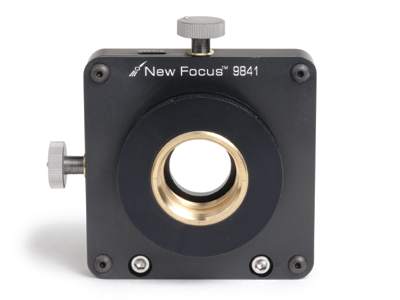

Compact Lens Positioner, XYZ, 1.0 in. Diameter, 100 TPI

Technical Specs

  • Type
    Lens Positioner
  • Optic Diameter
    25.4 mm
  • Clear Aperture
    20.7 mm
  • Retaining Ring
    Included
  • Retaining Ring Thread
    1.040-32
  • Thread Type
    8-32 and M4
  • Optical Axis Height
    38.1 mm
  • Adjustments
    XYZ
  • Adjustment Type
    Knob
  • Angular Range
    N/A
  • Adjustment Screw Thread
    100 TPI (XY)
    80 TPI (Z)
  • Sensitivity
    0.71 µm (XY)
    1 µm (Z)
  • Material
    Aluminum
  • Travel, Z
    ±3.2 mm
  • Travel, X
    ±3.2 mm
  • Travel, Y
    ±3.2 mm
