Linear Stage, High-Performance, Low-Profile, Ball Bearings, 46 mm, M6

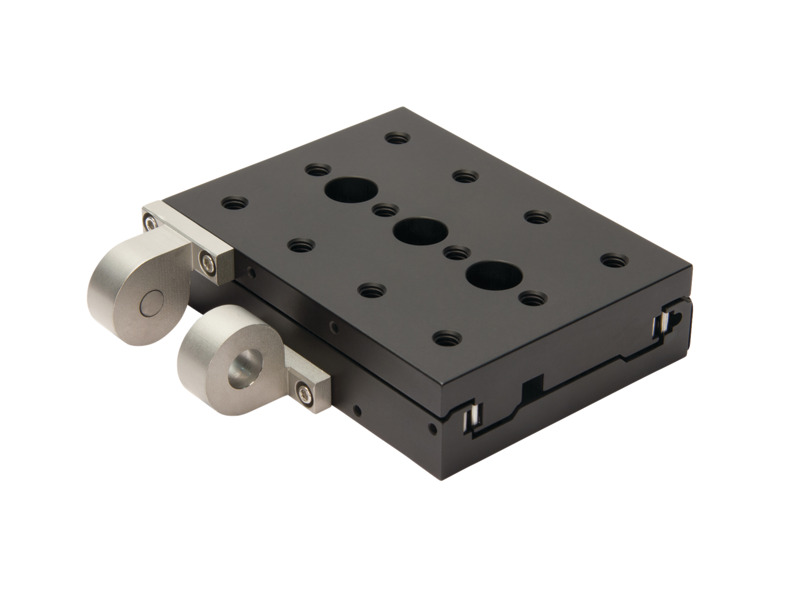

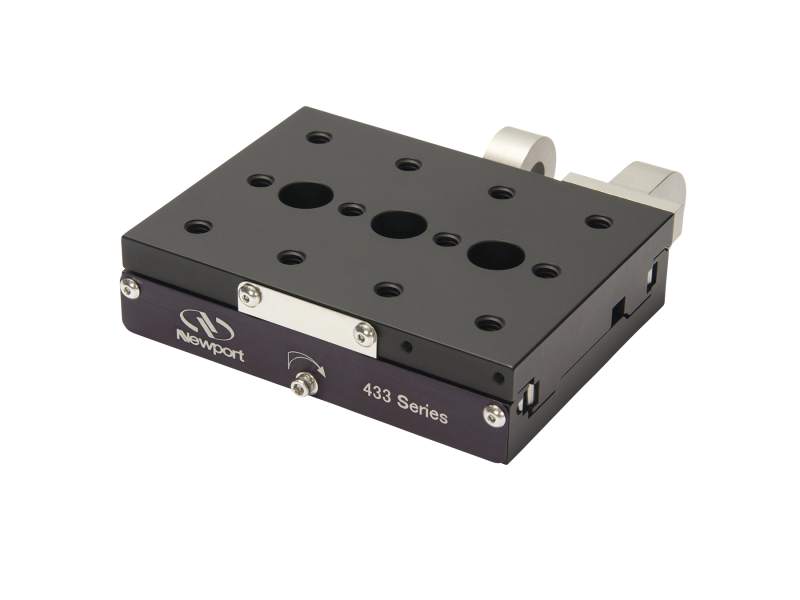

The M-433 translation stage with a 209 N centered load capacity and M6 mounting holes features exceptional performance, usability, and value with precision ball bearing construction. For stability, repeatability, and exceptionally smooth motion, actuators bear upon a hardened carbide insert. Springs provide preload against the actuator tip to eliminate backlash. Although the stage is capable of traveling a full 46 mm with the SM-50 micrometer drive, the actuator mounting blocks can be relocated to accommodate 25 mm drives like the SM-25.  A non-influencing lock provides positive stable positioning and guards against inadvertent adjustments. The 433 does not include an actuator. The following actuators are recommended and may be ordered separately: AJS100-1, AJS100-2, SM25, SM50, DM-25L, and the LTA-HS.
