Angle Bracket, 90°, 1/4-20 (M6) Slots, 25 mm Spacing
Angle Bracket, 90°, 1/4-20 (M6) Slots, 25 mm Spacing
Model: M-360-90
Product Series Overview

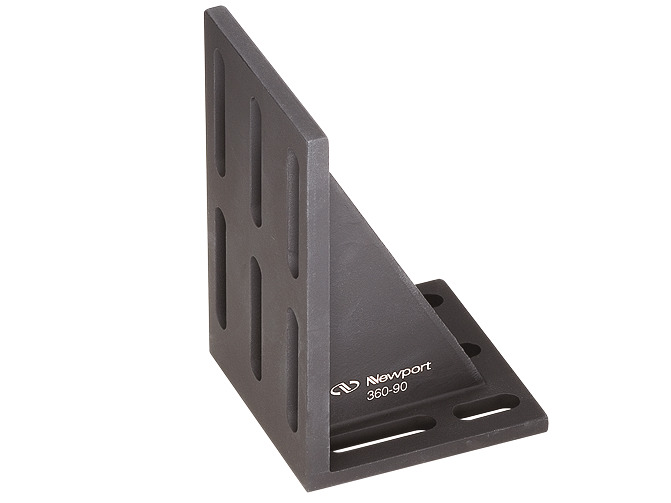

30, 45, 90 Degree Angle Brackets, 360 SeriesThe M-360-90 Angle Bracket is a rigid 90° angled mounting plate with 25 mm separated slotted faces for use with either 1/4-20 or M6 threaded mounting bolts. The 90° angle is accurate to within ±2 arc min.

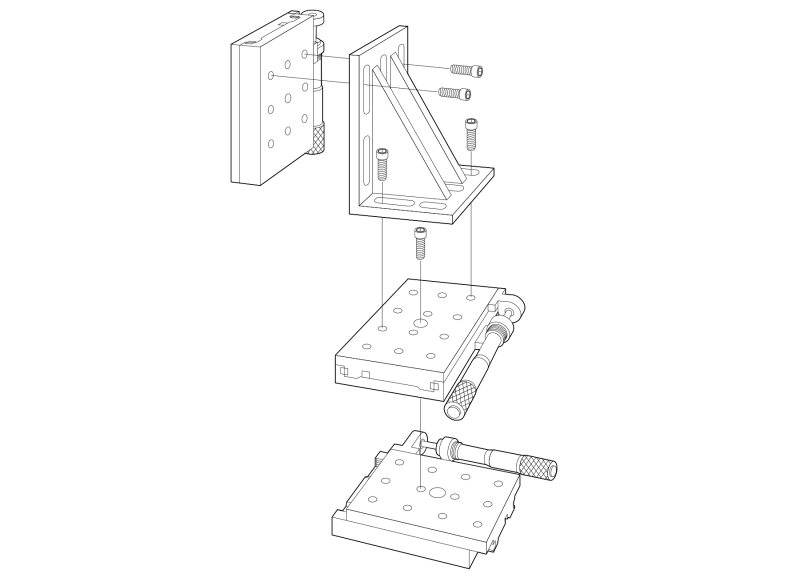

Build Three Axis Stage Assemblies With 90° Mounting Bracket
Model 360-90 is useful for building long travel 3-axis linear stage stacks using manual stages like our Models 423 , 433 , 443 , 426 or 436.
Slotted Bracket Faces for Universal Mounting
360 Series angle brackets feature slots on the mounting surfaces of each, as apposed to individual holes, separated by 1.0 in. for use with either 1/4-20 or M6 threaded mounting bolts. The M-360-90 features the same slots with 25 mm spacing for use with metric optical tables or breadboards.
Resources & Downloads
2D Product Drawings
360-90 ART-S(109.6 kB, PDF)
Other
M-360-90 RoHS Certificate(279 kB, PDF) M-360-90_RoHS2021.pdf(686.1 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-423Linear Stage, High-Performance, Low-Profile, 25 mm, M6 | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-433Linear Stage, High-Performance, Low-Profile, Ball Bearings, 46 mm, M6 | 3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SM-25Vernier Micrometer, 25 mm Travel, 23 lb. Load Capacity, 50.8 TPI | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-423-MICLinear Stage Bundle, Three M-423 Linear Stages with SM-25 Micrometers | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SM-50Vernier Micrometer, 50 mm Travel, 23 lb. Load Capacity, 50.8 TPI | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-370-RCPost Clamp, 38.1 mm Diameter Gear Rack Posts, M6 Thread | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

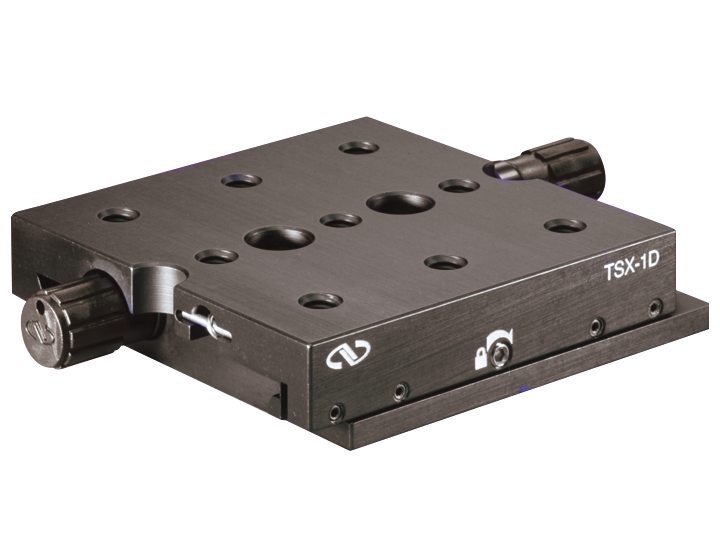

 | M-TSX-1DDovetail Linear Stage, 1.0 in. Travel, Fast-drive 20 TPI Screw, M6 Threads | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
