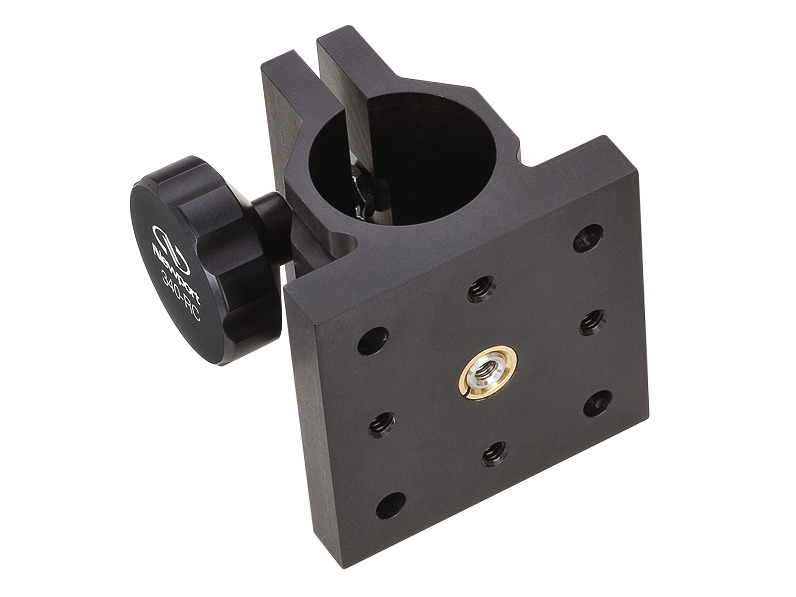

Post Clamp, 38.1 mm Diameter Posts, M6 Thread
Post Clamp, 38.1 mm Diameter Posts, M6 Thread
Model: M-340-RC
Product Series Overview

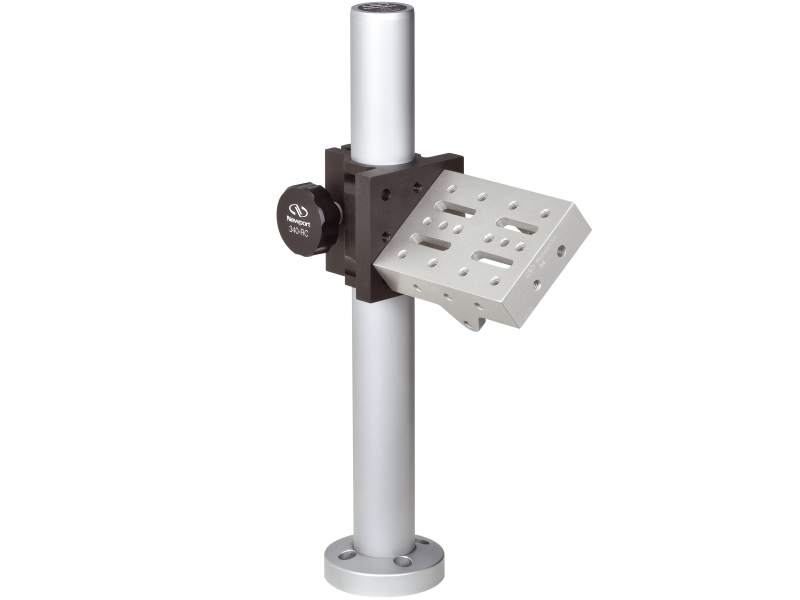

Quick Disconnect Optical Rod ClampsThe M-340-RC Metric Rod Clamp may be manually positioned to any height or any angular orientation around the rod axis by tightening the knurled knob. This clamp is compatible with Models M-40, M-41, 42 and 45 rods. The 340-RC rod clamp incorporates a novel locking peg mechanism allowing components to be attached in a variety of angular orientations. The peg mechanism also allows components to be detached and re-attached quickly and easily. The clamp features an array of clearance and M6 tapped holes for flexibility in attaching and orienting a variety of accessories.
Resources & Downloads
2D Product Drawings
340-RC-D-WG-S(122.1 kB, PDF)
Other
M-340-RC RoHS Certificate(286.3 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 45Damped Optical Post, Mounting Base, 14 in. Height, 0.29 in. CLR | 4 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-40Optical Post, 355.6 mm Height, 38.1 Diameter, M6 Thread | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-360-90Angle Bracket, 90°, 1/4-20 (M6) Slots, 25 mm Spacing | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | ULM-TILTCylindrical Laser Mount, 1.0-1.75 in., High-Resolution AJS Adjusters | |||||
 | M-UMR8.51Linear Stage, Double-Row Ball Bearing, 51 mm Travel, M4 and M6 | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

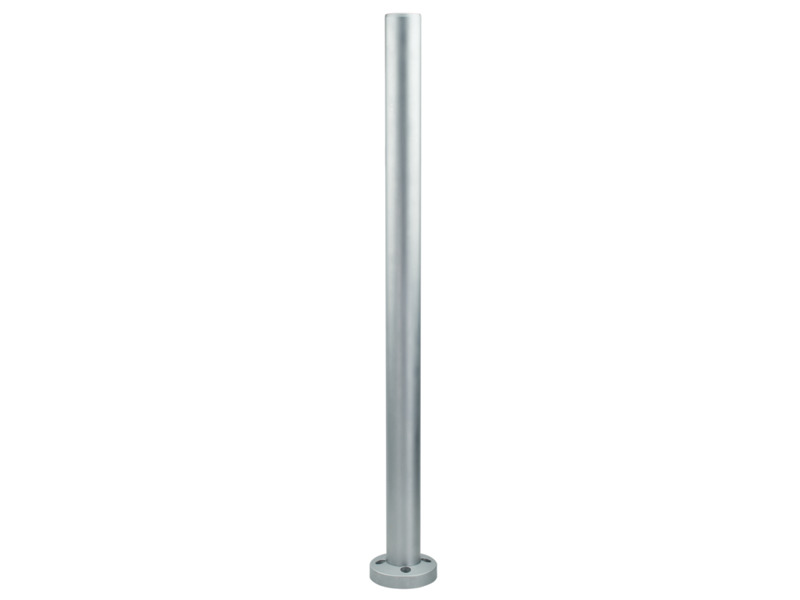

 | 42Optical Post, 24 in. Height, 1.5 in. Diameter, 1/4-20 Thread | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

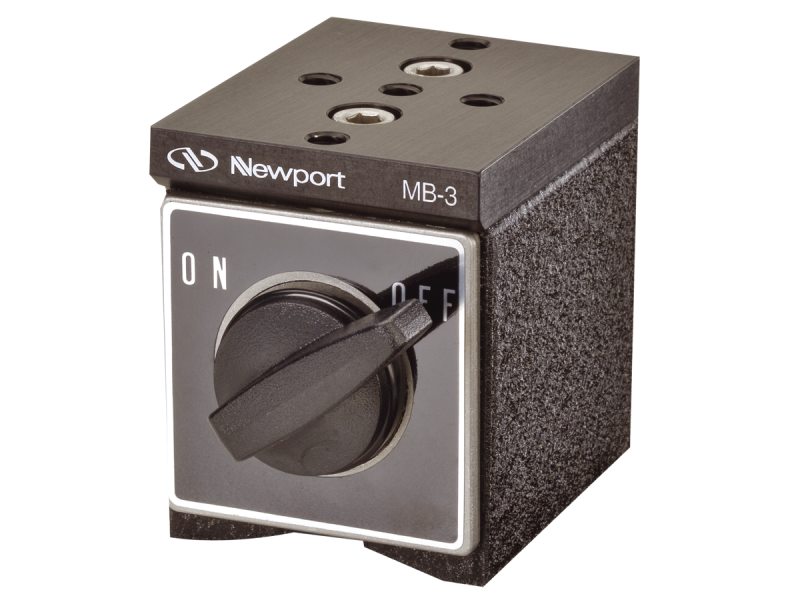

 | M-MB-3Compact Magnetic Base, 90 lb. Holding Force, M6 Thread | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
