Post Clamp, 38.1 mm Diameter Gear Rack Posts, M6 Thread
Post Clamp, 38.1 mm Diameter Gear Rack Posts, M6 Thread
Model: M-370-RC
Product Series Overview

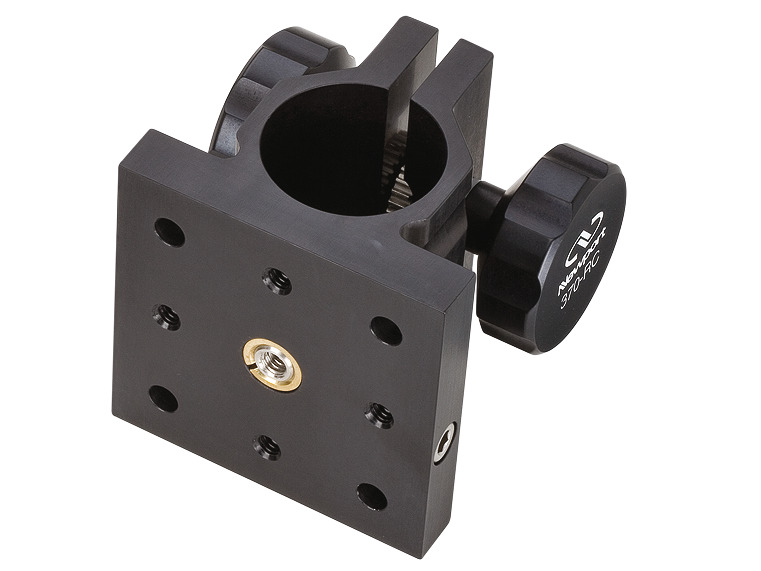

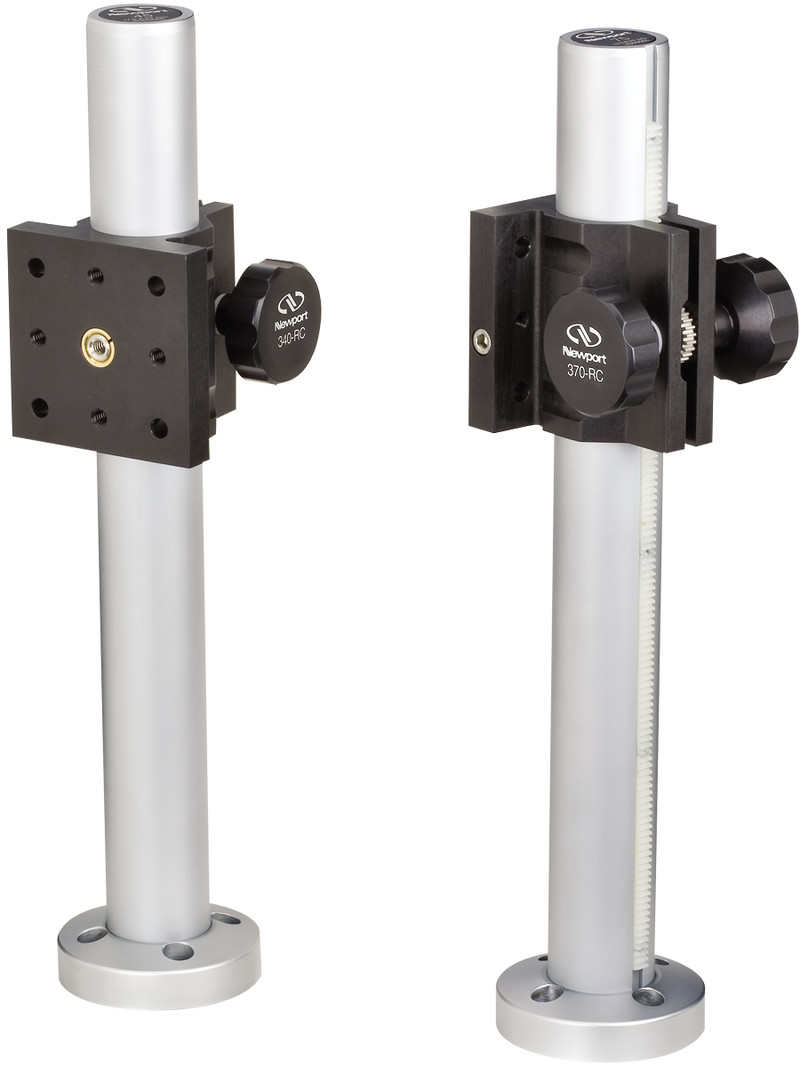

Quick Disconnect Optical Rod ClampsThe M-370-RC Metric Rack-and-Pinion Rod Clamp incorporates independent clamping and a rack-and-pinion positioning mechanism for more precise vertical adjustment. This approach limits the rotation of the clamp to ±0.5°. For 360° of rotation, use the Model 30 Rotary Adaptor. The M-370-RC clamp is compatible with Models M-70, M-71, 72 and 75 rods. The M-370-RC rod clamp incorporates a novel locking peg mechanism allowing components to be attached in a variety of angular orientations. The peg mechanism also allows components to be detached and re-attached quickly and easily. The clamp features an array of clearance and M6 tapped holes for flexibility in attaching and orienting a variety of accessories.
Resources & Downloads
2D Product Drawings
370-RC-S(122 kB, PDF)
Other
M-370-RC RoHS Certificate(287 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-70Optical Post, Gear Rack, 355.6 mm Height, 38.1 Diameter, M6 Thread | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 75Damped Optical Post, Gear Rack, Mounting Base, 14 in. Height, 1.5 in. Diameter | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-360-90Angle Bracket, 90°, 1/4-20 (M6) Slots, 25 mm Spacing | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | ULM-TILT-MCylindrical Laser Mount, 1.0-1.75 in. Diameter, SM-13 Micrometers | |||||
 | M-VPBXY Adjustable Base, M6 Thread | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

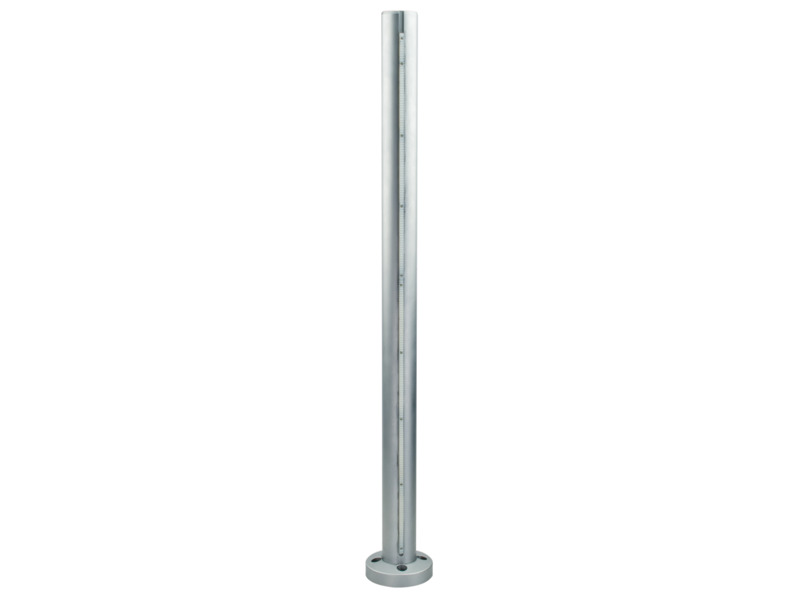

 | 72Optical Post, Gear Rack, Mounting Base, 24 in. Height, 1.5 in. Diameter | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
