Angle Plate, M6 Thru Slots, M4 and M6 Threads

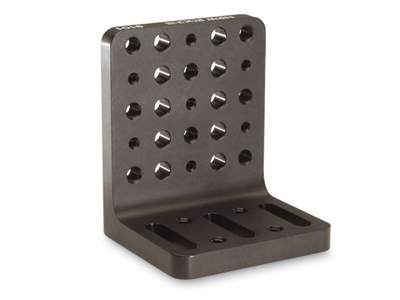

The 9101-M Angle Plate has all surfaces and edges of this machined with parallelism and perpendicularity to within 0.003 in. The slots are 25 mm apart. For easy mounting to the angle plate, there are M6 and M4 threaded and through holes.
Resources & Downloads
2D Product Drawings
99-9101(119.6 kB, PDF)
