Baseplate, 9061 and 9062 Series Stages, 2-56

Baseplate, 9061 and 9062 Series Stages, 2-56

Model: 9061-B

$70

In Stock

Compare

Add to List

Product Series Overview

Translation Stage Base Plates, 906x Series

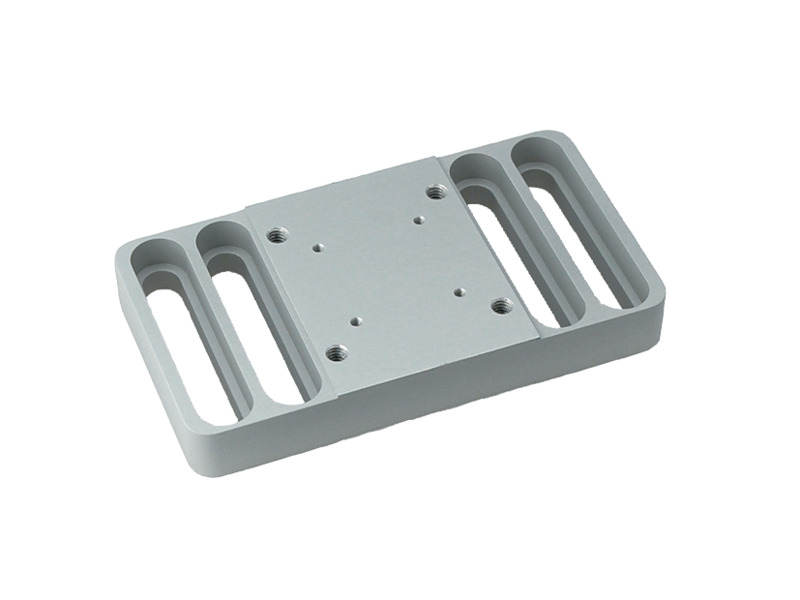

The 9061-B Baseplate is used with 9061 and 9062 Series gothic-arch stages to create a stage with conventional mounting slots.

Specifications

Technical Specs

Type

Base Plate
Height

12.7 mm
Length

92.1 mm
Width

50.8 mm

Thread Type

2-56
Material

Aluminum
Use

9061 & 9062 Series Stage

Type

Base Plate
Height

12.7 mm
Length

92.1 mm
Width

50.8 mm

Thread Type

2-56
Material

Aluminum
Use

9061 & 9062 Series Stage

Resources & Downloads

Other

910112_RoHS2021.pdf (691.8 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9061 B RCa-Drawing (97 kB, PDF)
