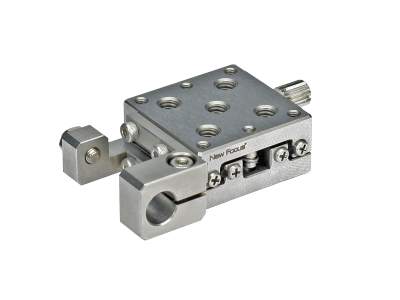

Manual Linear Stage, Low Profile, Gothic-Arch Bearings, 6.5 mm, 8-32

Technical Specs

  • Axes of Travel
    X
  • Maximum Stage Travel
    6.5 mm
  • Thread Type
    2-56 and 8-32
  • Load Capacity
    26 N
  • Vertical Load Capacity
    8 N
  • Material
    Stainless Steel
  • Bearings
    Gothic-Arch Bearings
  • Platform Size
    25 x 25 mm
  • Pitch
    15 arc sec
  • Roll
    10 arc sec
  • Yaw
    20 arc sec
  • Recommended Adjustment Screw
  • Recommended Micrometer
  • Recommended Picomotor Actuator
  • Travel Requirement
    Less Than 12.7 mm
