Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm, 8-32 & 1/4-20, No Baseplate

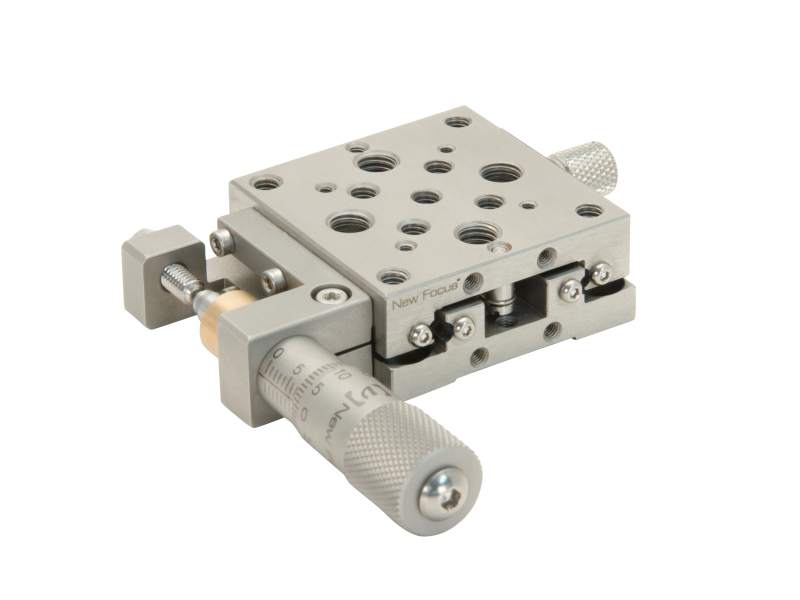

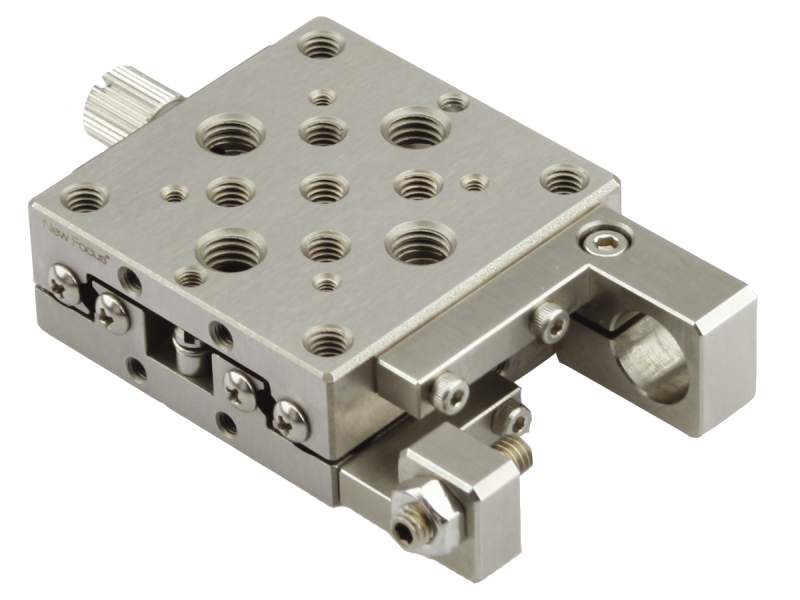

The 9062-COM Low Profile Gothic-Arch Stainless-Steel Commercial Stage is a linear X translation stage with 12.7 mm travel designed to fit directly into your system. The stage has a 40 mm x 40 mm platform and a reduced profile by eliminating the mounting plates. 8-32 and 1/4-20 mounting threads.
Specifications
- Axes of TravelX
- Maximum Stage Travel12.7 mm
- 84 N
- 26 N
- Pitch15 arc sec
- Roll10 arc sec
- Yaw20 arc sec
- MaterialStainless Steel
- BearingsGothic-Arch Bearings
- Platform Size40 x 40 mm
- Thread Type2-56, 8-32, and 1/4-20
- Recommended Adjustment Screw
- Recommended Micrometer
- Recommended Piezo Actuator
