Mirror Mount, Industrial, Vertical Drive, Rear Load, 1 in., 2 Locking Allen-Keys

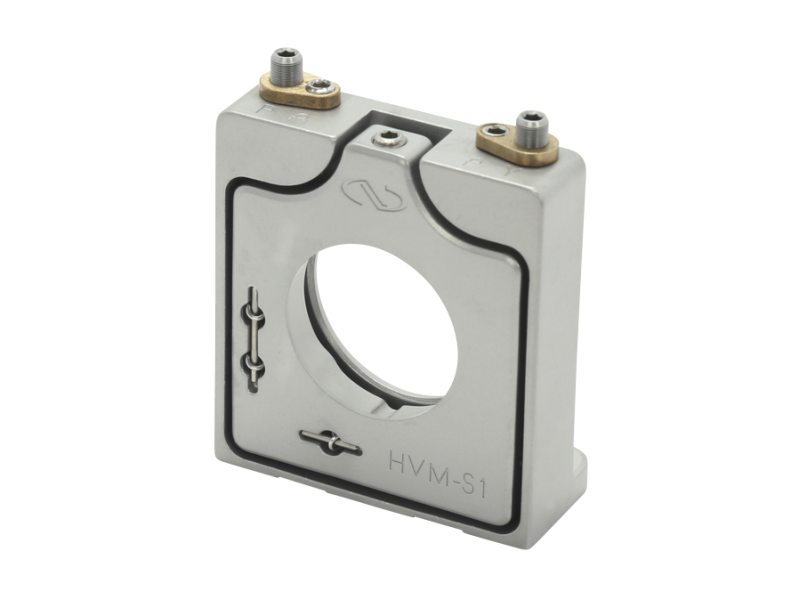

The HVM-S1R Vertical-Drive Industrial Mirror Mount is unlike any optical mount in its class. Its body is made entirely from stainless steel, allowing it to be exceptionally stable. The HVM-S1R is designed to hold 1” optics and is loaded from the rear. Adjustments are made via two top-accessible 100-TPI adjusters which are lockable. Two alignment pin holes are provided for keying the mounting position.
Specifications
- TypeIndustrial
- MechanismKinematic
- Optic Diameter25.4 mm
- Number of Actuators2
- Actuator DriveAllen-Key
- Actuator LocksYes
- Adjustment Screw Thread100 TPI
- θx, θy
- θx = 2.47 arc sec; θy = 2.97 arc sec
- Angular Range±3 °
- Actuator OrientationTop Adjust
- Optic LoadingRear
- MaterialStainless Steel
- Allen-Key, locking
- Thread Type8-32 (M4) CLR
- Optical Axis Height25.4 mm
- Optic Thickness4-7 mm
- Optic MountingSet Screw
- Weight143 g
