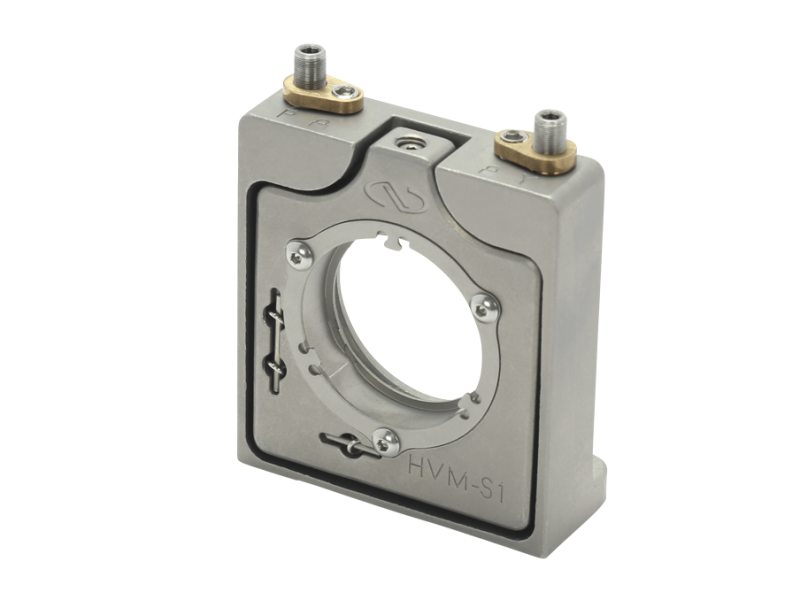

Mirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys

The HVM-S1w Vertical-Drive Industrial Mirror Mount is unlike any optical mount in its class. Its body is made entirely from stainless steel, allowing it to be exceptionally stable. The HVM-S1w is designed to hold 1” optics with Low Wavefront Distortion mounting. Adjustments are made via two top-accessible 100-TPI adjusters which are lockable. Two alignment pin holes are provided for keying the mounting position.

Specifications

Technical Specs

Type
Industrial
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
Yes
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
θx = 2.47 arc sec; θy = 2.97 arc sec
Angular Range
±3 °
Actuator Orientation
Top Adjust

Optic Loading
Front
Material
Stainless Steel
Drive Type
Allen-Key, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Thickness
6-6.5 mm
Optic Mounting
Set Screw
Special Features
Low-Stress Mounting
Weight
138 g

Type
Industrial
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
Yes
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
θx = 2.47 arc sec; θy = 2.97 arc sec
Angular Range
±3 °
Actuator Orientation
Top Adjust

Optic Loading
Front
Material
Stainless Steel
Drive Type
Allen-Key, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Thickness
6-6.5 mm
Optic Mounting
Set Screw
Special Features
Low-Stress Mounting
Weight
138 g

Resources & Downloads

2D Product Drawings

HVM-S1w(105.3 kB, PDF)

Other

HVM-S1W RoHS Certificate(280.7 kB, PDF)
