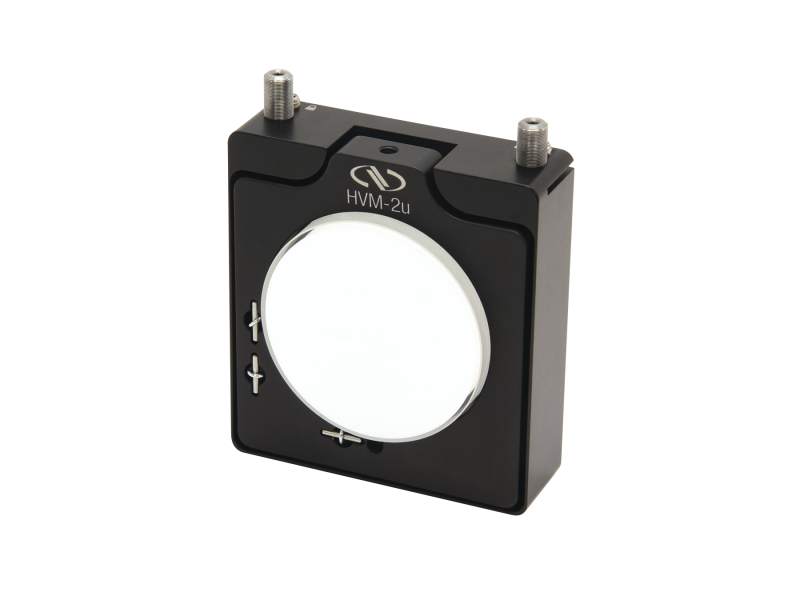

The HVM-2u is a vertical drive optic mount made to mount 2-in. optics for use in industrial applications. The HVM’s unique ball-and-wedge drive mechanism enhances the overall performance by reducing stiction and backlash to negligible levels while maintaining a compact and robust package. It features a front-loading design to ensure easy installation of the mirror and has other standard features like a 1.5-in. optical axis height, 80-TPI hex key locking actuators, and an exceptionally thin 21-mm profile. The HVM-2u is designed with universal mounting options including a center clearance hole for #8 or M4 screws, two #8 threaded mounting holes and two M4 threaded mounting holes.

Specifications

Technical Specs

Type
Industrial
Mechanism
Kinematic
Optic Diameter
50.8 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
Yes
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
2.0 arc sec
Angular Range
±3.5 °

Actuator Orientation
Top Adjust
Optic Loading
Front
Material
Aluminum
Drive Type
Allen-Key, locking
Thread Type
8-32 & M4
Optical Axis Height
38.1 mm
Optic Mounting
Set Screw

Type
Industrial
Mechanism
Kinematic
Optic Diameter
50.8 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
Yes
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
2.0 arc sec
Angular Range
±3.5 °

Actuator Orientation
Top Adjust
Optic Loading
Front
Material
Aluminum
Drive Type
Allen-Key, locking
Thread Type
8-32 & M4
Optical Axis Height
38.1 mm
Optic Mounting
Set Screw

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

HVM-2u(76.1 kB, PDF)

Other

HVM-2U_RoHS2021.pdf(681.8 kB, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Avail.	Price
KD.75Large Adjustment Knob, 2.0 mm Hex Key, Silver	UNIVERSAL	In Stock	$10.90

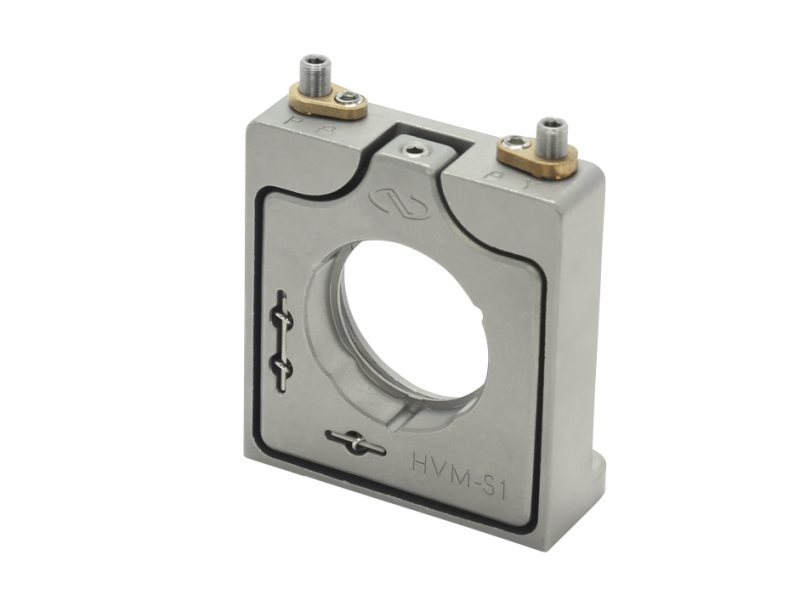

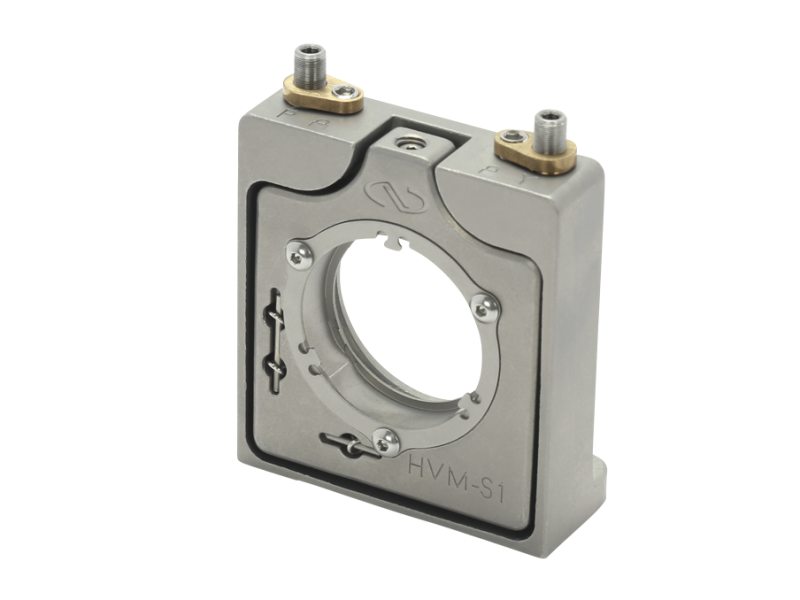

HVM-S1wMirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$255

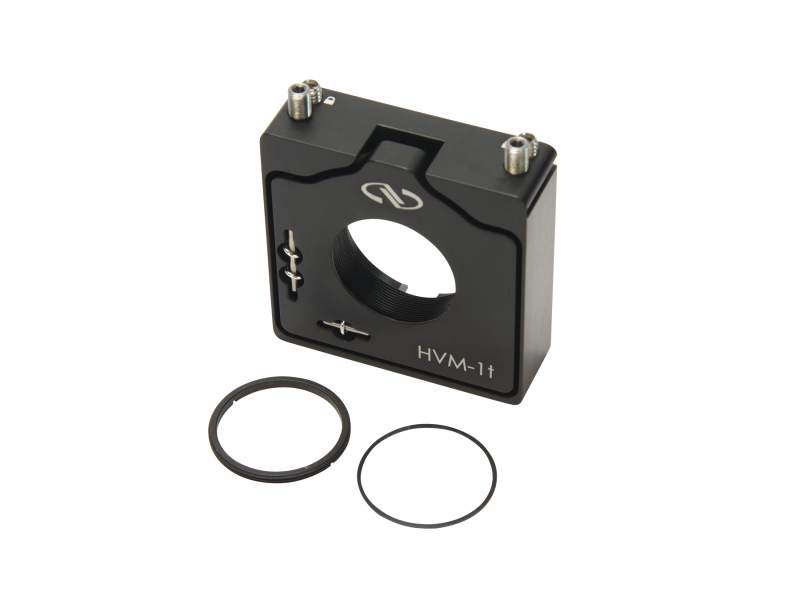

HVM-1tMirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$218
HVM-S1iMirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$237
SPC034AR.33Plano-Concave Lens, Fused Silica, 25.4 mm, -50 mm EFL, 1064 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$170

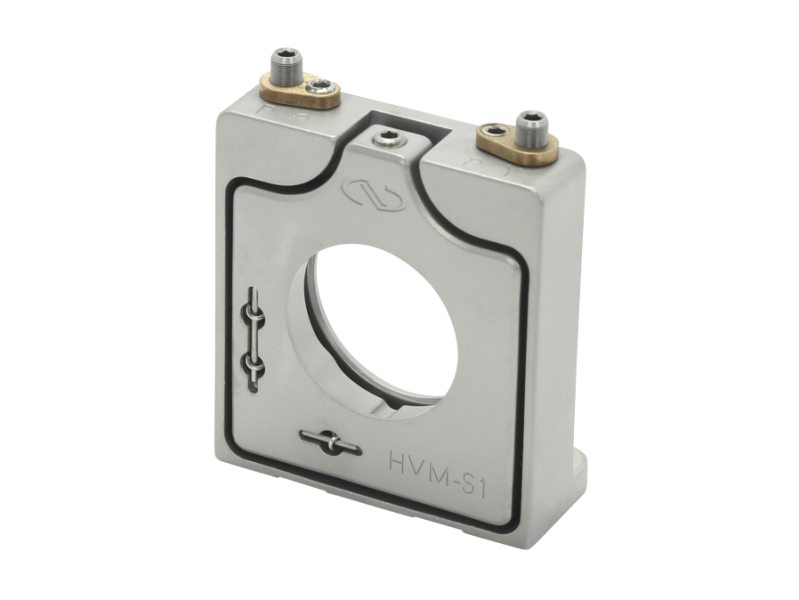

HVM-S1rMirror Mount, Industrial, Vertical Drive, Rear Load, 1 in., 2 Locking Allen-Keys	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$237
