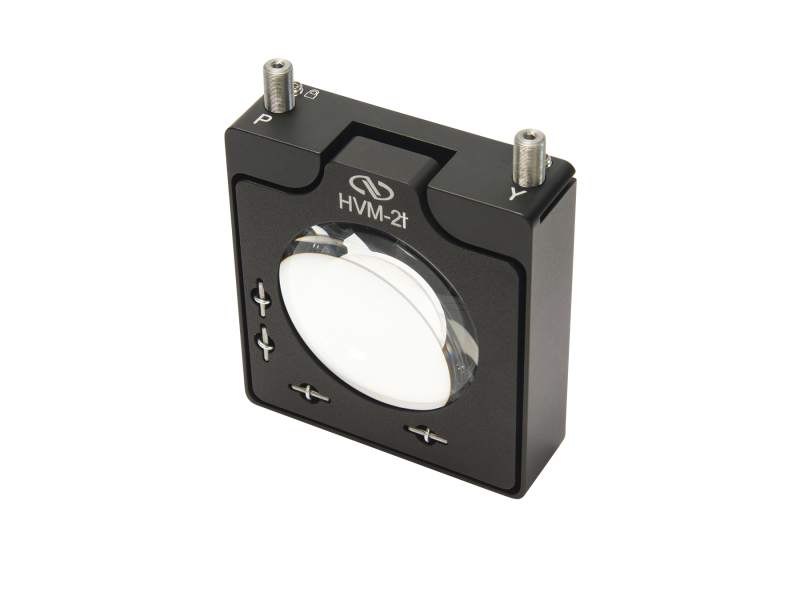

Mirror Mount, Industrial, Vertical Drive, Thin Optic, 2 in., 2 Locking Allen-Keys

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    50.8 mm
  • Adjustment Screw Thread
    80 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    2.0 arc sec
  • Angular Range
    ±3.5 °
  • Material
    Anodized Aluminum
  • Drive Type
    Allen-Key, locking
  • Thread Type
    8-32 & M4
  • Optical Axis Height
    38.1 mm
  • Optic Thickness
    6.7 mm
  • Special Features
    Threaded Aperture
