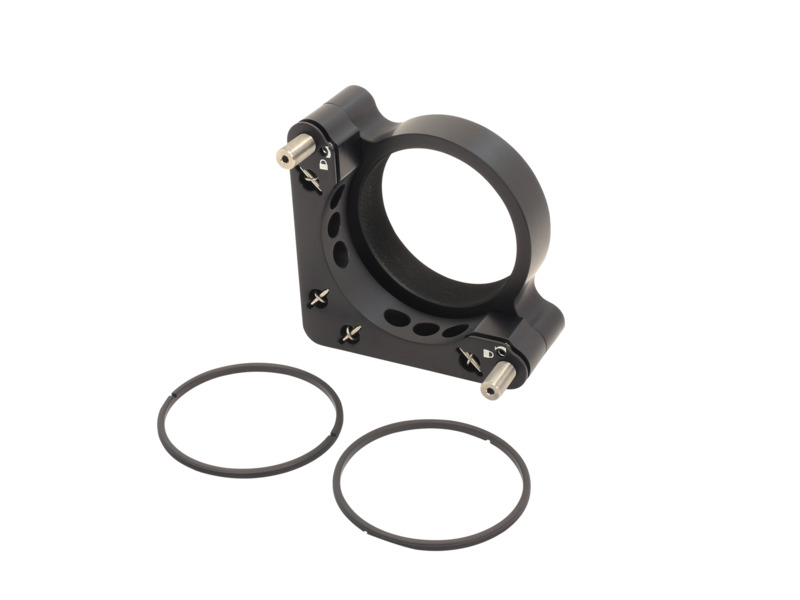

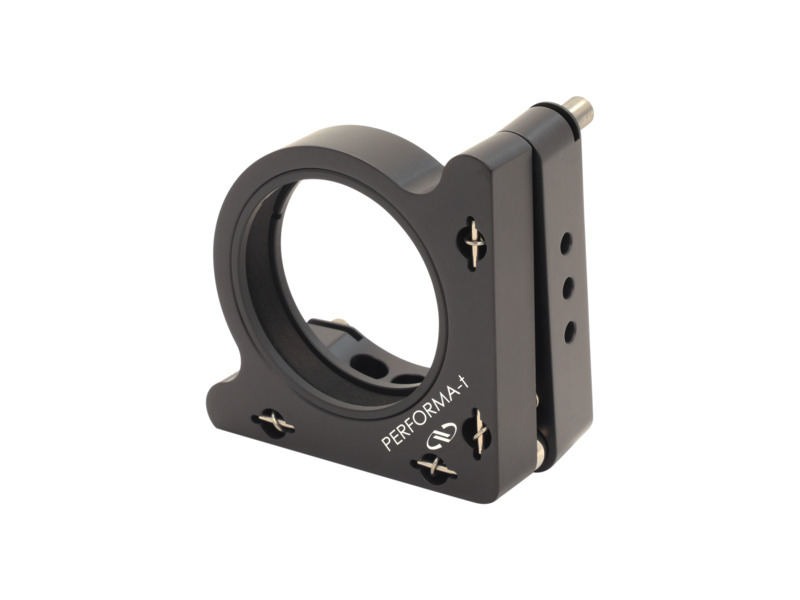

The P200-At28 is a kinematic optic mount specifically made for thin 2-in. optics. The mount features a fully threaded design to allow for mounting of lens tubes or other items with 2.035-40 (SM2) threads. It uses two threaded retaining rings to secure optics having a thickness of 9.2 mm or less. The mount has standard features like a 1.5-in. optical axis height, two 80-TPI hex key locking actuators, and an exceptionally thin 38.5-mm nominal profile. The P200-At28 is designed with a center clearance hole for #8 or M4 screws.
Performa-i Industrial Mount Features
A slim profile, less than an inch thick, to save space
Newport's patented thread lock for better long-term stability
Type-III, hard anodized surfaces for wear resistance of the ball-tipped adjusters
Threaded Aperture Mounts for Thin Optic

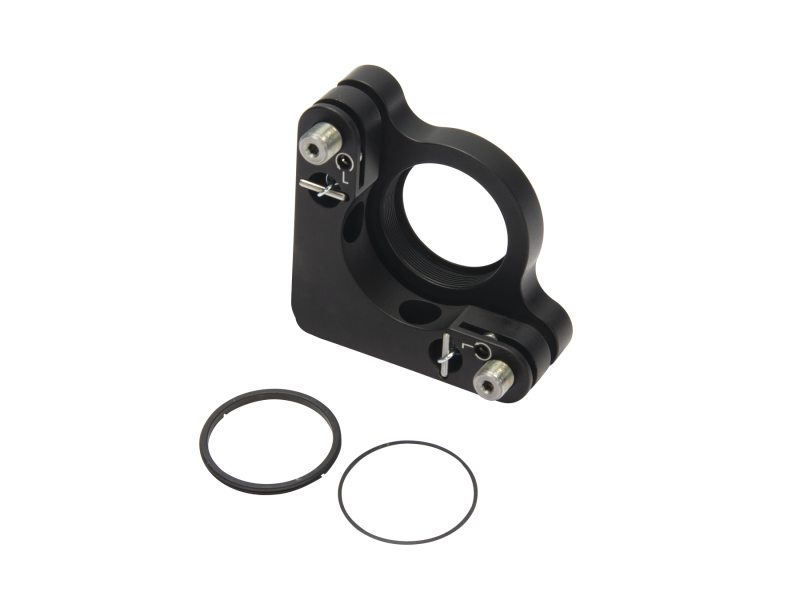

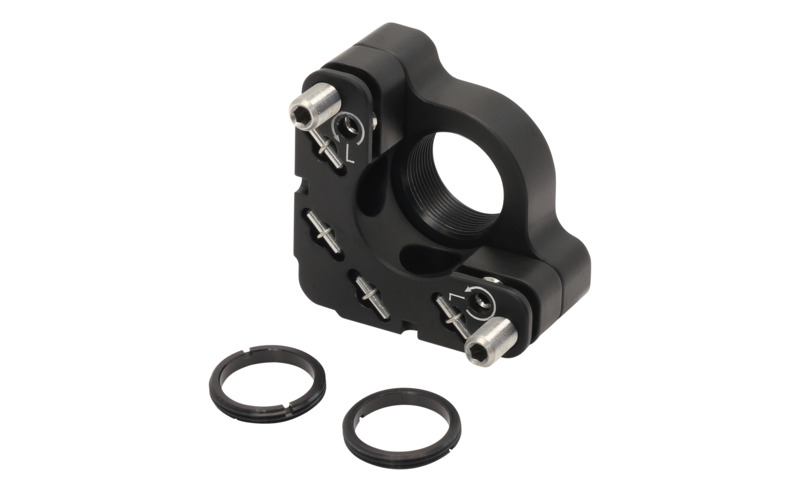

The threaded aperture versions are designed to hold thin optics and lenses with threaded retainers. P100-At28 and P100-At38 include not only a threaded retaining ring but also a protective Delrin spacer to prevent scratching the optic's coating or surface as it is secured. P50-At21 and P200-At28 feature a fully threaded design and include two retaining rings for holding the optic. They also allow for mounting of lens tubes or other optical components with matching threads. Vacuum pick-up tools and spanner wrench facilitate installation and removal of the optic.
Locking Allen-Key Adjusters
Performa-i Series industrial mounts feature Allen-key adjustments to save space and prevent unintended adjustment. A flexure lock is built into the mount body and exerts a tangential force on the screw to prevent rotation. Adjustment and locking actions are accomplished using a single tool from the same side of the mount.
Stability Ensured by Kinematic Design
The design of the these mounts follows kinematic principles to ensure the highest stability and precision. Each degree of freedom is constrained just once using the Cone, V, and Flat configuration.
