Mirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys

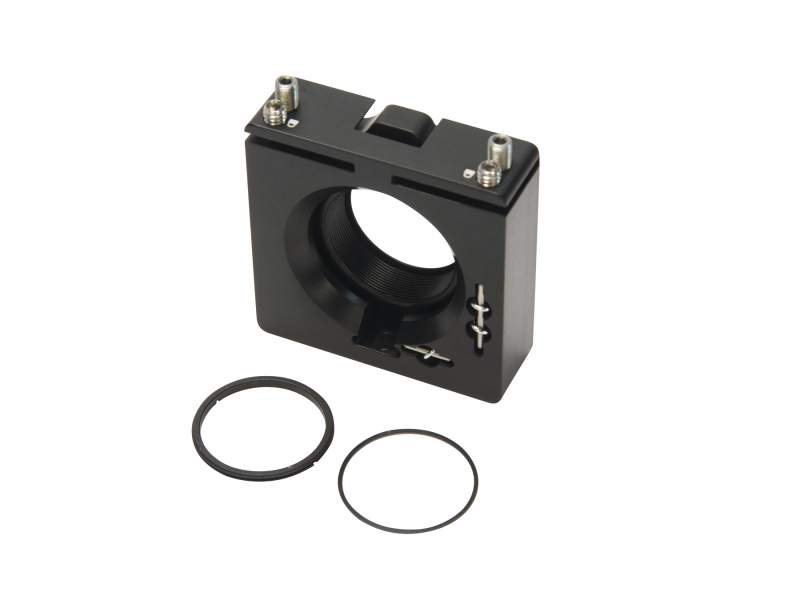

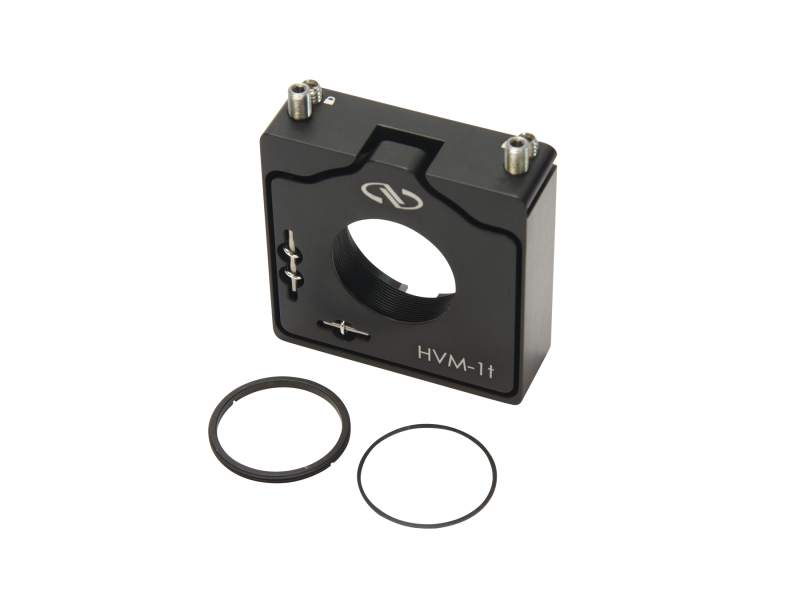

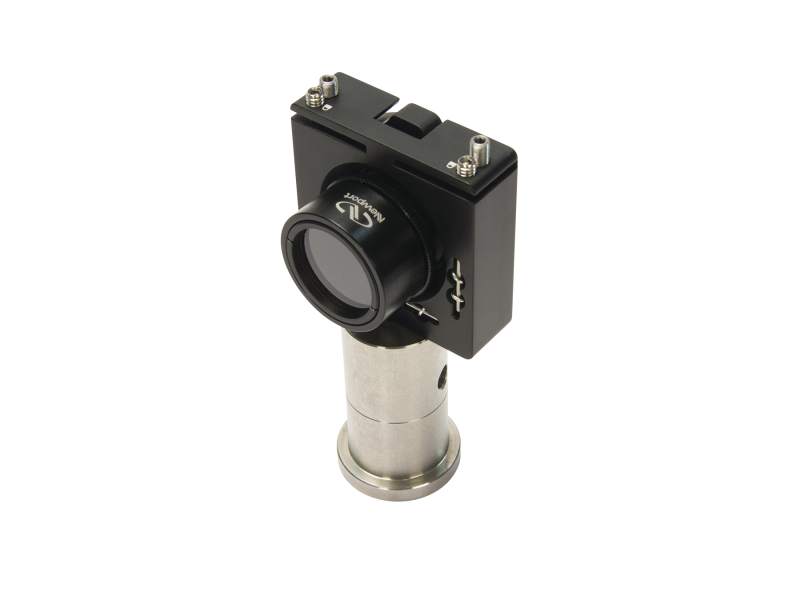

The HVM-1t is a vertical drive optic mount specifically made for thin 1-in. optics. The mount uses a threaded retaining ring to secure optics having a thickness of 6.2 mm or less. Also included with the mount is a 0.5-mm thick Delrin washer to protect the optic from damage during tightening of the retaining ring. The HVM-1t also features a rear-loading design to ensure the front face of the optic is always in the same location regardless of its thickness. The mount has standard features like a 1-in. optical axis height, 80-TPI hex key locking actuators, and an exceptionally thin 16-mm profile. The HVM-1t is designed with several mounting options including a center clearance hole for #8 or M4 screws, two #8 threaded mounting holes and two M4 threaded mounting holes.
Keep Your Hands Out of Harms Way
Top adjust mounts have their adjustment screws located above where the optic is held so that your hands never have to cross into the beam path area.
Compact Geometry
Top adjust mirror mounts feature a slimmer profile and smaller footprint than traditional mounts. As such, they can often fit more easily into tight or restricted spaces when traditional mounts may not. Top adjust mirror mounts are ideal for use in laser cavities, OEM, and industrial applications due to their exceptionally slim profile and accessible actuators.
Locking Allen-Key Adjusters
Left: Lever lock. Right: Flexure lock built into the mount body.
All of Newport's industrial top adjust mounts have locking Allen-Key adjustments to save space and prevent unintended adjustment. Among them, all aluminum mounts have a flexure lock built into the mount body, and stainless steel mounts feature a lever lock. Both types of locks exert a tangential force on the screw to prevent rotation. Adjustment and locking actions are accomplished using a single tool from the same side of the mount.
Alignment Pin Holes

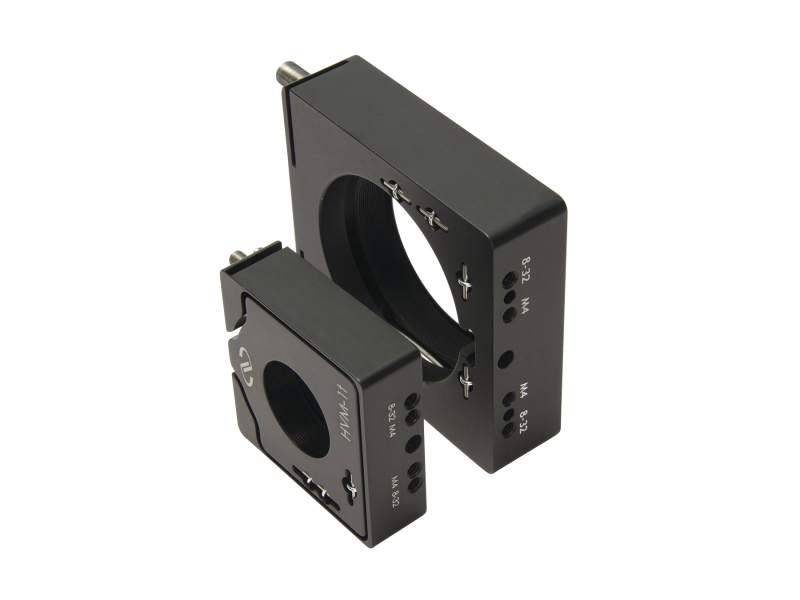

These mounts feature alignment pin holes (illustrated in red) on the bottom (base) of the mount to enable keying of the position and orientation by means of dowel pins for repeatable system integration and to prevent clocking effects. (Note: Dowel pins not included with mount.) This is especially helpful in OEM applications.
Rear-Loading Keeps Optic Surface in Consistent Location
Left: Front-Load; Right: Rear-Load
Both the HVM-05r, HVM-S1r rear load mounts and HVM-1t, HVM-S1t, HVM-2t threaded aperture mounts feature rear-loading design to ensure that the front surface of the optic would be in the same mounting location regardless of its thickness. In contrast, a front-loading mount would locate a thin optic recessed within the mount thereby limiting its reflective clear aperture.
Threaded Aperture Mounts for Thin Optic

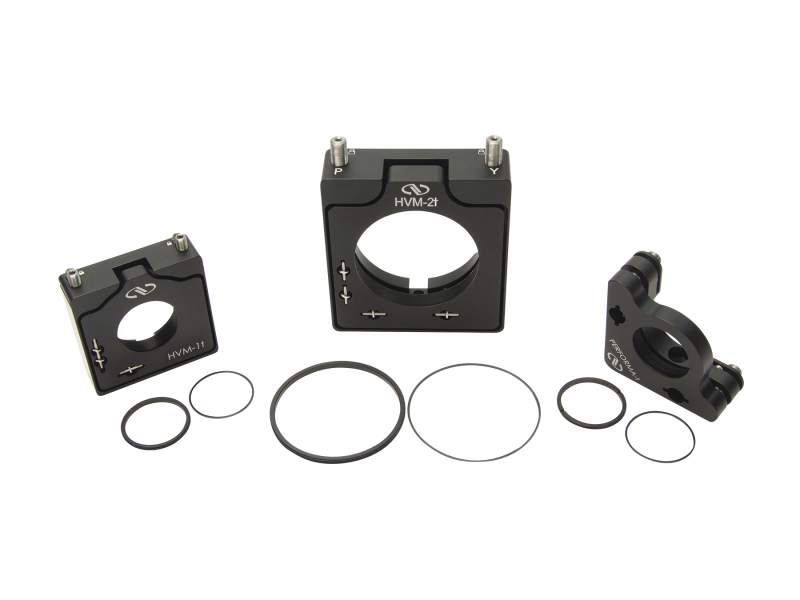

HVM-1t, HMV-2t, P100-At28
The HVM-1t, HVM-S1t, HVM-2t top adjust threaded aperture mounts are designed to hold thin optics and lenses with a threaded retainer. They include not only a threaded retaining ring but also a protective Delrin spacer to prevent scratching the optic's coating or surface as it is secured. Vacuum pick-up tools and spanner wrench facilitate installation and removal of the optic.
Specifications
-
Mechanism
Kinematic
-
Optic Diameter
25.4 mm
-
Number of Actuators
2
-
Actuator Locks
Yes
-
Adjustment Screw Thread
80 TPI
-
θx, θy
-
2.5 arc sec
-
Angular Range
±2.5 °
-
Optic Loading
Rear
-
Material
Anodized Aluminum
-
Allen-Key, locking
-
Retaining Ring Thread
1.035-40
-
Thread Type
8-32 & M4
-
Optical Axis Height
25.4 mm
-
Optic Thickness
6.2 mm
-
Special Features
Threaded Aperture
-
Mechanism
Kinematic
-
Optic Diameter
25.4 mm
-
Number of Actuators
2
-
Actuator Locks
Yes
-
Adjustment Screw Thread
80 TPI
-
θx, θy
-
2.5 arc sec
-
Angular Range
±2.5 °
-
Optic Loading
Rear
-
Material
Anodized Aluminum
-
Allen-Key, locking
-
Retaining Ring Thread
1.035-40
-
Thread Type
8-32 & M4
-
Optical Axis Height
25.4 mm
-
Optic Thickness
6.2 mm
-
Special Features
Threaded Aperture
