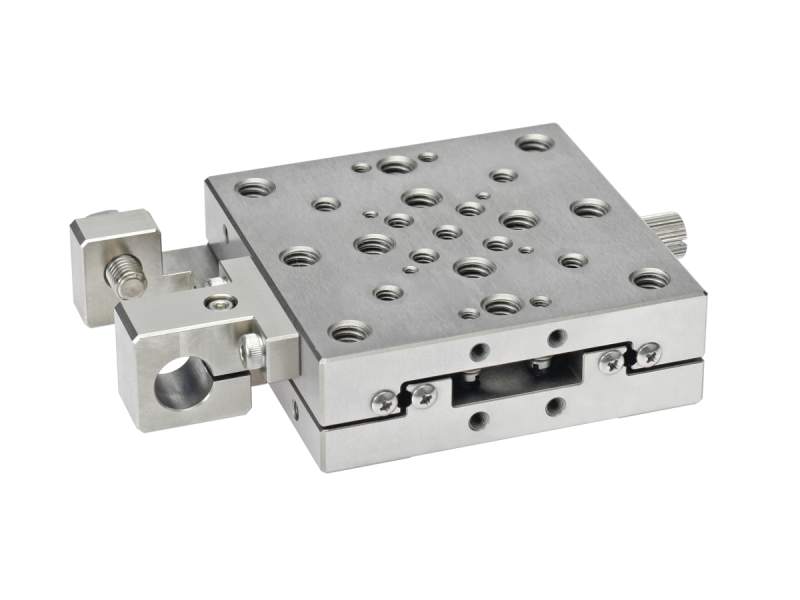

Manual Linear Stage, Gothic-Arch Bearings, 25.4 mm, 8-32 & 1/4-20, No Baseplate

Model: 9063-COM

$537.00

In Stock

Compare

Add to List

Product Series Overview

25.4 mm Travel Gothic Arch Ball Bearing Stages

The 9063-COM Low Profile Gothic-Arch Stainless-Steel Commercial Stage is a linear 25.4 mm travel X translation stage designed to fit directly into your system. The stage has a 65 mm x 65 mm platform and a reduced profile by eliminating the mounting plates. It offers 2-56, 8-32, and 1/4-20 mounting threads. Call our engineers to learn more about using these stages in your system.

Specifications

Technical Specs

Axes of Travel

X
Maximum Stage Travel

25.4 mm
Centered Normal Load Capacity

173 N
Vertical Axial Load Capacity

35 N
Pitch

15 arc sec
Roll

10 arc sec
Yaw

20 arc sec
Material

Stainless Steel

Bearings

Gothic-Arch Bearings
Platform Size

65 x 65 mm
Thread Type

2-56, 8-32, and 1/4-20
Recommended Adjustment Screw

9302
Recommended Micrometer

9356
Recommended Piezo Actuator

8303

Axes of Travel

X
Maximum Stage Travel

25.4 mm
Centered Normal Load Capacity

173 N
Vertical Axial Load Capacity

35 N
Pitch

15 arc sec
Roll

10 arc sec
Yaw

20 arc sec
Material

Stainless Steel

Bearings

Gothic-Arch Bearings
Platform Size

65 x 65 mm
Thread Type

2-56, 8-32, and 1/4-20
Recommended Adjustment Screw

9302
Recommended Micrometer

9356
Recommended Piezo Actuator

8303
