Angle Bracket, 9063 Series Stages, XZ and XYZ Configurations

Angle Bracket, 9063 Series Stages, XZ and XYZ Configurations

Model: 9063-A

$113

In Stock

Compare

Add to List

Product Series Overview

90 Degree Angle Brackets, 906x Series

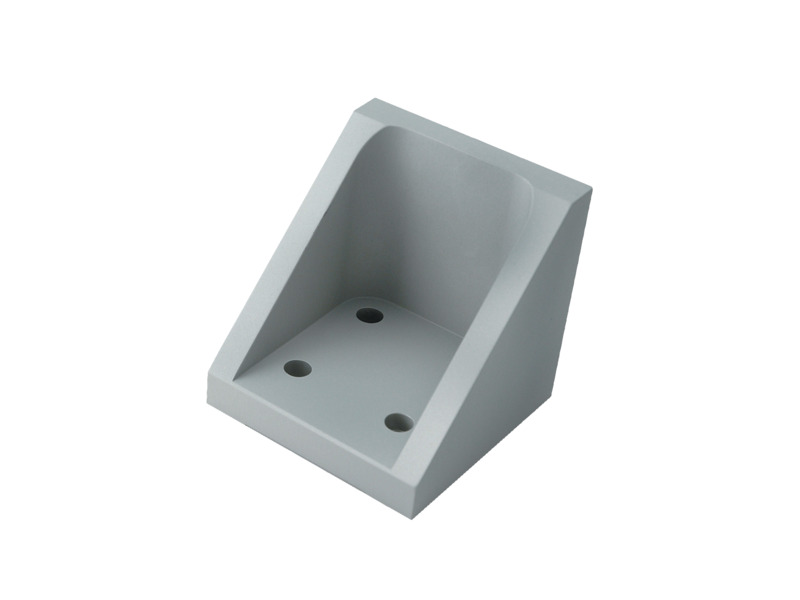

The 9063-A Angle Bracket is used with the 9063 Series gothic-arch stages to build XZ, and XYZ configurations.

Specifications

Technical Specs

Type

90° Angle Bracket
Material

Aluminum

Thread Type

8-32 and 1/4-20

Type

90° Angle Bracket
Material

Aluminum

Thread Type

8-32 and 1/4-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

ENGINEER - 9063_A_RC (201.1 kB, PDF)

Other

910120_RoHS2021.pdf (692.5 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL		In Stock	$19.40
		BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL		In Stock	$35
		SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL		3 Weeks	$128
		TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL		In Stock	$41
		BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL		In Stock	$38

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9063-A-M Angle Bracket, 9063-M Series Stages, XZ and XYZ Configurations	METRIC		In Stock	$92
		9061-A Angle Bracket, 9061 Series Stages, XZ and XYZ Configurations	IMPERIAL		In Stock	$94
		9063-B Baseplate, 9063 Series Stages, 2-56, 8-32 &1/4-20	IMPERIAL		In Stock	$94
		9062-A Angle Bracket, 9062 Series Stages, XZ and XYZ Configurations	IMPERIAL		In Stock	$94

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9063-XY XY Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20	IMPERIAL		In Stock	$1,111
		9063-XYZ XYZ Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20	IMPERIAL		In Stock	$1,683
		9063-COM Manual Linear Stage, Gothic-Arch Bearings, 25.4 mm, 8-32 & 1/4-20, No Baseplate	IMPERIAL		Contact Us	$521
		9063-X Manual Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20	IMPERIAL		2 Weeks	$607
		9063-XZ XZ Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20	IMPERIAL		In Stock	$1,197
