Manual Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20

Model: 9063-X

$607

Show

Compare

Add to List

Product Series Overview

25.4 mm Travel Gothic Arch Ball Bearing Stages

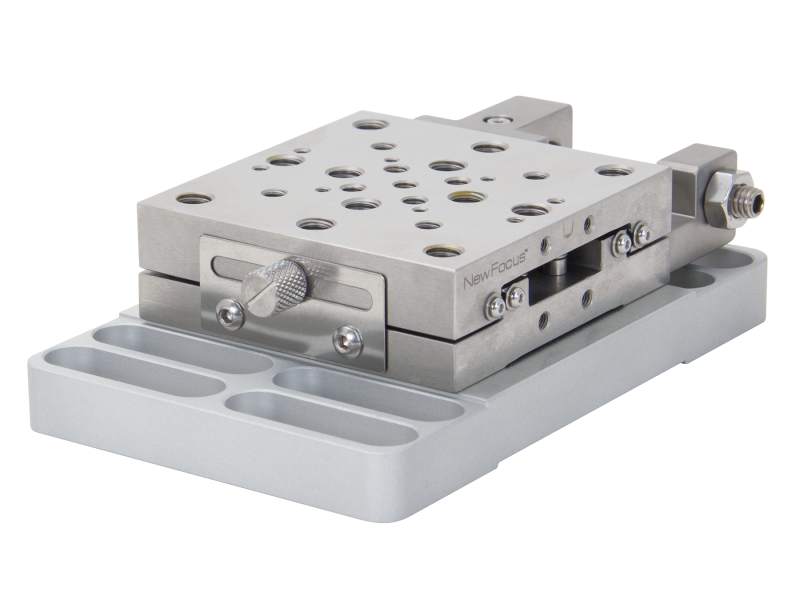

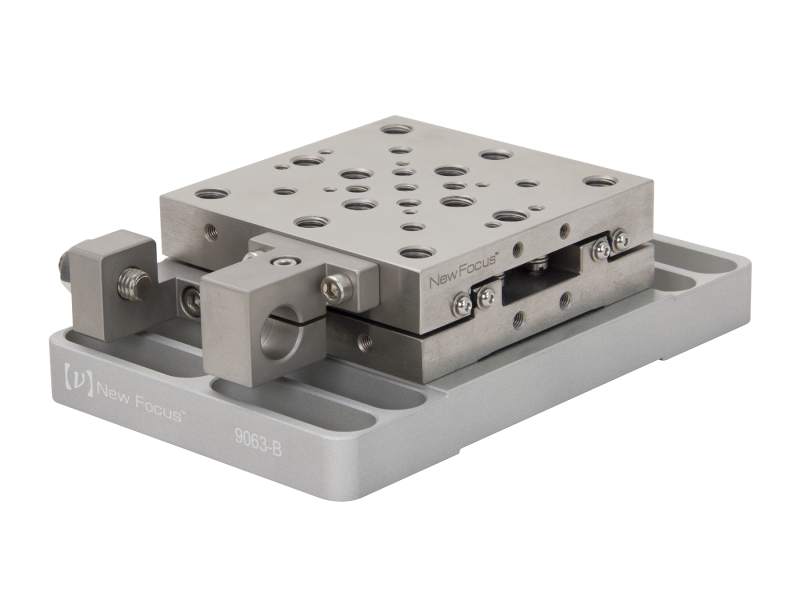

The 9063-X Gothic-Arch X Translation Stage uses stainless-steel construction and thumbscrew locks to offer the ultimate in stability and rigidity. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability over the 25.4 mm travel range. The 65 mm x 65 mm platform features 2-56, 8-32 and 1/4-20 mounting holes. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. These stages are compatible with our goniometers and rotation stages.

Specifications

Technical Specs

Axes of Travel

X
Maximum Stage Travel

25.4 mm
Centered Normal Load Capacity

173 N
Vertical Axial Load Capacity

35 N
Pitch

15 arc sec
Roll

10 arc sec
Yaw

20 arc sec
Material

Stainless Steel

Bearings

Gothic-Arch Bearings
Platform Size

65 x 65 mm
Thread Type

2-56, 8-32, and 1/4-20
Recommended Adjustment Screw

9302
Recommended Micrometer

9356
Recommended Piezo Actuator

8303

Axes of Travel

X
Maximum Stage Travel

25.4 mm
Centered Normal Load Capacity

173 N
Vertical Axial Load Capacity

35 N
Pitch

15 arc sec
Roll

10 arc sec
Yaw

20 arc sec
Material

Stainless Steel

Bearings

Gothic-Arch Bearings
Platform Size

65 x 65 mm
Thread Type

2-56, 8-32, and 1/4-20
Recommended Adjustment Screw

9302
Recommended Micrometer

9356
Recommended Piezo Actuator

8303
