| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
9061-A Angle Bracket, 9061 Series Stages, XZ and XYZ Configurations |
In Stock
|
$97 |
|
|||
|
|
9061-A-M Angle Bracket, 9061-M Series Stages, XZ and XYZ Configurations |
|
$97 |
|
|||
|
9062-A Angle Bracket, 9062 Series Stages, XZ and XYZ Configurations |
In Stock
|
$97 |
|
|||
|
|
9062-A-M Angle Bracket, 9062-M Series Stages, XZ and XYZ Configurations |
In Stock
|
$97 |
|
|||
|
9063-A Angle Bracket, 9063 Series Stages, XZ and XYZ Configurations |
In Stock
|
$116 |
|
|||
|
|
9063-A-M Angle Bracket, 9063-M Series Stages, XZ and XYZ Configurations |
In Stock
|
$95 |
|
|||
|
9041 90 Degree Angle Bracket, 9066 Series Stages, 8-32 and 1/4-20 |
In Stock
|
$137 |
|
|||
|
|
9041-M 90 Degree Angle Bracket, 9066-M Series Stages, M4 and M6 |
|
$137 |
|
|||
|
9161 90 Degree Angle Bracket, 9067 Series Stages, 8-32 and 1/4-20 |
1 Week
|
$166 |
|
|||
|
|
9161-M 90 Degree Angle Bracket, 9067-M Series Stages, M4 and M6 |
In Stock
|
$166 |
|
|||
|
9101NF Angle Plate, 1/4-20 Thru Slots, 8-32 and 1/4-20 Threads |
In Stock
|
$129 |
|
|||
|
|
9101-M Angle Plate, M6 Thru Slots, M4 and M6 Threads |
In Stock
|
$129 |
|
|||
|
9102NF Angle Plate, 1/4-20 (M6) Slot, 8-32, M4, 2-56 Thread |
In Stock
|
$129 |
|

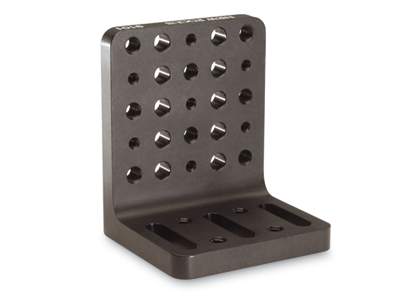

The large 9101NF bracket has surfaces and edges which are machined with parallelism and perpendicularity to within 0.003". The slots are 1" or, in the metric version, 25.0 mm apart. For easy mounting to the angle plate, there are 1/4-20 (M6) and 8-32 (M4) threaded and through holes.

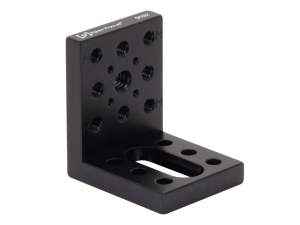

The smaller 9102NF angle plate is ideal for making quick setups on an optical table. The black-anodized aluminum plate has a convenient array of 8-32 and M4 threaded holes and a 1/4-20 (M6) through hole for use with conventional mounts. There are also four 2-56 threaded holes for use with our Tiny mirror mounts.
