Manual Linear Stage, Gothic-Arch Bearings, 25.4 mm, M4 and M6, No Baseplate

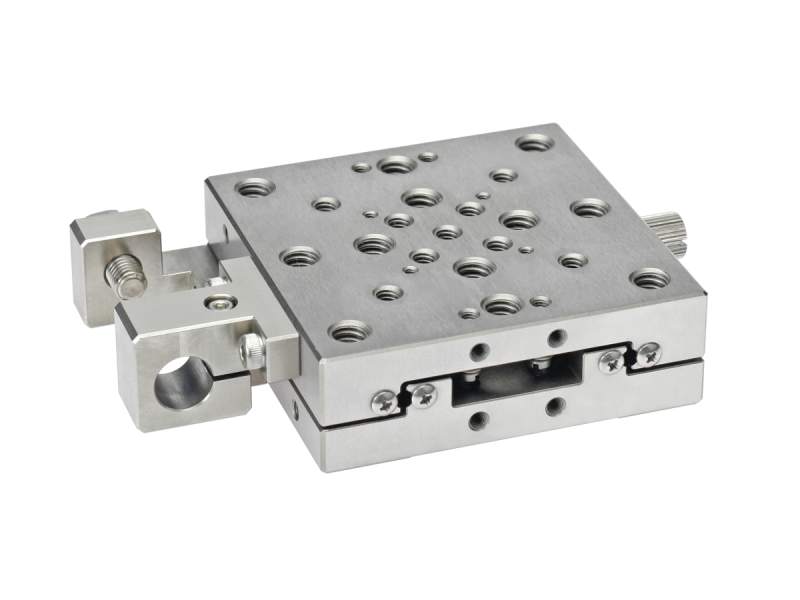

The 9063-COM-M Low Profile Gothic-Arch Stainless-Steel Commercial Stage is a linear 25.4 mm travel X translation stage designed to fit directly into your system. The stage has a 65 mm x 65 mm platform and a reduced profile by eliminating the mounting plates. It offers M2, M4 and M6 mounting threads. Call our engineers to learn more about using these stages in your system.
Resources & Downloads
2D Product Drawings
9063-COM (M)- Drawing(92.4 kB, PDF)
Other
9063-COM-M RoHS 2023(214.8 kB, PDF)
