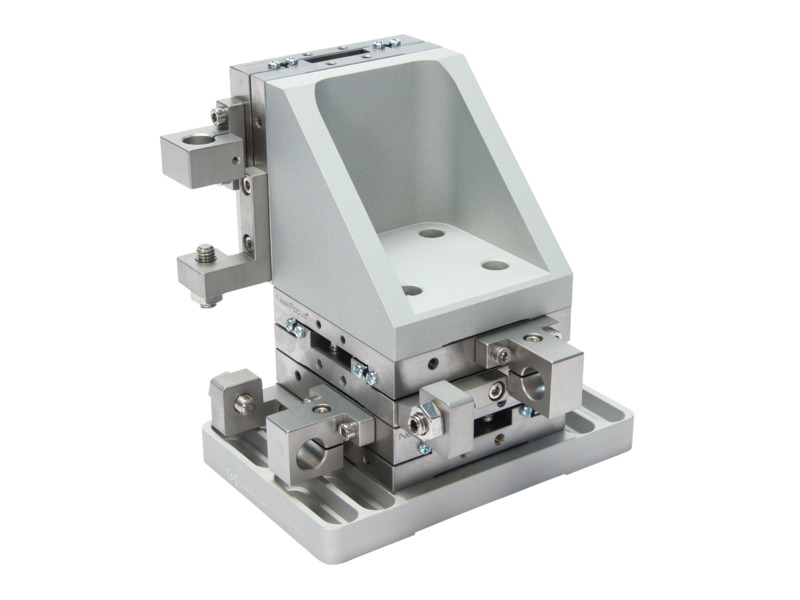

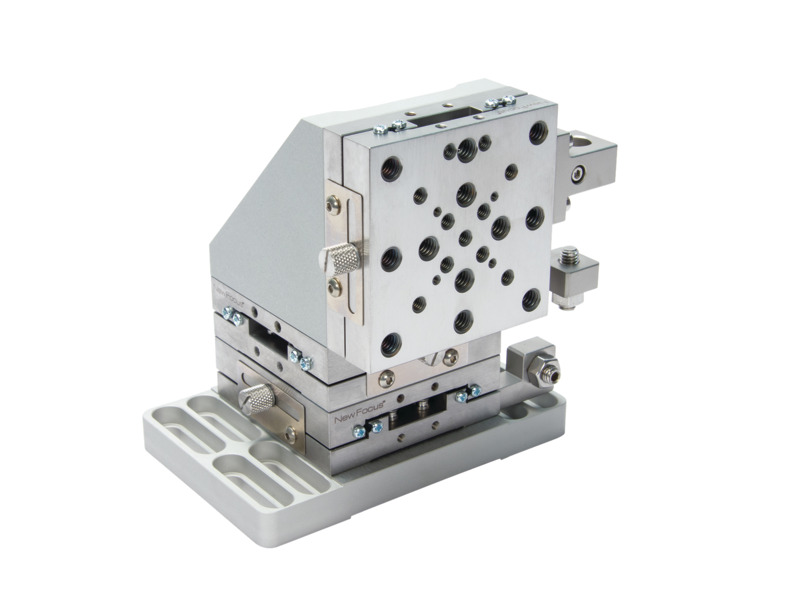

The 9063-XYZ-M Gothic-Arch XYZ Translation Stage uses stainless-steel construction and thumbscrew locks to offer the ultimate in stability and rigidity. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability over the 25.4 mm XYZ travel range. The 65 x 65 mm platform features M2, M4 and M6 mounting holes. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. These stages are compatible with our goniometers and rotation stages.
9063-XY-MXY Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, M4 and M6
METRIC
In Stock
$1,144.00
Compatible
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
9063-A-MAngle Bracket, 9063-M Series Stages, XZ and XYZ Configurations
METRIC
In Stock
$95.00
9063-B-MBaseplate, 9063-M Series Stages, M2, M4 & M6
METRIC
In Stock
$97.00
M-UP-1AMounting Plate, Universal, 65 mm x 65 mm x 12.7 mm, M6 Thread, Metric
METRIC
In Stock
$58.00
M-B-2BAdaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage
METRIC
In Stock
$48.00
9356Micrometer, 1.0 in. Travel, Unthreaded, For 9063 Series Stages
UNIVERSAL
In Stock
$126.00
9369Adjustment Screw, Knob, Braked, 25.4 mm Travel, Ball Tip, 1/4-100
UNIVERSAL
In Stock
$50.00
DM-25LLockable Differential Micrometer, 25 mm Coarse, 0.2 mm Fine,11 lb. Load
UNIVERSAL
In Stock
$764.00
Frequently Purchased Together
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
9356Micrometer, 1.0 in. Travel, Unthreaded, For 9063 Series Stages
UNIVERSAL
In Stock
$126.00
9355Micrometer, 0.5 in. Travel, Unthreaded, For 9062 Series Stages
UNIVERSAL
In Stock
$137.00
