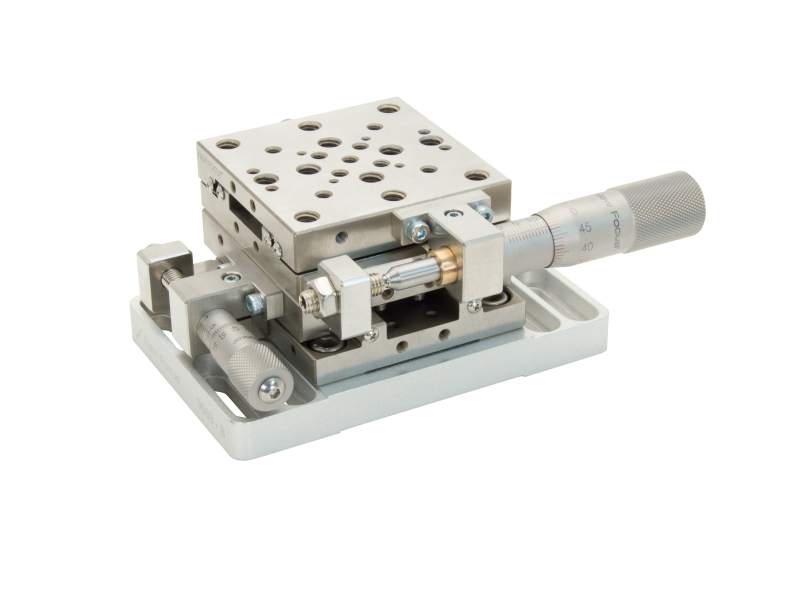

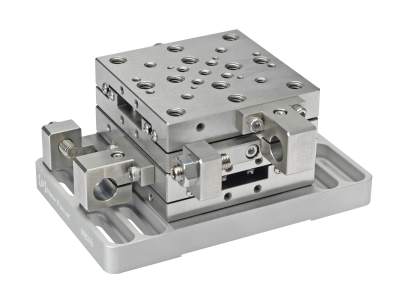

XY Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, M4 and M6
The 9063-XY-M Gothic-Arch XY Translation Stage uses stainless-steel construction and thumbscrew locks to offer the ultimate in stability and rigidity. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability over the 25.4 mm X and Y travel range. The 65 x 65 mm platform features M2, M4 and M6 threaded mounting holes. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. These stages are compatible with our goniometers and rotation stages.
Resources & Downloads
2D Product Drawings
9063-XY (M) - Drawing(100.9 kB, PDF)
Other
9063-XY-M RoHS 2023(214.7 kB, PDF)
