Inner Bracket, Compatible with UMR12 and UTR120 Stages, Metric
Inner Bracket, Compatible with UMR12 and UTR120 Stages, Metric
Model: M-EQ120-I
Product Series Overview

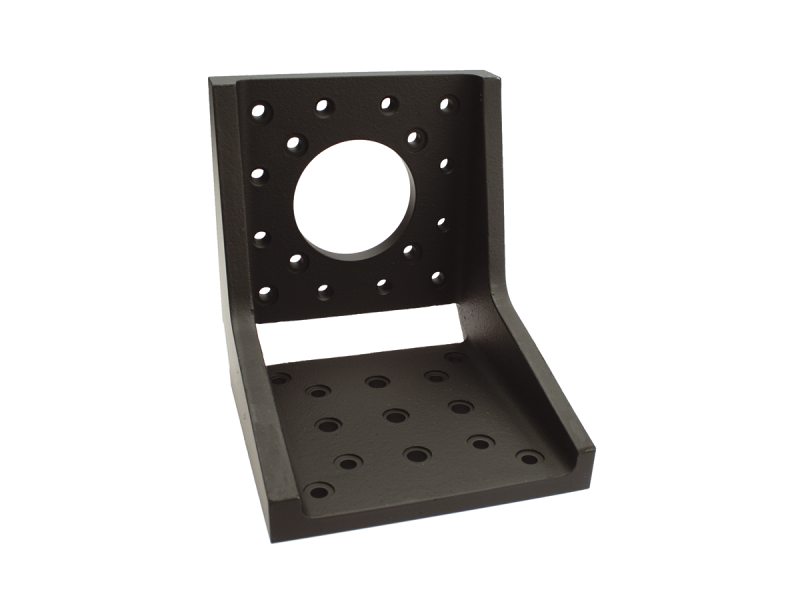

EQ Manual Stage 90 Degree Angle BracketsThe M-EQ120-I Metric Inner Right Angle Bracket is compatible with UMR12 and UTR120 stages. With EQ Series Angle Brackets, multi-axis positioners can be assembled from two or more standard UMR and/or UTR Series positioners. Individual positioners assembled with mounting brackets give you a greater range of positioning versatility with fewer total components. Because components and brackets can be reused in different configurations to meet your changing needs, modular multi-axis systems are a great way to get the most value from your equipment.
Resources & Downloads
2D Product Drawings
M-EQ120-I.pdf(416.2 kB, PDF)
Other
M-EQ120-I RoHS Certificate(277.9 kB, PDF)
