Angle Bracket, 90 Degree, Closed Corner, UMR3 Stages, EQ3.02

EQ Manual Stage 90 Degree Angle Brackets

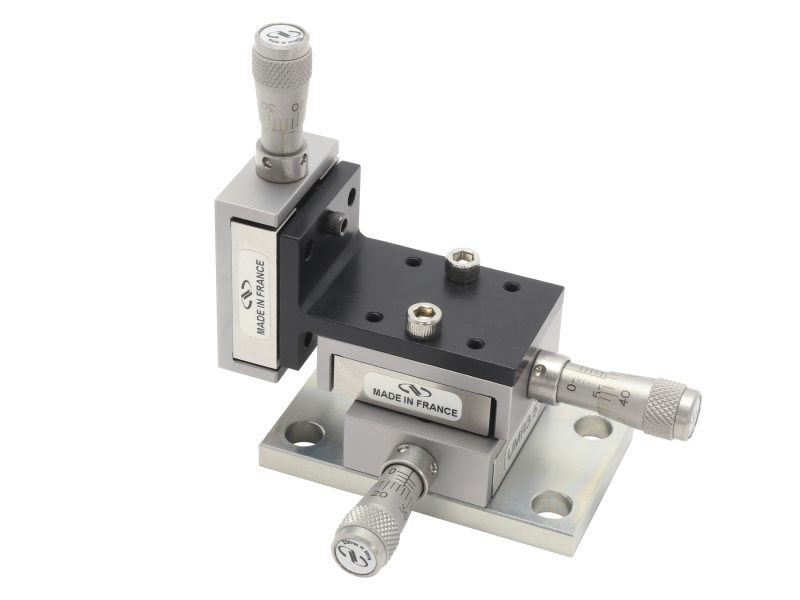

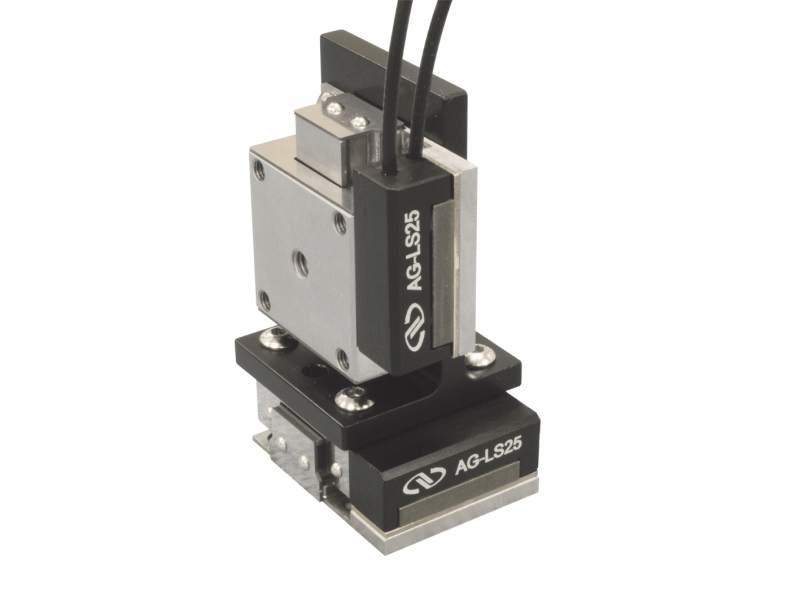

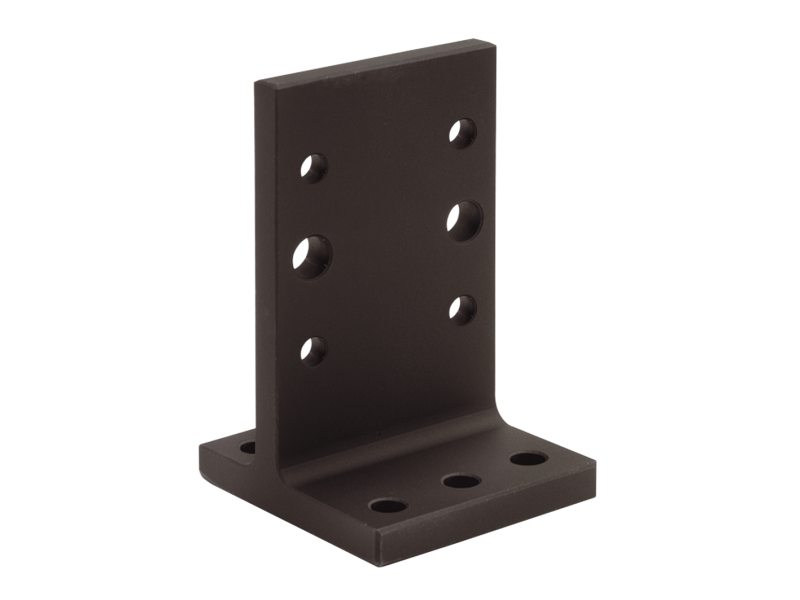

The 339233 EQ3.02 Closed Corner 90 Degree Angle Bracket can be used to assemble YZ and XYZ positioners using UMR3 High Load, Double-Row Ball Bearing Steel Linear Stages or AG-LS25 Agilis™ Piezo Motor Driven Linear Stages.

Specifications

Technical Specs

Type
90° Closed Corner Angle Bracket
Material
Anodized Aluminum
Use
UMR3 Stages

Type
90° Closed Corner Angle Bracket
Material
Anodized Aluminum
Use
UMR3 Stages
