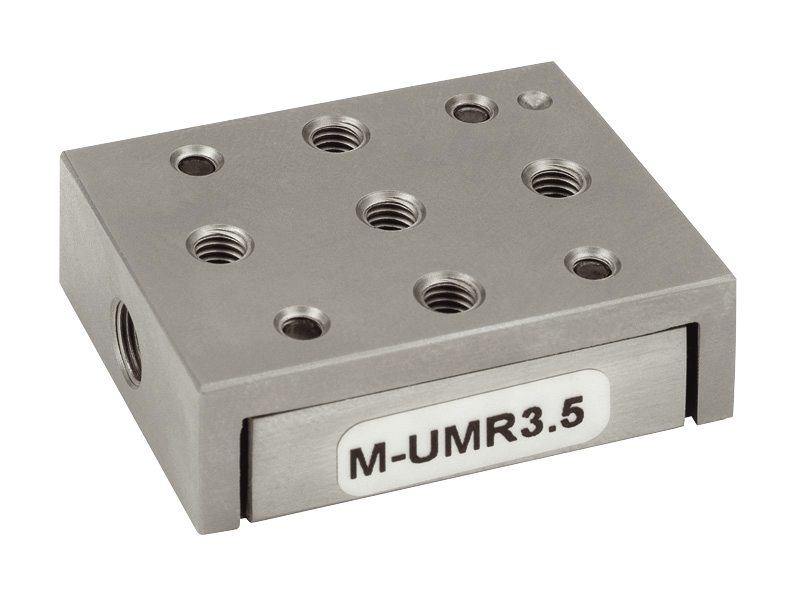

Linear Stage, Double-Row Ball Bearing, 5 mm Travel, M4

Technical Specs

  • Axes of Travel
    X
  • Maximum Stage Travel
    5 mm
  • Thread Type
    M4
  • Load Capacity
    600 N
  • Vertical Load Capacity
    40 N
  • Angular Deviation
    <100 μrad
  • Material
    Steel
  • Bearings
    Double-Row Ball Bearings
  • Drive Location
    Center drive
  • Platform Size
    29 x 38.5 mm
  • Height
    13 mm
  • Recommended BM Micrometer
  • Recommended DM Differential Micrometer
  • Travel Requirement
    Less Than 12.7 mm
